UV Drying & 10K RPM Programmable Spin Coater for 3 wafer Max. - VTC100B-UV

MTI

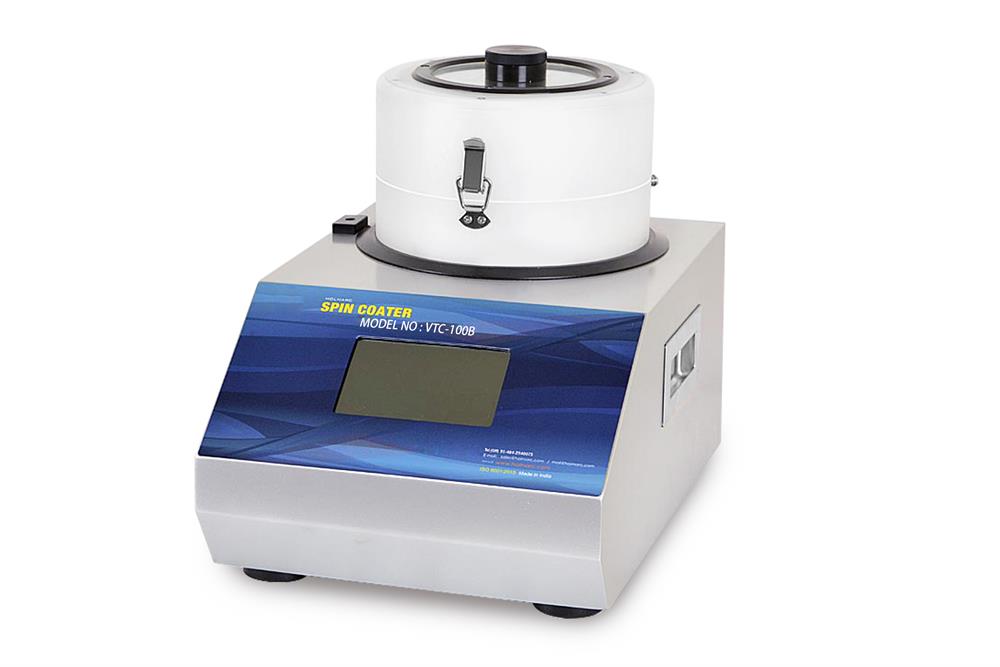

VTC-100B-UV has a touchscreen display Readout tabletop spin coating device dedicated to spin coat small substrates between 30 mm to 70 mm. UV LED curing system is used whenever there is a need for curing and drying of coatings. It also provides gases purge facility for an additional supply of gases inside the chamber. Vacuum Chucks provide flat, rigid surfaces for mounting substrates of different sizes and shapes. A vacuum chuck powered by an oil-less vacuum pump holds the substrate at the spinning head. The syringe holder height can be adjusted and rotated freely along the support rod. All required safety measures are provided for high-speed rotation and spillage. It also provides a facility for drainage.

SPECIFICATIONS:

Structure	Nylon chamber for anti-corrosive operation. One gas inlet port on top of the cover can fill inert gas or pull the vacuum during the coating One oil-less vacuum pump is integrated into the spin coater.
Input Power	AC 110V or 220V, 50Hz, single phase Please select the voltage on the options bar
Vacuum Chuck & Vacuum pump	Nylon anti-corrosive vacuum chucks for holding substrate up to 70mm diameter. 3 Vacuum chucks are provided, O-ring sizes OD: 14mm, 22mm and 35mm. Substrate Diameter: 30 - 70mm Vacuum port size: 8mm
Actuator	Brushless DC motor
Touch Panel with Digital Control	60 ~ 9999 rpm spinning speed programmable Duration up to 99hours Acceleration: 5 - 2000 rpm/sec Accuracy: < 5% Maximum no of steps: 10 Can store up to 9 programs
UV Curing Option by LED -Wavelength	365 nm UV lights are installed on the top of the cover.
Liquid Injecting	Standard Package:: 20ml plastic syringe with needle Option 1: Precision Electronic Single Channel Pipette: 20 - 200uL Option 2: Heatable glass syringe with temp. controller, up to 200C Injection Port size: 30mm
Gas Inlet	A 6mm diameter gas inlet port allows customers to fill desired gasses into the chamber, which can make coating under variable gas flow environment.
Product Dimensions	400 x 275 x 331 mm (L x W x H)
Weight	34 kg (75 lbs)
Compliance	CE Certified NRTL certification is available upon request at extra cost ( Please notice us before ordering if you need NRTL )
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Operation Manual & Video
Warnings	Do not overflush the water bowl/base with any kind of liquid. Excess liquid will leak into the motor shaft and cause damage. Please use a fabric cloth to wipe out the residues that remain in the bow/base. If necessary, turn on the water outlet when flushing the water bowl/base to avoid liquid overflowing during the operation. For more details about the cleaning procedure, please review the cleaning instruction for the spin coaters.
