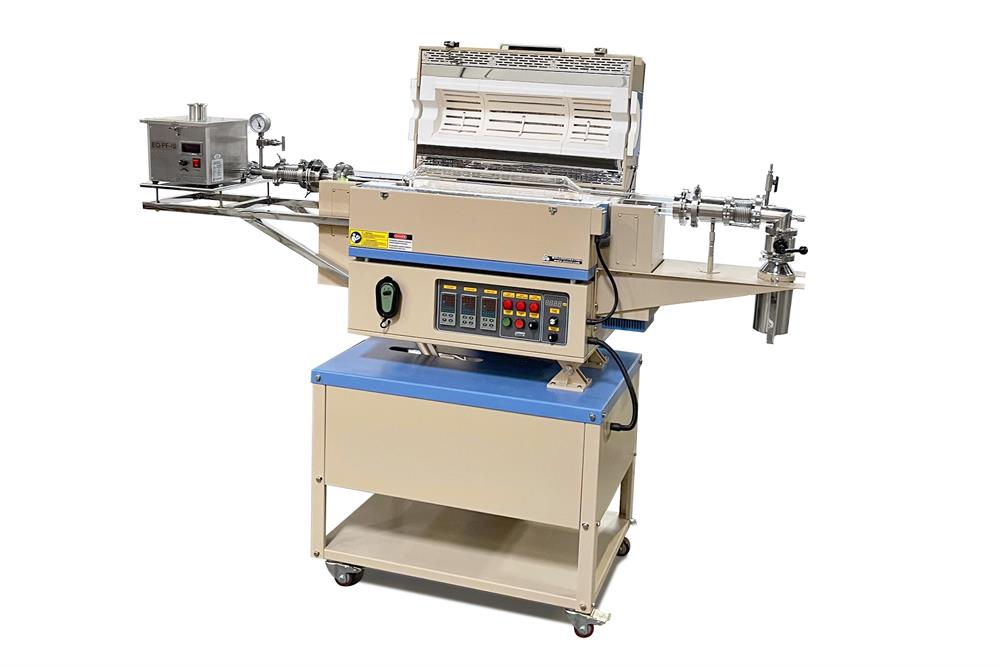

5" Rotary Tube Furnace up to 1200oC with Automatic Feeding & Receiving System - OTF1200XIIIR5-AF

• 4 KW Max

•  208 - 240V single phase (30 A Breaker required)

• Double shell casing with three cooling fans
• High purity Alumina fibrous insulation for max. energy efficiency
• DC Gear motor drives quartz tube with variable speed 0 - 10 RPM
• The furnace can be electrically tilted up to 30°
• The split cover enables faster cooling and easy operation.

• The automatic powder feeder is mounted on the tiltable furnace via a vacuum-sealed swivel assembly. (Pic 1)
• The proper connection ensures a uniform feeding rate and the tube rotation undisturbed under a controlled atmosphere. (Pic 2-3)
• The feed rate is adjustable by the potentiometer knob, 97cm^3/min max.
• One stainless steel tank ( 1 Liter Capacity ) is installed on the other end of the processing tube to gather the fired powder without exposure to air.
• A furnace without an automatic feeding & receiving system is available, please select from the option bar. (Pic 5)

• Three zones: (600mm, 24" in total)
• Zone 1: 150 mm
• Zone 2: 300mm
• Zone 3: 150 mm
• Constant temperature zone: 450 mm within +/-2ºC if two zones are at the same temperature.

• Fused quartz tube (one is included)

• SS310 tube is available upon request at the extra cost for max working temp 900°C with a similar size
• Dimension: 130 mm O.D. x 124 mm I.D. x 1200 mm L + 60 OD mm at flanges.
• Tumbling volume: 5310 ml

 Four Mixing Blades  Dimensions

• One pair of 60mm SS sealing flange with needle valves and a rotatable gas connector is included
• 60 mm OD straight quartz tube is available to use use it as a conventional tube furnace.

 Temperature Control

• Max. Working Temperature: 1100°C continuous, 1200°C Max for < 1 hour

• Temperature Controllers:
• Three PID digital temperature controllers with 30 programmable segments
• RS485 port is built-in to connect a PC for remote control
• Temperature Uniformity: +/- 1°C in the heating Zone
• Three Omega K type 3mm OD x 6" L are included
• The touchscreen control panel is available upon request at the extra cost ( ~$600 ), see Pic. left

• Brand new laptop with Microsoft Windows 10 or 11 for immediate use.
• Labview-Based Temperature Control System (EQ-MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.
