1 5
MTI  |  SKU: MSKSFM9L5

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

5 Liter Four-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-9-5L

MTI

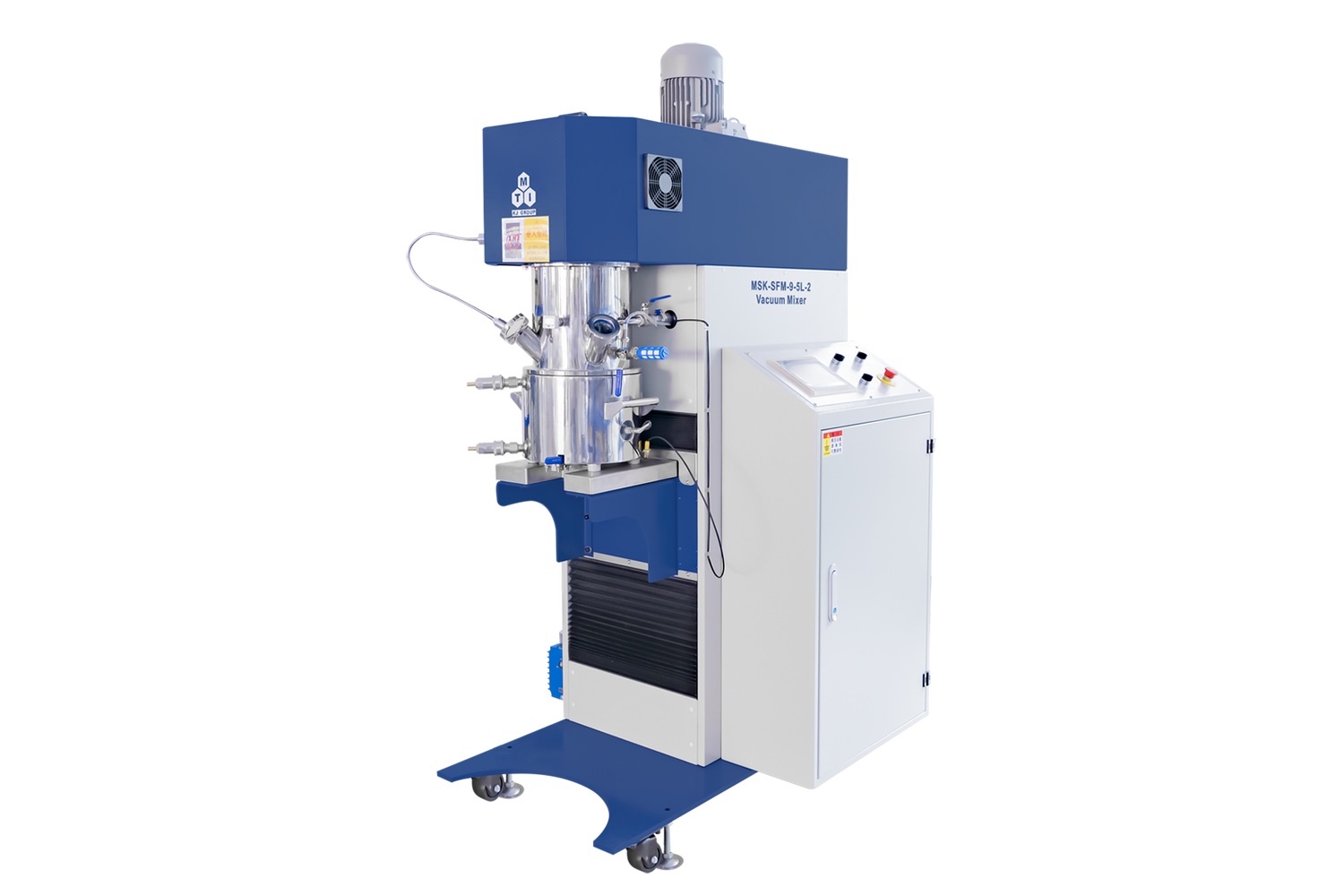

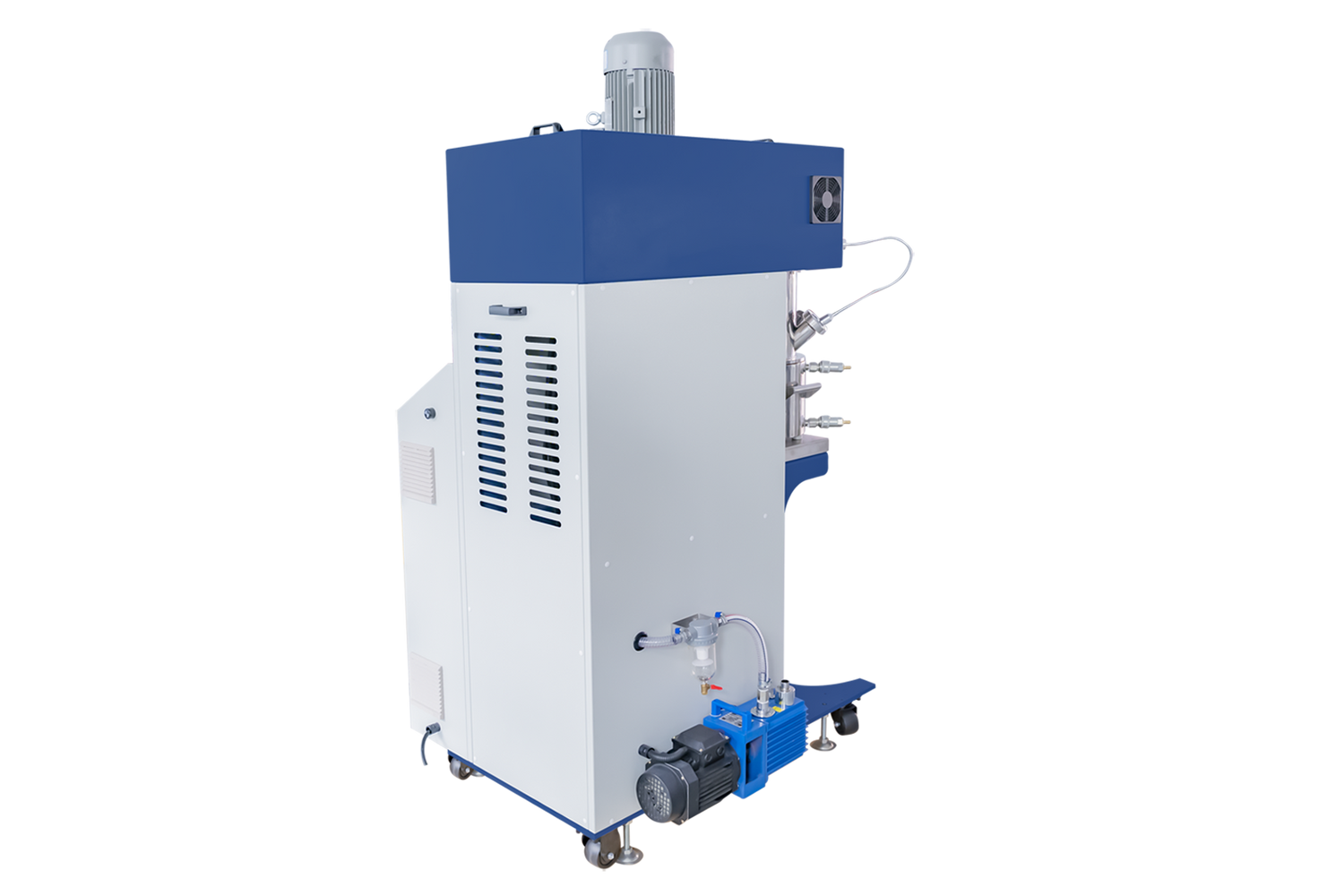

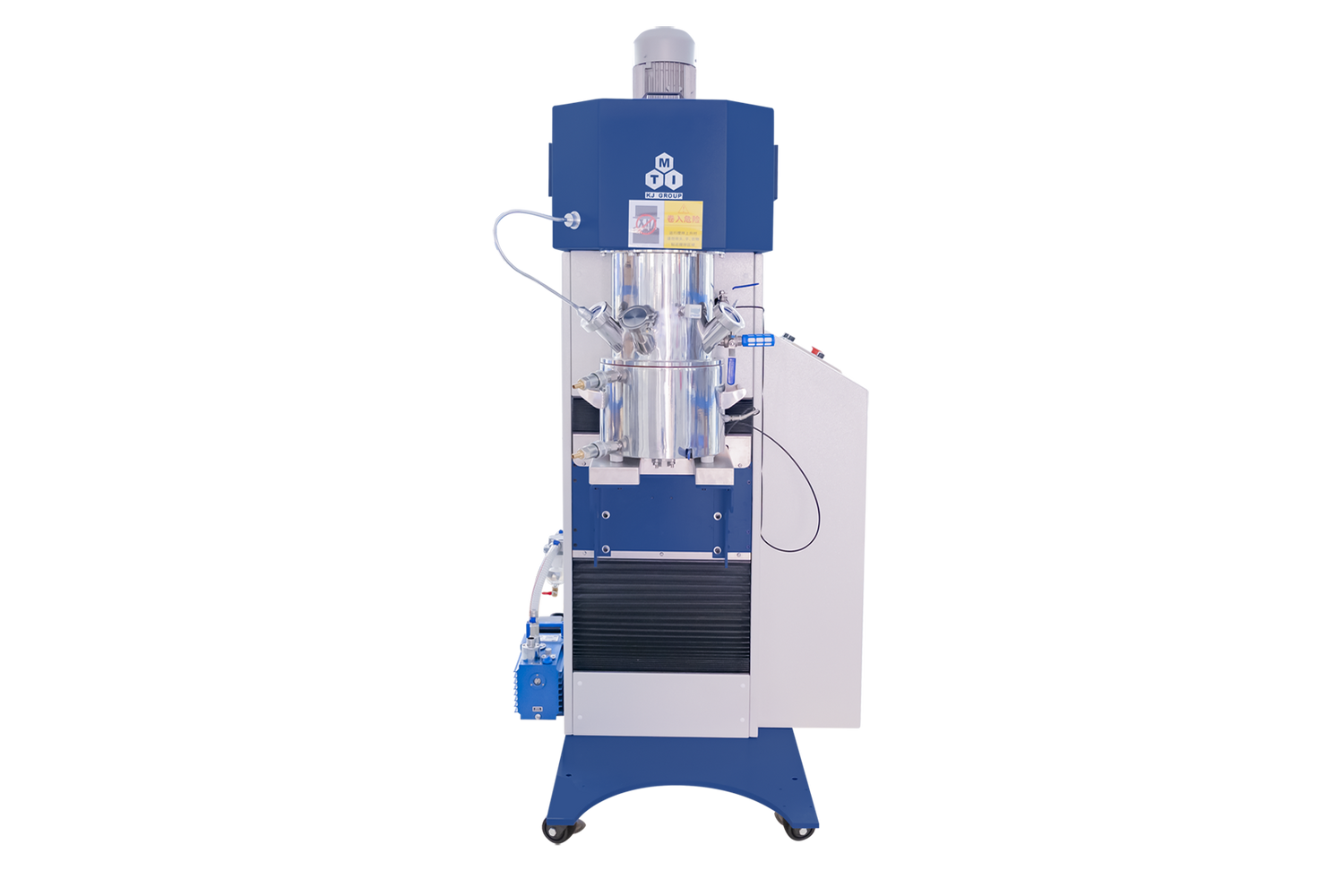

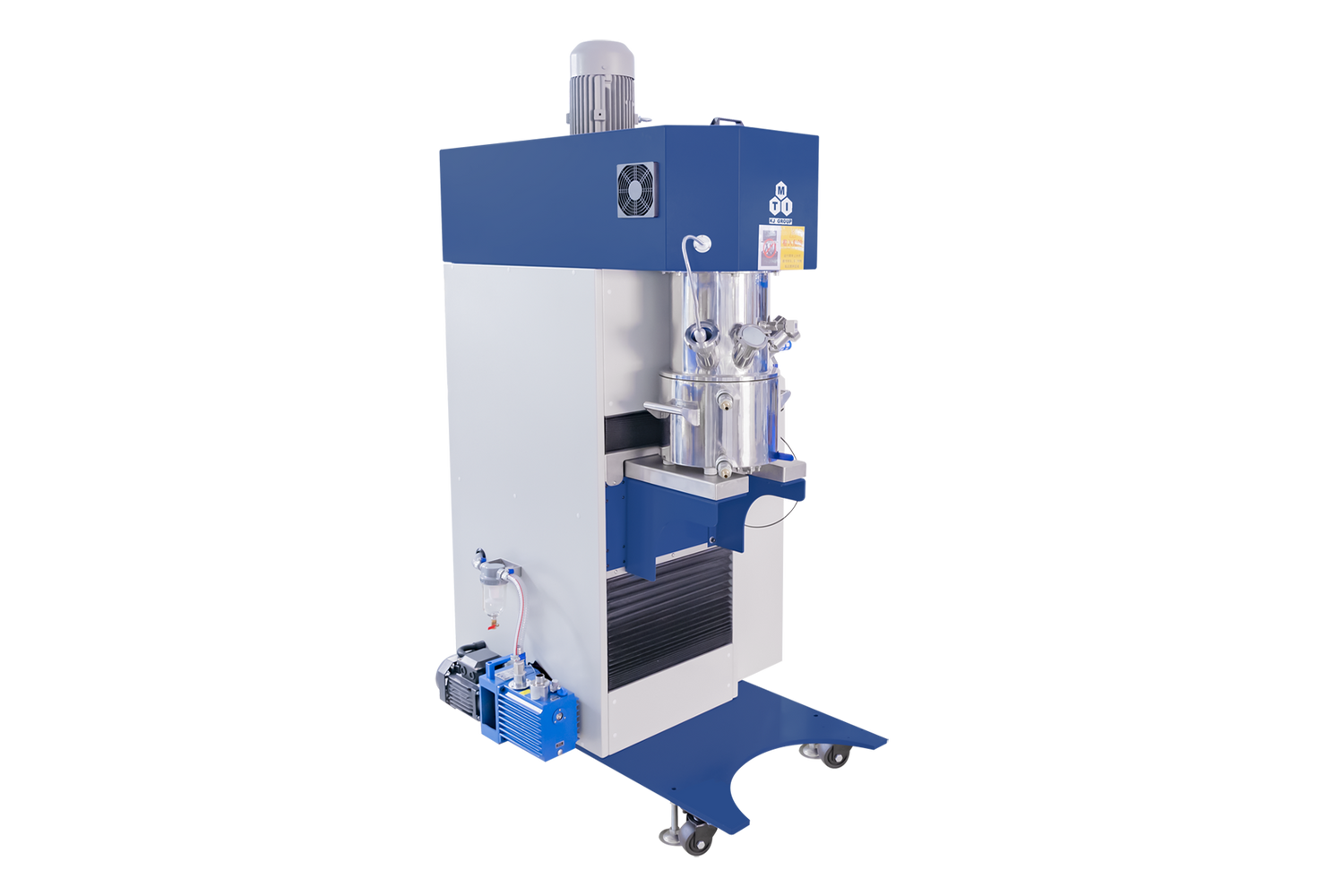

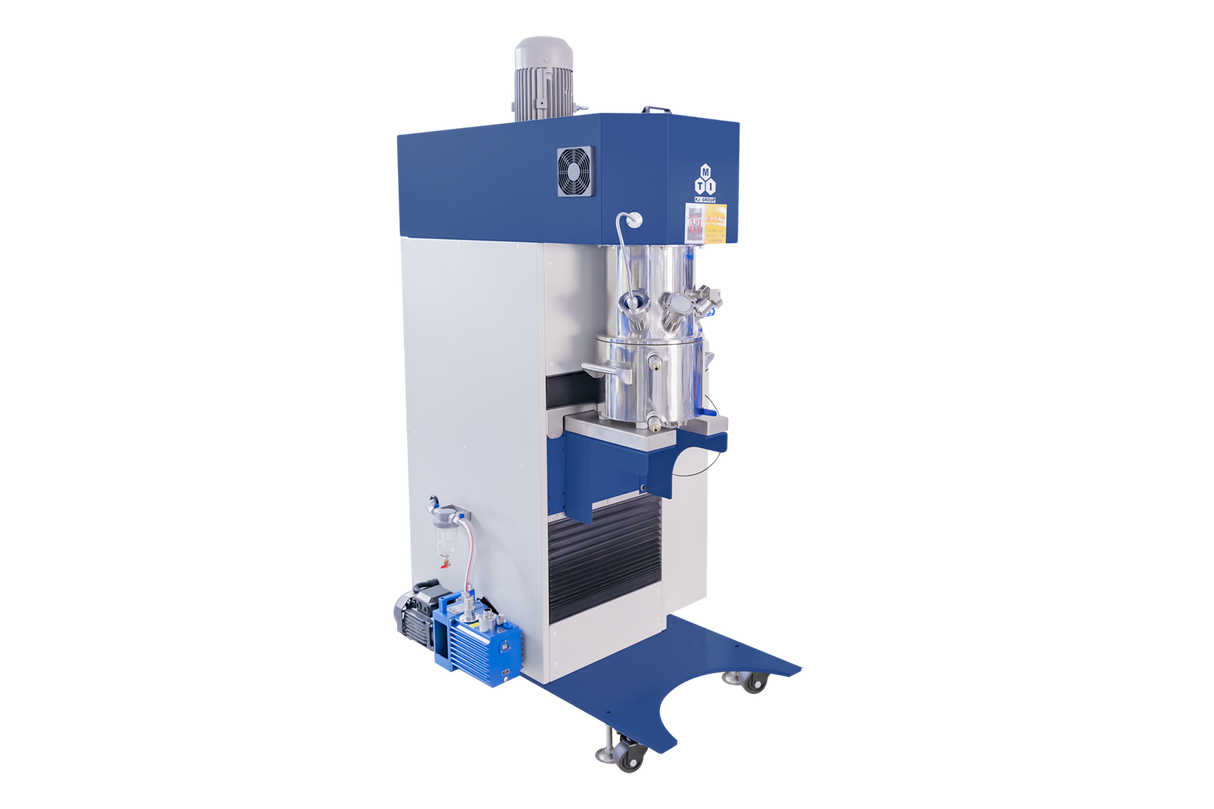

MSK-SFM-9-5L is a Four-shaft (two dispersing, two stirring) planetary vacuum mixer with a 5-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique dual-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-9-5L is an excellent tool for preparing LiCoO3, LiFePO4, LiNCMO2, and ceramic slurries and provides much better results in dispersion and uniformity.

SPECIFICATIONS

Working Voltage
  • 208 - 240V AC, 50/60Hz, Single phase, 5 kW
Mixing Method/Blades
  • Rotation + Revolution
  • Dual Stirring Blades+ Dual Dispersing Blades + One Spatula
Speed
  • Stirring Seed: 2-112 rpm (suggested lower limit speed as 5 rpm)
  • Dispersing Speed: 0-6900 rpm (suggested lower limit speed as 100 rpm, please keep dispersing time less than 30 min in 6000-6900 rpm).
Slurry Viscosity
  •  Max. 100,000 mPa·s (cps)
Vacuum Rate
  • -0.098 Mpa (without slurry loading)
Mixing Tank
  • Total Volume: 8.0 Liter
  • Effective Capacity for Mixing: 5.0 Liter
  • Inner Diameter: 240mm
  • Inside Depth: 180mm
  • Material: SUS304
Mixing Blades
  • Two Stirring Blades
  • Two Dispersing Blades
  • One Spatula
  • Material: SS304

Vacuum Pump


Cooling Unit
Compliance
