Compact Three Rollers (Zirconia) Mill for High Viscosity Slurry, Paste - MSK-SFM-65

MSK-SFM-65 is a compactthree-rollmill, capableof homogenizing, grinding, or dispersing viscous slurry or paste. High viscosity slurry or paste can be quickly sheared, pressed and impacted down to idea thickness by extremely high centrifugal forces of rotating rolls.

The compact body permits the use in a limited space in the laboratory. Three rollers are made of zirconia, offering hard, smooth, and chemical resistant surfaces. Cooling water can be pumped into three rolls to remain the temperature of the roller surface, preventing the slurry or paste from oxidized while processing. Roller spacing is adjusted manually with a quick engagement mechanism by the use of four handwheels. Two additional handwheels are placed on the top, allowing to adjust the width of slurry or paste.

SPECIFICATIONS

Features	Three zirconia rollers, offering high hardness, good wear, and chemical resistance without contamination Efficient milling and dispersing of highly viscous materials by the sheer force Compact design with easy operations Water cooling system for each roll
Input Power	Single Phase, AC 208 - 240V, 50/60 Hz Power: 750 W You may order 1500W transformer to use at 110VAC at an extra cost
Milling Operations	Three roll milling operation (See left picture) Roller speed: Left (Roll 1): 26 rpm Center roll (Roll 2): 70 rpm Right roll (Roll 3): 145 rpm Roller spacing: It is adjustable manually from 0 - 5 mm

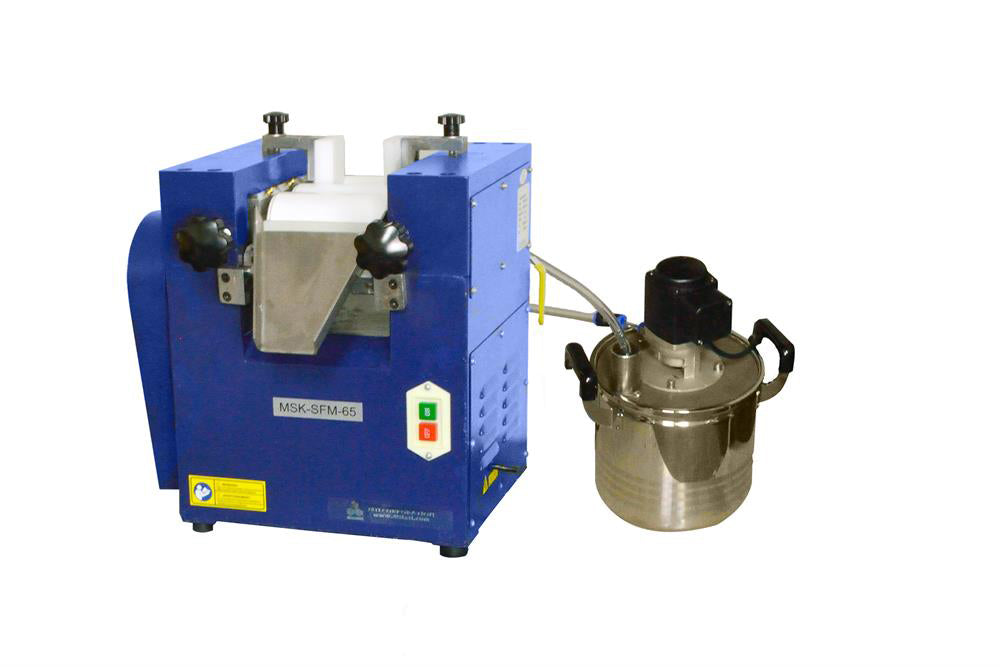

Milling Rolls	Roller material: zirconia rolls with a surface hardness of HSD 80 Roller length: 135 mm Roller diameter: 65 mm Material Feed Width: 65mm - 95mm Cooling: water cooling for each roll Heavy Duty Coolant Circulating Tank with Pump is included, 5 Liters stainless steel tank with 1" drain port and 1/4" outlet port You may choose a digital temp controlled recirculating water chiller (Pic. 2) for better performace.   Pic. 1 Pic. 2
Compliance	CE certified
