Scribner  |  SKU: 585BTS

585 Battery Test System

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

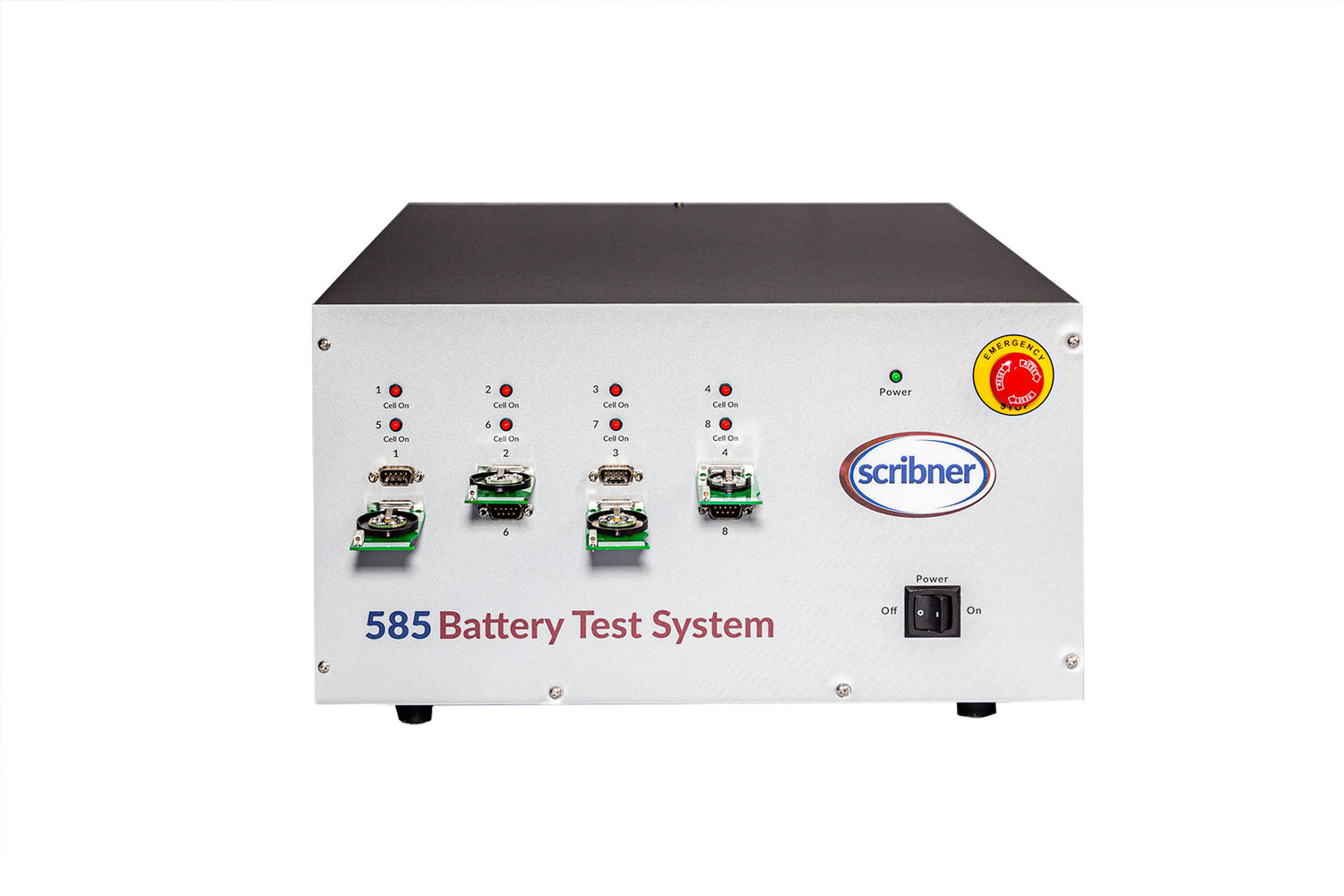

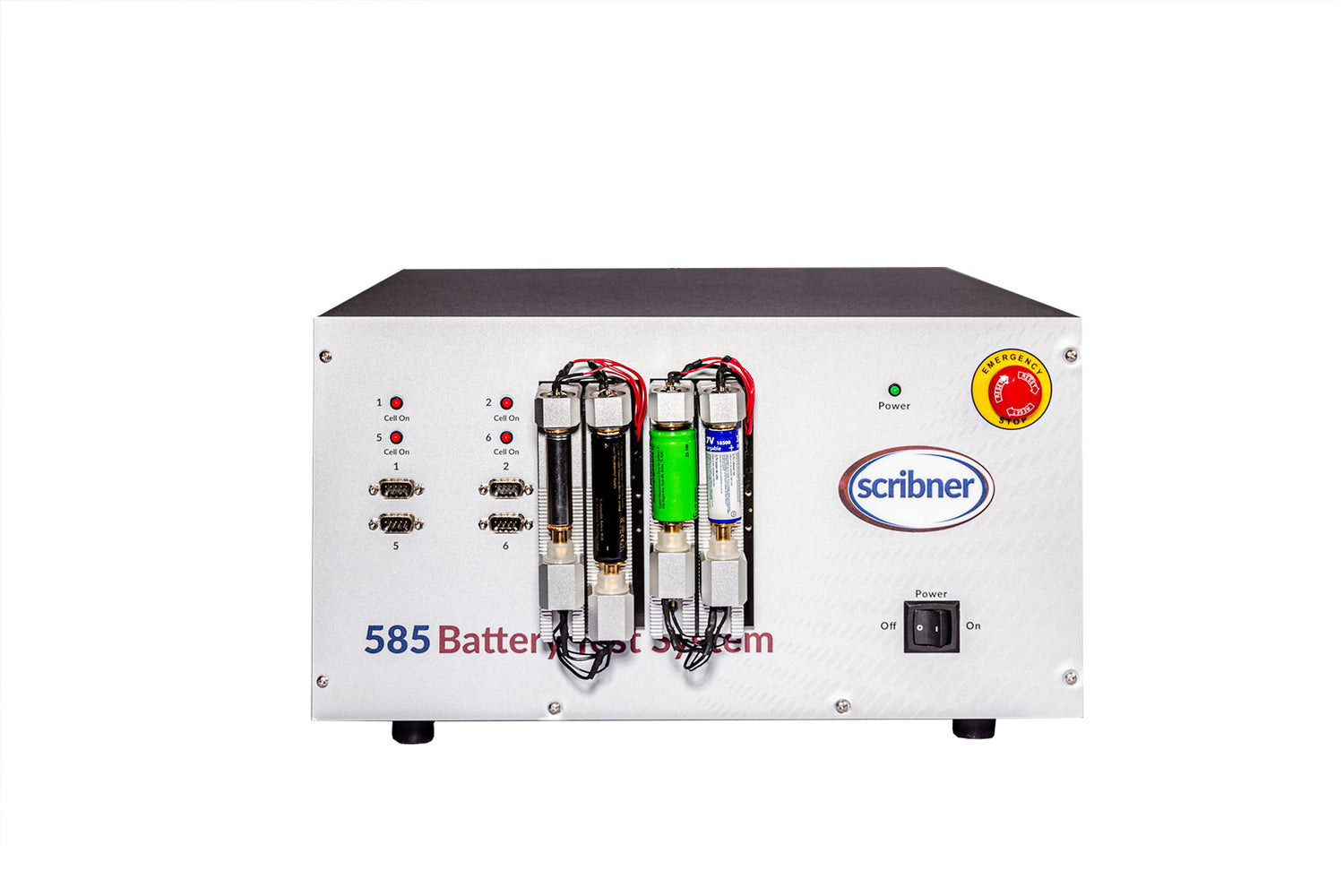

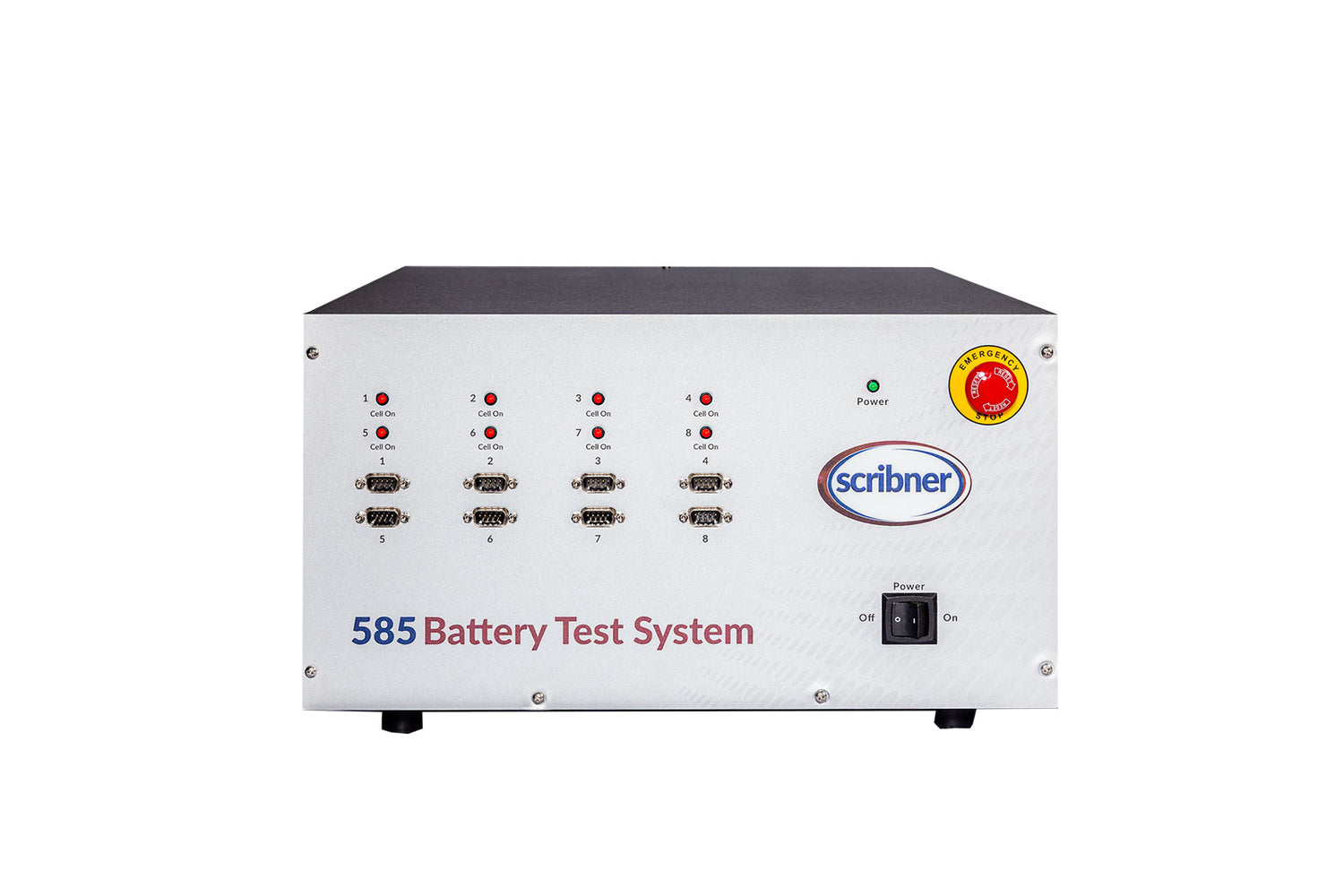

585 Battery Test System

Scribner

Our 585 Advanced 8 Channel Battery Cycler is an excellent choice for Battery testing and Supercapacitors. The 585 is suitable for small to medium size cells.

Our user friendly, flexible and powerful BCycle® and BView® software is included.



  • Each channel is an independent potentiostat/galvanostat
  • 6 current ranges – 5 A, 500 mA, 50 mA, 5 mA, 500 μA, 50 μA (Auto)
  • Gang Channels up to 20 A (2 channels)
  • 5 or 6 terminal measurement
  • Control modes: current, voltage, power
  • HFR for internal resistance
  • 100 pts/sec sample rate
  • BCycle® and BView® software – user-friendly, powerful, flexible
Specifications: Details
Set Voltage: -4 V to + 6 V
Compliance Voltage: -4 V to + 6 V
Maximum Current: ±5 A (8 channels); ±10 A (4 channels); ±20 A (2 channels}
Current Ranges: 5 A, 500 mA, 50 mA, 5 mA, 500 μA, 50 μA (Auto)
Mode: Constant Current, Voltage or Power (charge, discharge)
Control Accuracy:
Voltage Measurement and Data Acquisition:
Voltage: ±0.1% of Positive Full Scale (at 25 °C)
Current: ±0.2% of Full Scale of Range (at 25 °C)
Measurement Accuracy:
Voltage: ±0.05% of Positive Full Scale (at 25 °C)
Current: ±0.2% of Full Scale of Range (at 25°C)
Overload Tolerance:
Current: 110% of rating
Voltage: 110% of rating
Connection: 2, 3, 4, 5 or 6-wire (I+, I-, V+, V-, AUX+, AUX-)
Sampling Rate: Max. 100 Sample/s per channel (with one 585-unit per computer)
Impedance: 2 frequency HFR; user -defined frequencies(1 Hz to 1kHz)
Host Interface: USB, full-speed
Channels: 8, independent, not electrically isolated from each other or USB interface
Dimensions: 43 cm W x 22.5 cm H x 54 cm D (17 in. x 8.8 in. x 21.3 in.)
Weight: 20 kg (42 lbs.)
Environment: 5-35 °C
Power: 100-240 V, 50/60 Hz
