MTI  |  SKU: VBF-1100X-Q

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Fast Heating & Cooling Vacuum Sealed Furnace (1100°C 2" I.D.) - VBF-1100X-Q

MTI

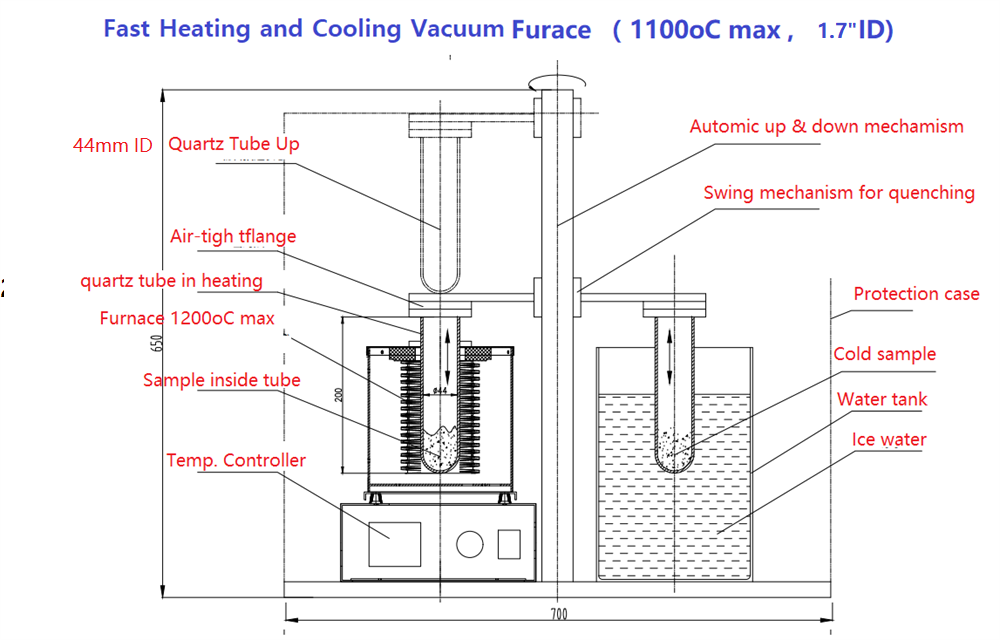

  VBF-1100X-Q is a 2" ID vacuum tube furnace with the function of fast heating and cooling ( optional water quenching ) for heat treatment of air-sensitive materials.   The sample will be placed inside half opened and vacuum-sealed tube,  then insert into the pre-heated furnace to achieve fast heating (~ 10oC/S ).  After treatment, the tube will be raised up automatically, then insert into an ice tank for quenching ( quickly cooling ).  This furnace was designed for LPS powder and can be used for quenching all material under vacuum or controlled atmosphere

SPECIFICATIONS

Power
  • Voltage: Single-phase 110 - 120 VAC / 50/60Hz, (20 A breaker installed)
  • 1500 W max.
  • Note: Power cable included but without the plug. Please install a plug on your own or click the link below the picture to choose a plug according to your country or your lab requirements


Working Temperature
  • <= 1100°C continuously
  • Max. 1200°C, < 30 minutes
  • Temperature Uniformity: +/- 2°C

Heating Chamber

  • The heating module is made of  Ni-Cr-Al resistance wire with a fibrous alumina insulating layer.
  • Quartz tube has a dimension of 50mm O.D. x 44 I.D. x 263 H, mm)
  • SS304 vacuum flange with KF25 Vac. port with valve and gas inlet &outlet valves
  • Quartz thermal block is included
  • Mechanical vacuum gauge is built-in
  • Vacuum level: 10-6 torr by turbopump and 10-3 by rotary pump  and 10-5 torr by a turbopump

Net Weight

100 kg

Shipping Weight

250 lbs

Shipping Volume

45"(L) x 28"(W) x 35"(H)


Warranty
  • One-year limited warranty with lifetime support (consumable parts such as processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below.).
  • ATTENTION: Any damages caused by the use of corrosive and acidic gasses are not under the coverage of MTI One Year Limited Warranty.

Compliance

  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.

    Warning


    Click here to learn the installation of a gas regulator
    • Tube furnaces with quartz tubes are designed for use under vacuum and at low-pressure < 0.2 bars
    • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation.
    • A maximum temperature of 1000°C should be imposed on all quartz tube furnaces to avoid the quartz tubes undergoing deformations under vacuum.
    • The flow rate for gasses should be limited to < 200 SCCM for reducing thermal shocks

    Optional

    The furnace can upgrade to 4 quartz tubes with rotating mechanism to achieve high throughput sintering
