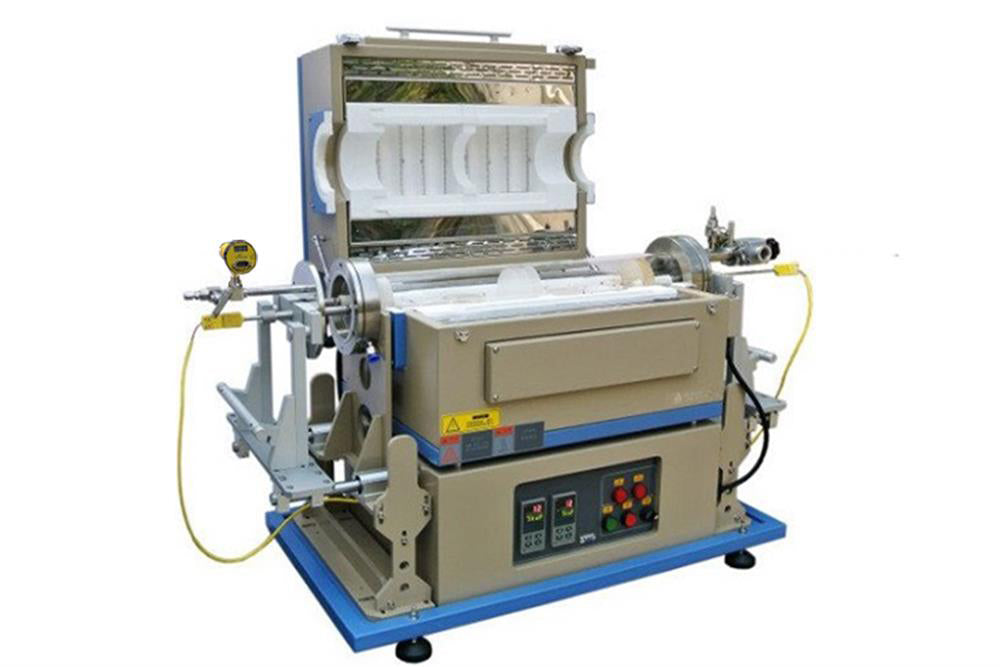

Two Zone IR-Heating RTP Tube Furnace (4'' ID ) with Sliding Sample Holders - OTF-1200X-IR-IISL

• Double-layer steel casing with air cooling keeps furnace surface temperature lower than 60°C.
• Heated by shortwave IR tube lamps for fast heating

• Two heating zones, 195 mm each, a total of 390 mm in length for HPCVD

• Two sliding sample holders for easy loading/retrieving samples or fast cooling under ambient conditions.
• A retractable bellow is an option for the flange assembly, which allows flash heating and fast cooling under inert environment (optional).
• Vacuum flanges and the digital vacuum gauge are installed for immediate use.

• AC 208-240V,  single-phase, 50/60 Hz
• MAX 24 kW, 100 A power supply required. (Max. peak experimental current: 78 A).

• 16 pcs 1.5 kW halogen heating tubes,  ( OD = 13.3 mm,  L= 390 mm )
• Standard working life: 2000 hrs.  ( depends on the heating rate )

• The halogen light tube is consumable.  Please click the picture left to order spare.

• ± 1°C

• RT ~ 800ºC: 50 ºC/s
• 800 ºC ~ 900 ºC: 10 ºC/s


• High purity fused quartz tube
• ?110 (OD) נ?106 (ID)נ740 (L) mm

• Dual sliding rails made of Cr plated steel
• Sliding rail length: 400 mm

Temperature Controller



• Two temperature controllers for controlling two zones independently via SCR
• PID automatic control with up to 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
• Built-in thermocouple broken protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• ± 1 ºC temperature accuracy for dwelling.
• RS485 Communications Port.
• PC Control:
• An MTS-02 control module is included for PC control on this furnace.
• The new version of PC module is now compatible with Lab View 05/08/2014
• A laptop PC can be ordered for $500 together with the furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information please click here


Vacuum Flanges

• SS water-cooled flanges on both sides.
• Left flange:
                     1/4" thermocouple feedthrough
                     1/4'' tube fitting

• Right flange:
                     KF 25 port with a right angle gate valve for vacuum pump
                     Needle valve with barb fitting as a venting port
• A digital vacuum gauge is included
• Retractable bellow design is optional on the left flange, which allows sample flash heating or retrieving for fast cooling under inert gas.

Vacuum Level

•  Limited by the vacuum pump
• 10^-2 torr can be achieved by the mechanical pump
• 10^-4 torr can be reached by molecular pump
• The pump is not included. ( please click the picture below to order )

Water Chiller  (optional)

• Cooling water is required for the flange set.
• Please make sure the flow rate of cooling water is ? 10L/min, water temp. < 25ºC; pressure > 25 PSI.
• We suggest EQ-KJ5000 Series recirculating water chiller as a cooling system (please order separately at related products below).

Dimensions

Net Weight

• ~180 Kg

Shipping Weight

• 500 lbs

Warranty

• One year limited manufacturer's warranty (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order replacements at related products below).


Laptop, software & WiFi Control (Optional)

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
• Labview Based Temperature Control System (EQ-MTS01) enables the user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
• A wireless remote control provides up to 300 meters of operating range.
• The features above are available upon request at an extra cost (up to $1,000). Please contact us for more information.
• Note:  The software is only compatible with MTI’s Yudian Temperature Controller

•
