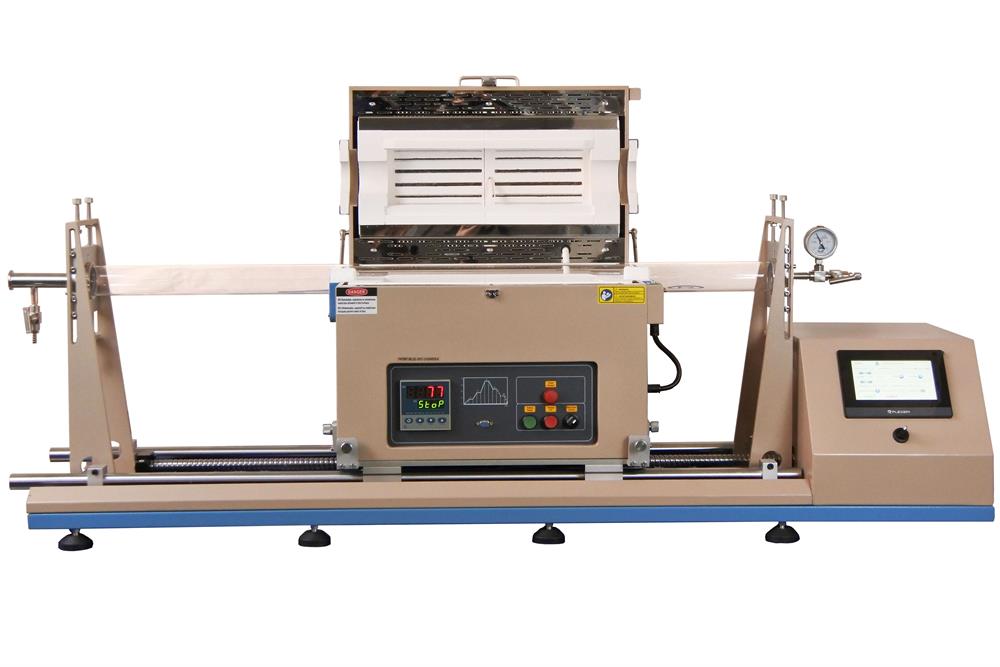

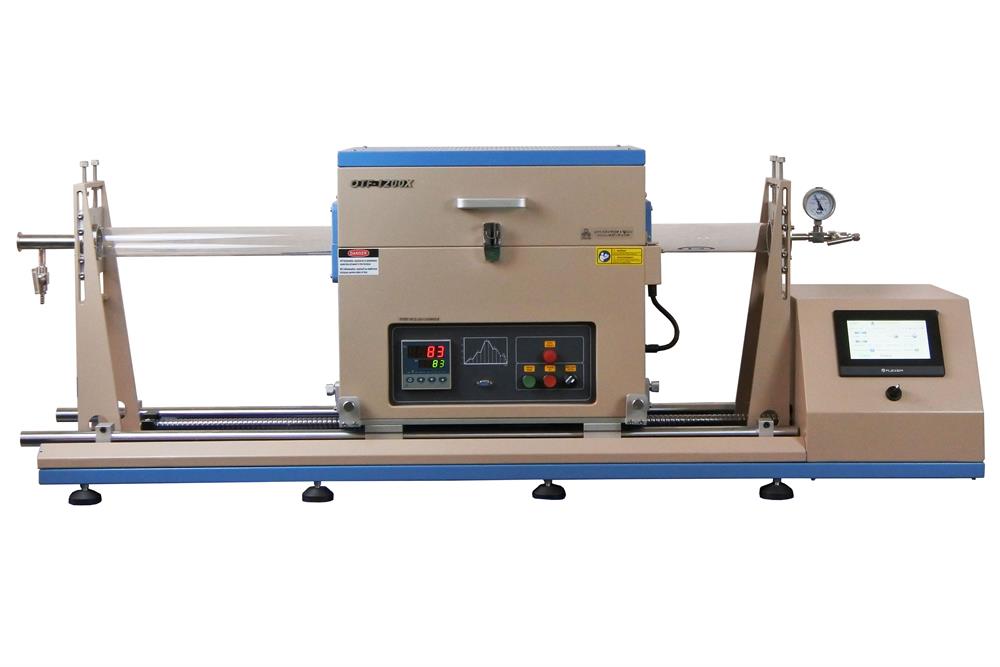

1200°C Sliding Tube Furnace(100mm OD) for Rapidly Thermal Processing - OTF-1200X-100-EDSL

Power

• AC 208-240V Single Phase, 50/60 Hz
• 3 kW

Heating

• Maximum:1200< 0.5 hrs
• Continuous Working: 1100 or less
• Recommended heating rate ?10/min

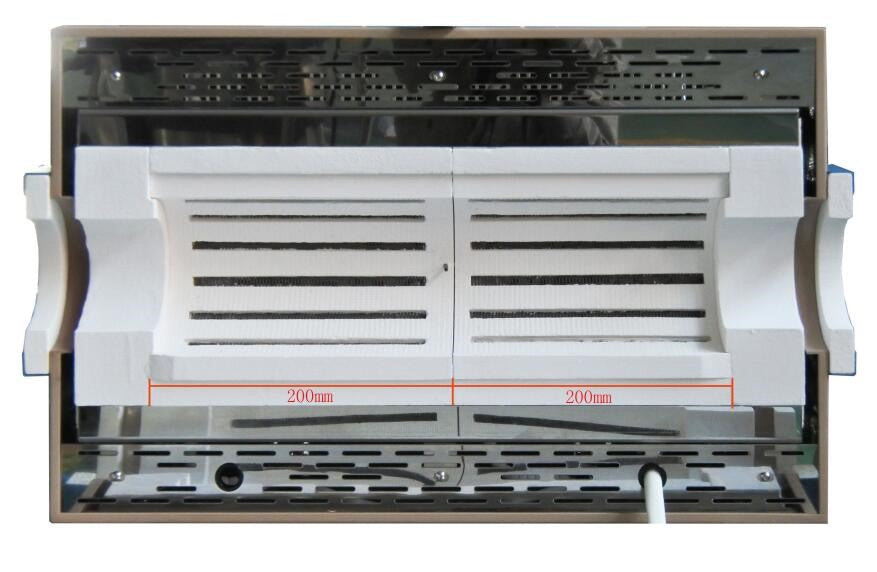

• Heating zone length: 400mm

•  K-type

Specs

• Slide distance: 400mm (can be customized at extra cost)
• Adjustable speed range: 10-100mm/s (can be customized at extra cost) and can also be set to move back and forth
• The heating will automatically slide to the far right from the far left according to the temperature program after reaching a certain temperature
• The maximum heating rate for the left sample area: 3/s
• Rapid cooling rate for samples inside the furnace: 3/s (500-100), 0.7/s (500-200)

Temperature Controller

• Two PID automatic controllers with 50 programmable segments for control of heating  & cooling rate, and dwell time.
• Built-in overheating & thermocouple broken protection.
• +/- 1 ºC temperature accuracy.
• DB9 PC Communications Port.
• PC Control:
• An MTS-02 control module is included for PC control on this furnace.
• A laptop PC can be ordered for $500 together with the furnace. We recommend ordering a computer (laptop) from us to avoid software installation problems as we will perform installation and testing before shipping. For more information please click here.

Vacuum Flanges

• One set of stainless steel sealed flanges
• The flanges and quartz tube are sealed with O-rings, pressure rings, and O-rings, and tightened by threaded compression to ensure sealing
• The left flange has a KF25 vacuum interface, needle valve, and barb venting port
• The right flange has a needle valve, G1/4 air inlet, and mechanical pressure gauge.

• 25 O.D x 19 I.D x 1400 L (mm)
• 50 O.D x 44 I.D x 1400 L (mm)
• 60 O.D x 55 I.D x 1400 L (mm)
• 80 O.D x 75 I.D x 1400 L (mm)
• 100 O.D x 95 I.D x 1400 L (mm)

Vacuum Level

•  Limited by a vacuum pump
• 10^-2 torr can be achieved by a mechanical pump
• 10^-5 torr can be reached by a molecular pump
•      The vacuum pump is not included, please order separately

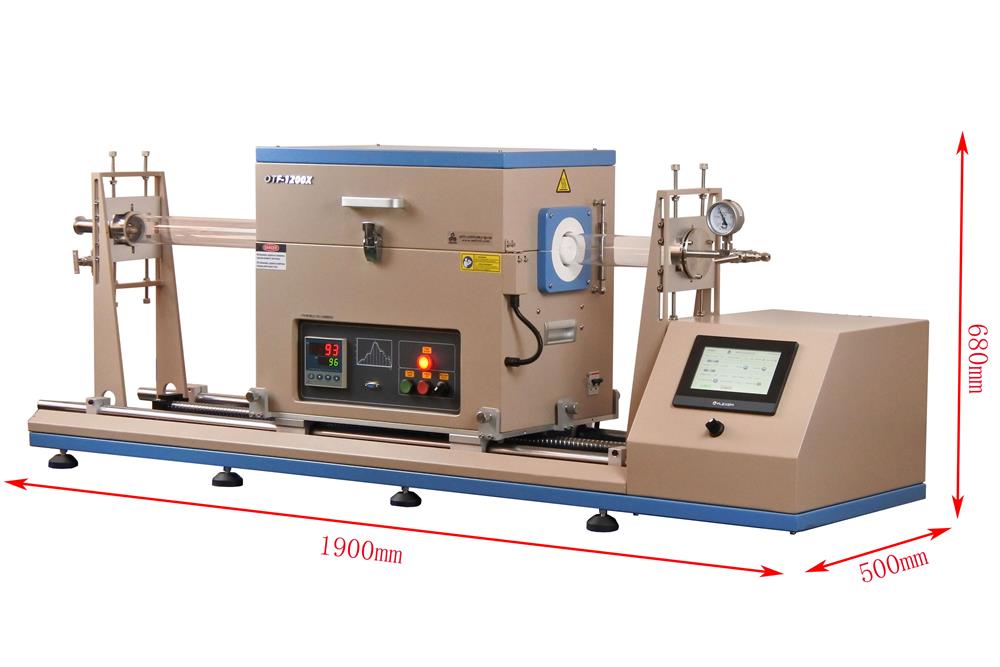

Dimensions

• 1900 * 500 * 680mm

Net Weight

~ 210 Kg

Warranty

One-year limited manufacturer's warranty (Consumable parts such as processing tubes, o-rings and heating elements are not covered by the warranty, please order replacements at related products below).

Compliance

• CE Certified
• NRTL certification(UL61010) or CSA certification is available at extra cost.


Application Notes

• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.12 MPa
• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
•  Vacuum pressures may only be safely used up to 1000°C
