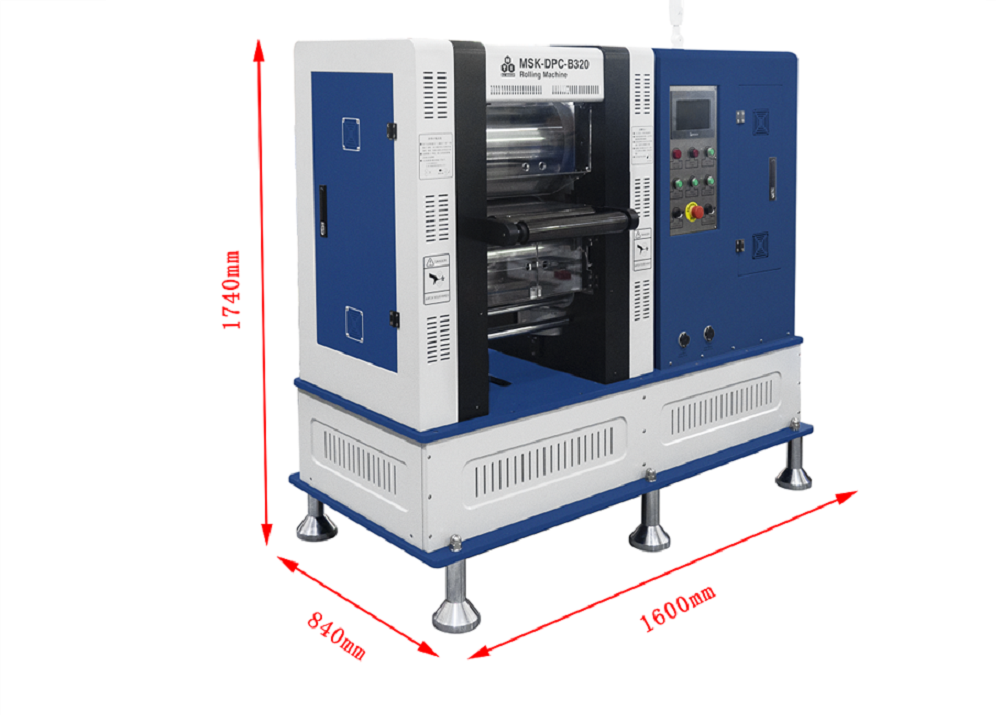

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

Working Voltage

• AC 220V or 380V 50/60 Hz Three Phase
• Max. Power Consumption: 6 KW

Rollers (one pair)

• Dimensions: 320mm Diameter x 370mm Width
• Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70
• Hardening material layer thickness: 10 mm
• Effective Rolling Width: <= 350 mm
• Max. Diameter of delivering and winding: 320 mm
• Max. Force: 100 T

• 0 - 2 mm adjustable
• Tolerance: 0.001 mm

• 0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel

Press Flatness

• Thickness Accuracy: ± 0.0025mm
• Surface Roughness: < Ra 0.4

Pressure Control

• Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel
• Real-time pressure display with data saved function

Accessories Included

• Rolling to Roller cleaning function is built-in
• Edge cutting device included
• Dust Removing device installed
• Roller installation and unload cart included

Roll to Roll Device (Optional)

• Roll to Roll Feeding and Collecting is available as option
• Maximum Roller Width: 350 mm
• Feeding and Collecting Roller Diameter: 250 mm
• Tension Control: Maximum 50 N

Utility and Environment

• Compressed air: 0.5~0.8 Mpa (Air compressor is not included)
• Environment Temperature: 25 ± 3
• Environment Humidity: 0~90RH

Compliance

Application Notes

• It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
