Dual-Filtration System for NMP Vapor of Li-ion Battery Coating - MSK-NMP-1

MTI

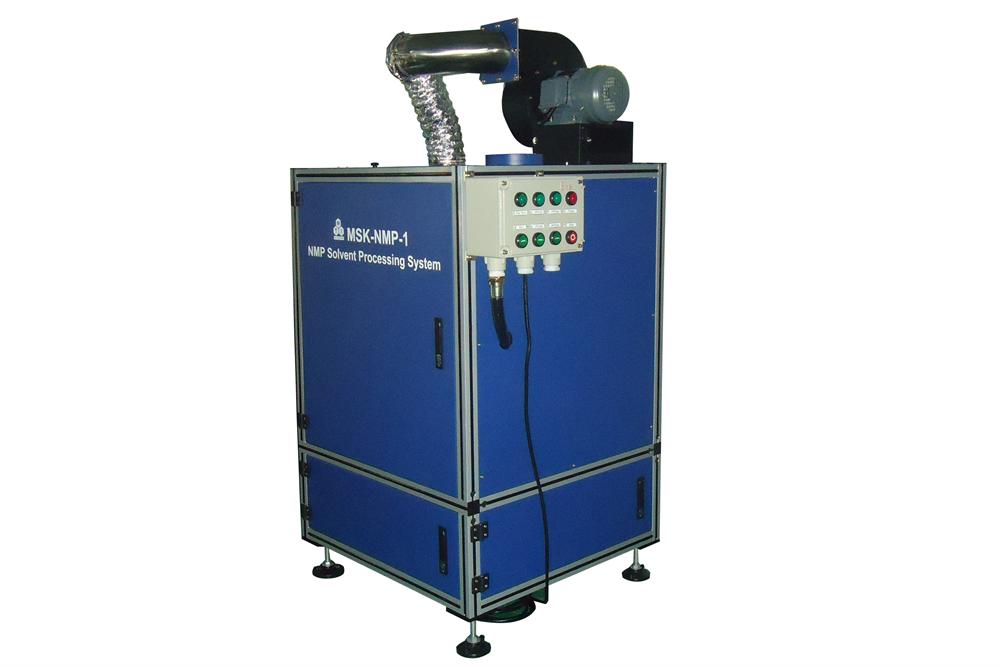

MSK-NMP-1 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor Recycling of Battery Cathode Coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D.

For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form.

SPECIFICATIONS

Structure SS 304

Features
  • Dual-filtration mechanism: The fan takes the NMP vapor to the first upper water bath and part of NMP vapor was absorbed and dissovled in the water bath. Then the NMP vapor go through the down chamber and enter into the second water bath for further absorption.

Working Voltage
 AC220V, single phase, 50/60Hz (AC380V, three-phase is available upon reqest)
Power 2 KW
Processing Method Water bath type absorption
Processing Capacity  600 m3/h
Water Bath Volume Max. 90 L
Water Fall Area ? 1400 mm2
Working Temperature
 0-40?
Gas Inlet Temperature ?150?
Water Pump Rate 17 L/min
Centrifuge Fan Volume: 2600 m3//h,  Pressure: 1400 Pa,  Power: 1.5 kW
Connection Ports Inlet and outlet connection port size: ? 120 mm, externally connect with 5" aluminum tubing.
Recycle Rate 90%-95%
Compliance CE Certified
