1700C Max. Vacuum and Atmosphere Controlled Quenching Tube Furnace (60mm) - GSL-1700X-60-VTQ

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1700C Max. Vacuum and Atmosphere Controlled Quenching Tube Furnace (60mm) - GSL-1700X-60-VTQ

MTI

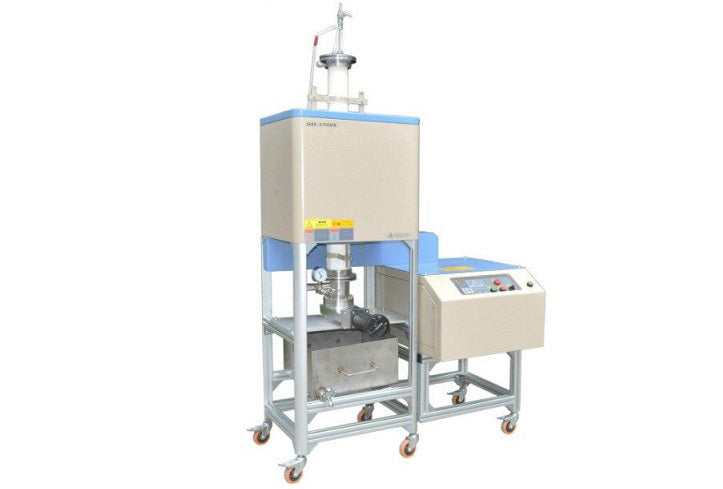

GSL-1700X-60-VTQ is a UL standard  Vertical Quenching Tube Furnace with 60mm Dia. alumina tube and sealed the liquid container, which is designed for a quenching sample from high temperature ( Max. 1700°C) into ice water or oil rapidly to study material phase transition and microstructure.

SPECIFICATIONS

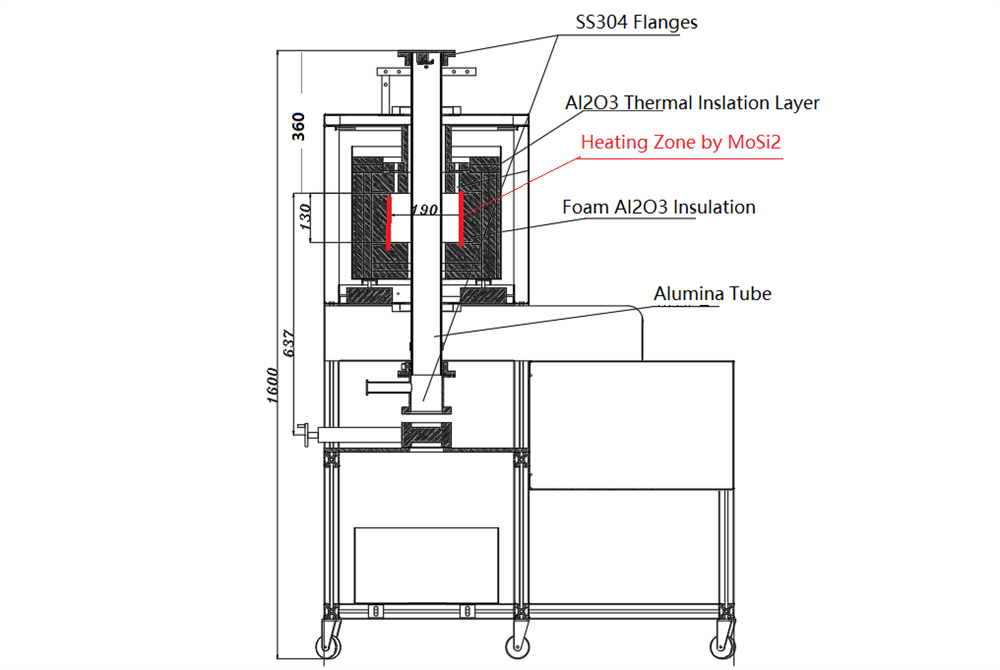

Furnace Structure
  • Double-layer steel casing.
  • High purity 1800oC grade fibrous alumina insulation
  • Alumina processing tube, vacuum & gas sealing flange with valves, vacuum gauge, thermal blocks are included
  • A quenching liquid tank is built on the bottom for immediate use
  • Quench sample up to 50mm dia, x 65 mm L  under inert gases and vacuum

Power Input
  • Single Phase, 220V AC +/- 10%,  50/60 Hz
  • Max. 4000W  (4 KW )
  • 20A air breaker required
  • 10 feet long 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by clicking picture below-left
  • The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.



 Working Temperature:

  • Max. working temperature:    1700 oC (3092  oF) for < 1 hours
  • Continous working temp.:         800-1600 oC (3002  oF)

Heating / Cooling Rate
  •  5 oC / min above 1200 oC
  • 10 oC/min below 1200oC

Heating Elements &
Heating Zone

  • 4 pcs of U-shaped 1800 grade MoSi2
  • Heating Zone Length:              130mm
  • Constant Temperature Zone:   60 mm within  +/- 5 oC

Temperature Controller


Temperature controller interface

The optional PC control module

Optional Eurotherm 3000
  • Standard temperature controller:
    • Proportional–integral–derivative control (PID control) and auto-tune function
    • 30 segments programmed with ramping, cooling, and dwelling steps
    • Built-in over-temperature alarm and thermocouple failure alarm
    • +/- 1 ºC temperature control accuracy
    • Default DB9 PC communication port (PC control module and software are sold separately. See optional.
  • Optional:
  • MTS-02 PC control module (also including cable and software) is an add-on option for PC control.
    • It is recommended to purchase the module together with the furnace. We install and test it before shipping.
    • It is recommended to purchase the laptop (with software pre-installed) from us to avoid software conflict.
    • Please note the module is not sold solely in the future.
  • Eurotherm 3008 Temperature Controller with +/- 0.1ºC accuracy is optional for an additional $950 including installation and testing. This package also includes the communication cable (RS485 - USB) and software CD. Click here to view the full spec.

Processing Tube
  • 99%High purity Al2O3 Ceramic, ID: 54mm; OD: 60 mm x Length 850 mm
  • Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
  • You may consider using a tungsten wire to hang up a crucible or sample to quench sample ( click Pic right to learn )
  •

Vacuum Sealing and Valve

Electromagnet Sample Release Flange & Quenching

  • Full automatic electromagnet sample release flange
  • The hinged plate hooks the cable, which pulls the sample.
  • The hinged plate drops when the electromagnet powers off. The sample and the cable fall into the quenching tank.
  • Rings are available for hanging the tube block with cables.
  • The bottom flange is connected with a 4" gate valve ( manual operated ) via CF-100 adaptor
  • The gate valve is connected with a quenching media container in size 400 x400 x 200 H ( mm )
  • Caution: You must use ice water or cooled oil as a quenching media if quenching under a vacuum.
1. Flange Structure 2. Flange Operation 3. Gate Valve 4. Quenching Tank 5. Quenching 6. Pulling Cable

 Quenching operation
  • One stainless steel tank is located on the bottom of the furnace to contain quenching liquid.
  • One large gate valve is built on the bottom tube
  • One ele
