Large Lab Roller Mill with Variable Speed & Four Optional Tanks - MSK-SFM-14-IV

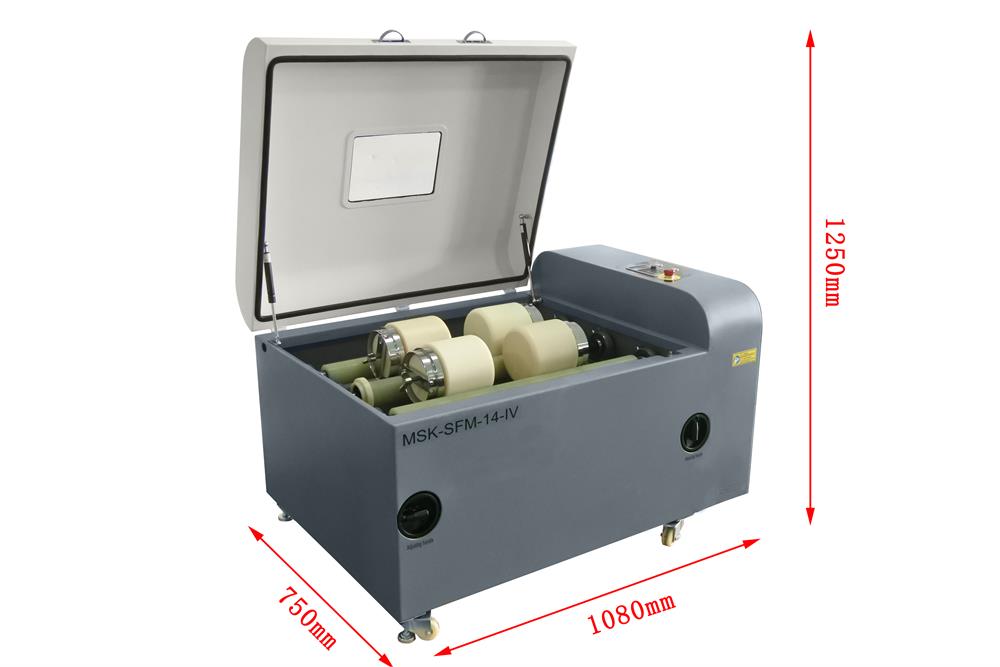

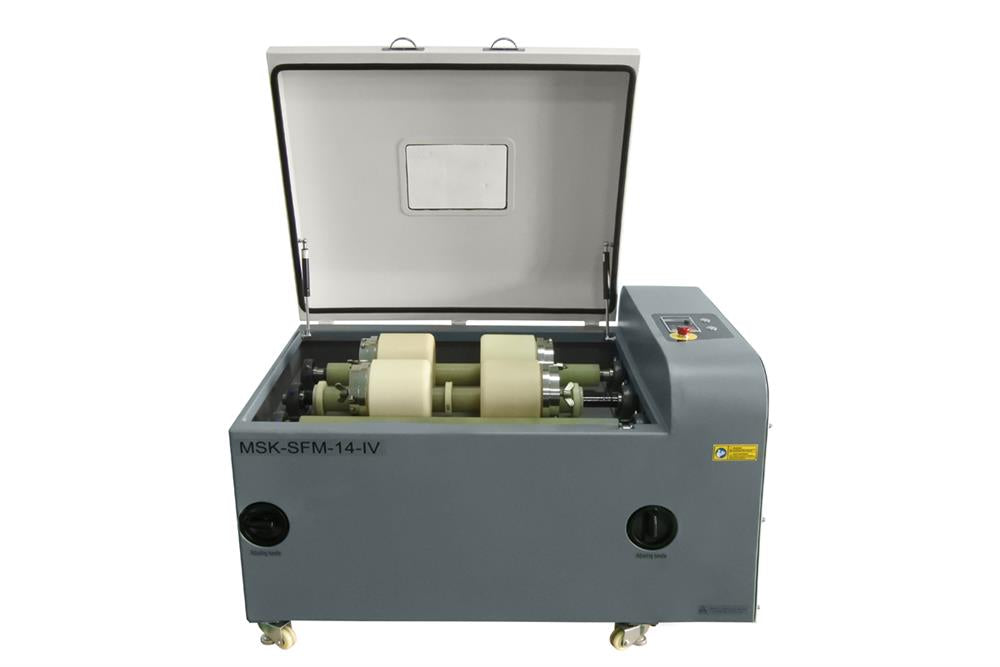

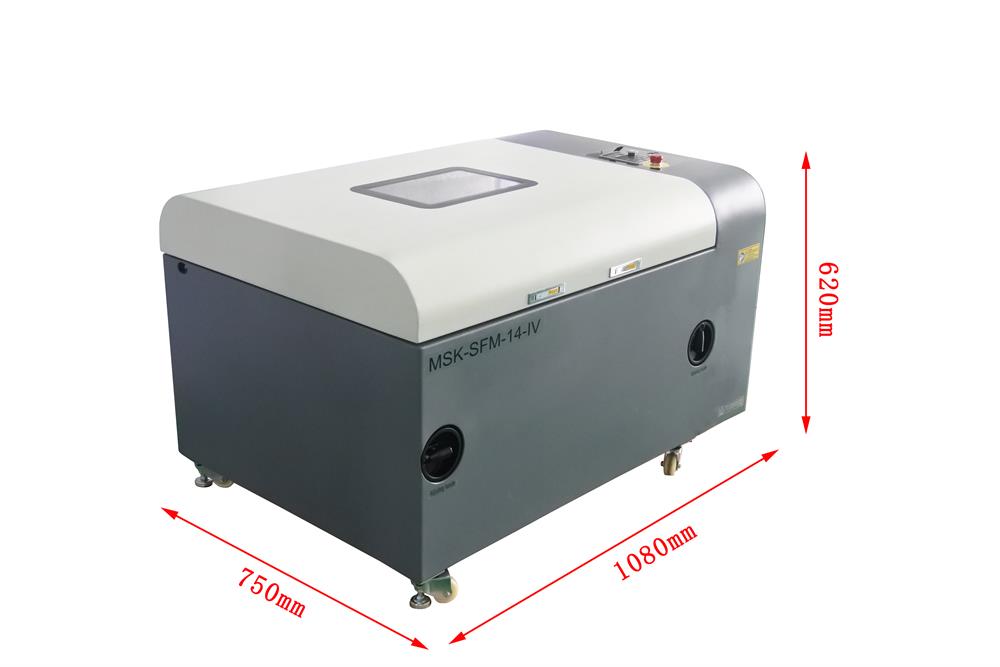

This Large lab roller mill MSK-SFM-14-IV is capable of crushing, grinding, and dispersing metallic, non-metallic, and organic material powders. Powders can be quickly ground, sheared, pressed, and impacted down to a smaller size by extremely high centrifugal forces of planetary balls. The compact body permits the use in a limited space in a laboratory. The simple control interface allows the user to customize the milling process by changing the milling speed and milling orientation easily. The milling process becomes more flexible if using the multiple segments milling function. Four optional tanks could be made of stainless steel, Corundum, Polyurethane (PU), and Nylon. The tank could also be a stainless steel vacuum jar.

SPECIFICATIONS

Power Requirements	Input voltage: AC 208 - 240 V, 50/60 Hz, single phase Input power: 750 W You may order a 1,000 W transformer to use at AC 110 V
Features	A solid steel frame with safety covers and observe window Four 2L milling tanks The tank volume: 2L Standard Size, 0.5 L to 5 L is available upon request The distance between rollers is adjustable
Milling Model	Manual mode Automatic mode Time control: 0 - 99 hours adjustable One/alternate orientation grinding
Milling Speed	0 ~ 269 rpm.

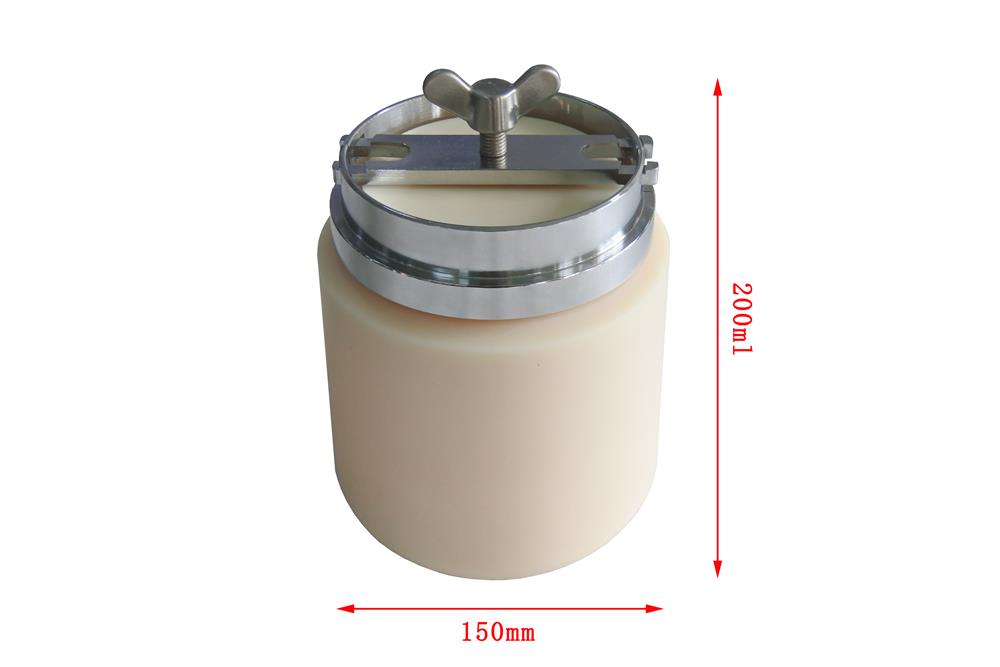

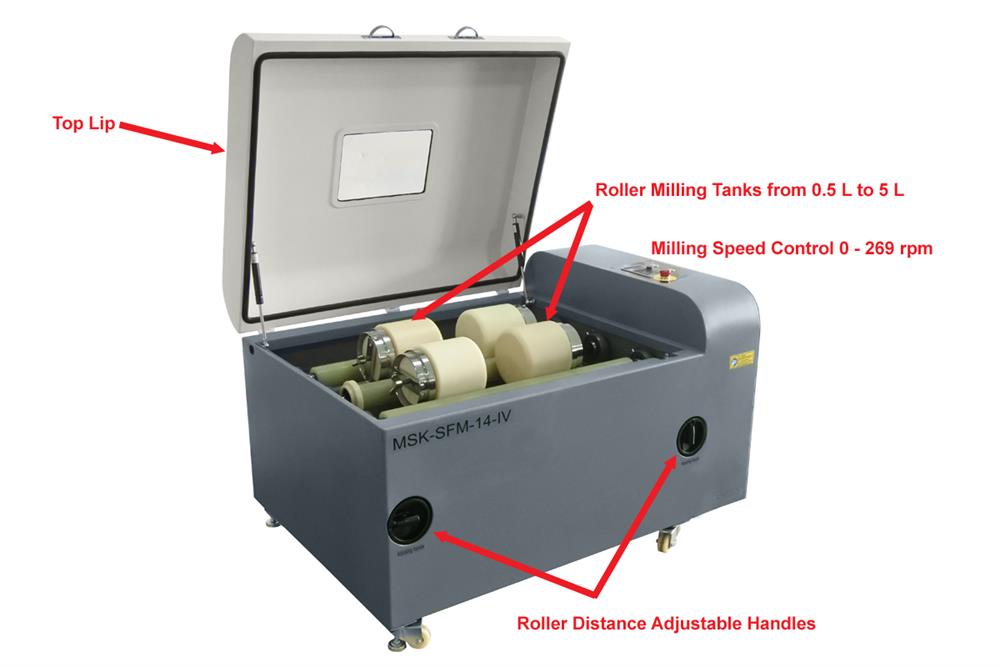

Rollers & Tank (Jar) size	The space of two rollers and driving wheels distances are adjustable The roller can hold the milling tank 50 - 215 mm in length and 70 - 260 mm in diameter With the cover open and the safety lock sensor deactivated, the roller can hold the milling tank up 300 mm in diameter. Different material tanks shown in the pictures below are available in the options bar Vacuum or pressure jar is available upon request   Stainless Steel Corundum Polyurethane Nylon SS Vacuum
Milling Balls	One group of stainless-steel milling balls (not included) with sizes from 6 to 20 mm in diameter Please click the link below to choose various milling balls at an extra cost
Material Final Fineness	10 ~ 70 um (200~1000 mesh)
Material Feed Size	< 5 mm (depending on feed material size)
Compliance	CE Certified NRTL certification is available upon request at an extra cost
Operation Video
