MTI  |  SKU: YLJ-HP10KN

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - MSK-YLJ-HP10KN

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - MSK-YLJ-HP10KN

MTI

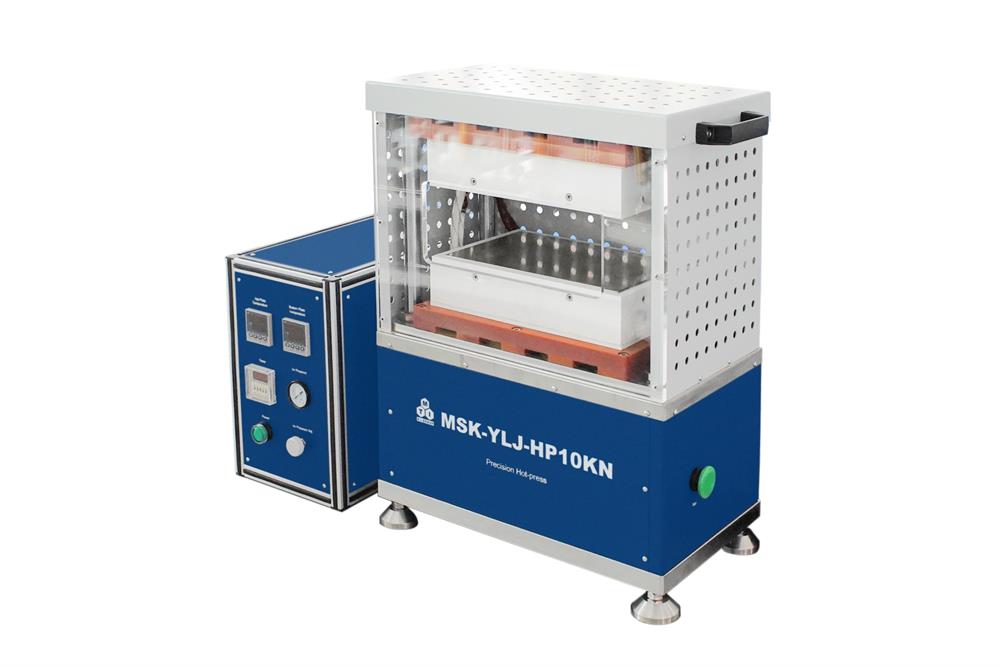

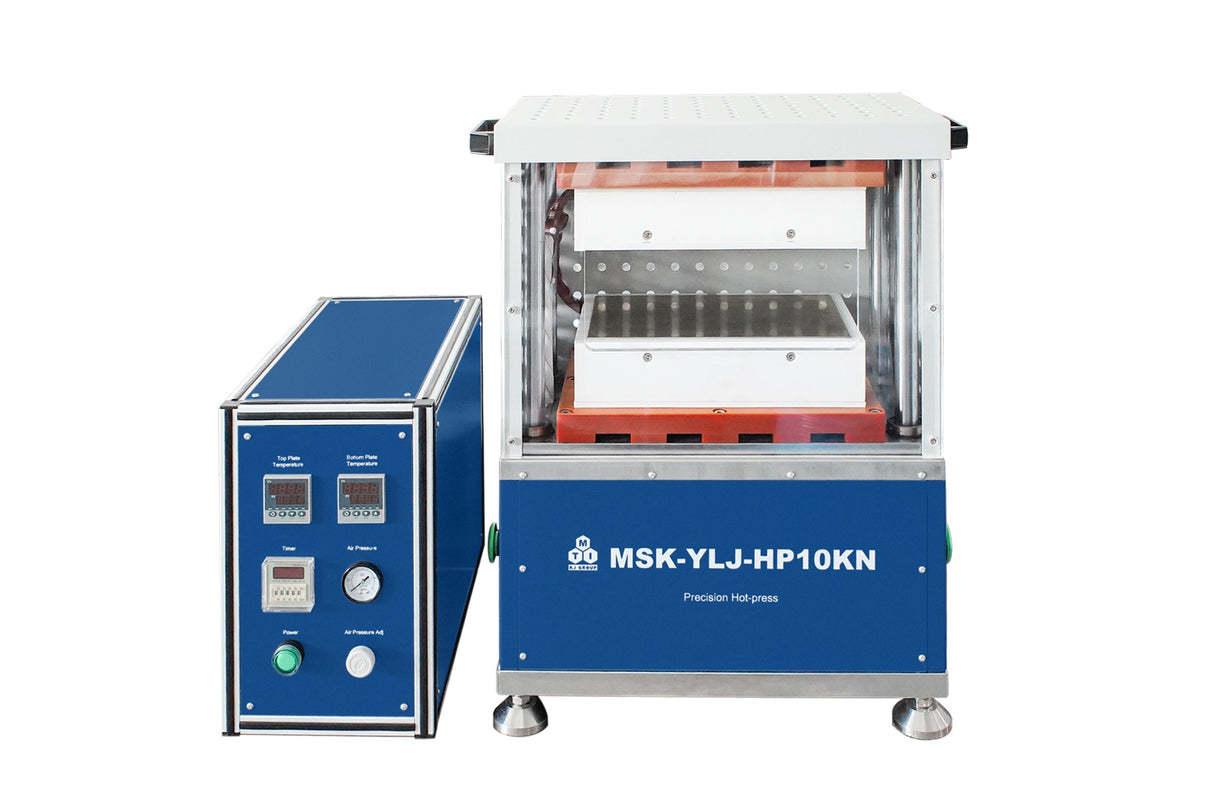

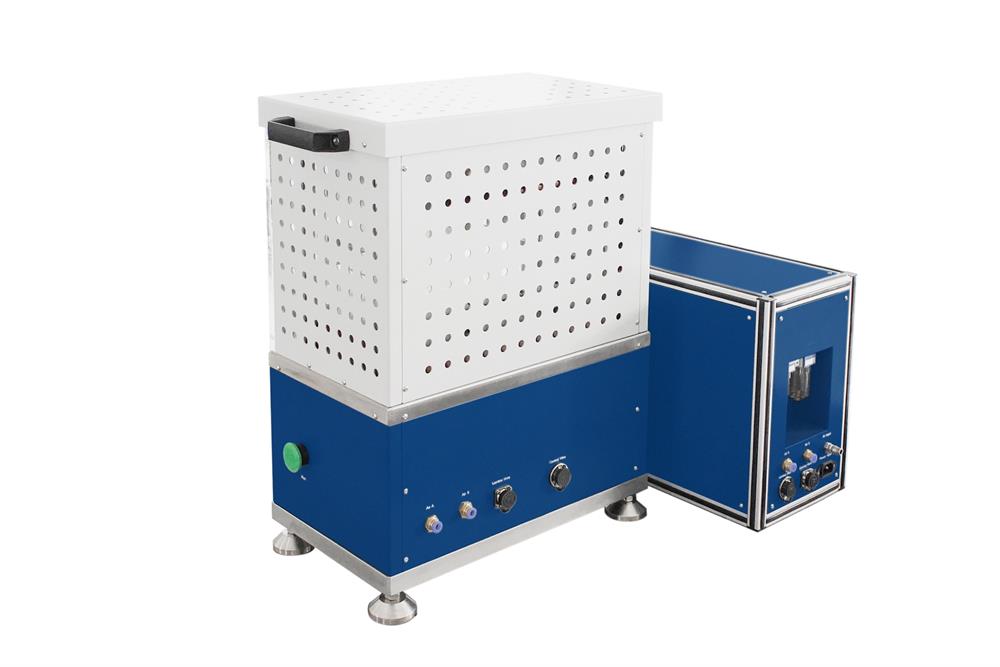

MSK-YLJ-HP10KN is a 150°C max. pneumatic hot press with precise and constant pressure delivery up 1,000 kg. It is designed to provide an even pressure load and temperature environment for the tested pouch battery to achieve a more efficient and high-quality SEI formation. Meanwhile, the pouch shaping can be optimized through this process. It is also an ideal tool for testing the pressure effect on solid-state battery performance when an elevated temperature is needed.

SPECIFICATIONS:
Pneumatic Press
  • Max. Load:  10KN  ( 1,000 kg )
  • Max. The pressure is dependent on the sample area  ( Load Force / Area = P)
  • Pneumatic cylinder travel distance  95 mm Max.
  • Working area:  260 mm W x 160 mm D
Power Requirement
  • AC220V ±10%, 50Hz/60Hz
  • 2,100 W
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.7MPa
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Heating Platens
  • Two heating platens with independent PID temperature control up to 150°C ± 5
  • Working area: 260 mm W x 160 mm L
  • Platen is made of Die Steel with HRC60°±2°
  • The parallelism of top & bottom platens <15um
Pressure
  • Digital pressure display with a timing control
  • Frontal manual adjustable valve for pressure tuning, 0.2~0.7MPa (1KN~4KN)
  • Pressure Accuracy:  +/- 0.5 kg
Product Dimensions
  • Hot Press: L488mm*W275mm*H642mm
  • Control Console: L220mm*W489mm*H340mm
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
Warranty One-year limited warranty with lifetime support (rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Optional
  • A battery analyzer is available upon request, and please choose at the link below:
  • Battery & Super-capacitor Analyzer
Reference Video

Net Weight 115 kg
Shipping Weight 150  kg (330 lbs)
