MTI  |  SKU: KSL-500X-1200

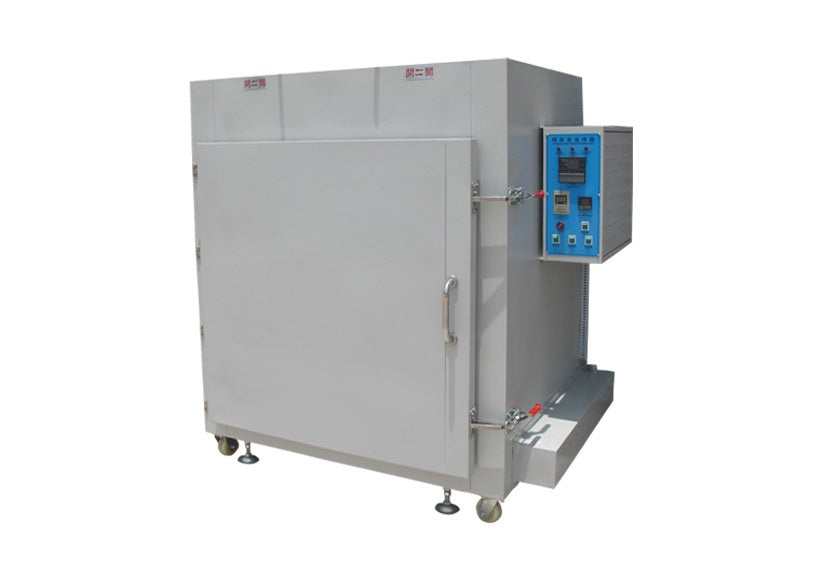

Large 500°C Convection Oven (1x1x1.2 meter 1200L) w/ Programmable Temperature Controller - KSL-500X-1200

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Large 500°C Convection Oven (1x1x1.2 meter 1200L) w/ Programmable Temperature Controller - KSL-500X-1200

MTI

KSL-500X-1200 is a large 500°C oven ( 1200 liters) with air convection and a programmable temperature controller to achieve a uniform temperature in the oven. It is a cost-effective industrial convection oven for a variety of laboratory applications, such as drying, debonding, and storage.

Note: MTI performs test runs prior to shipment to ensure the quality of the oven. The heating chamber may have a slight brown-tinted color due to oxidation.

SPECIFICATIONS:
Power 208-240V AC, 3 phase, 50/60Hz
19 kW
Working Temperature  450°C  continuously
500°C  < 30 minutes
Heating Rate <7°C/min (0~300°C);
<4°C/min (300~400°C);
<0.5°C/min  ( 400 - 500°C)
Temperature Uniformity ± 2°C
Temperature Controller
 30 segments programmable digital temperature controller with +/- 1°C accuracy
PID auto-tune function
Over-temperature and thermocouple break protection
RS485 PC communication is available at an extra cost.

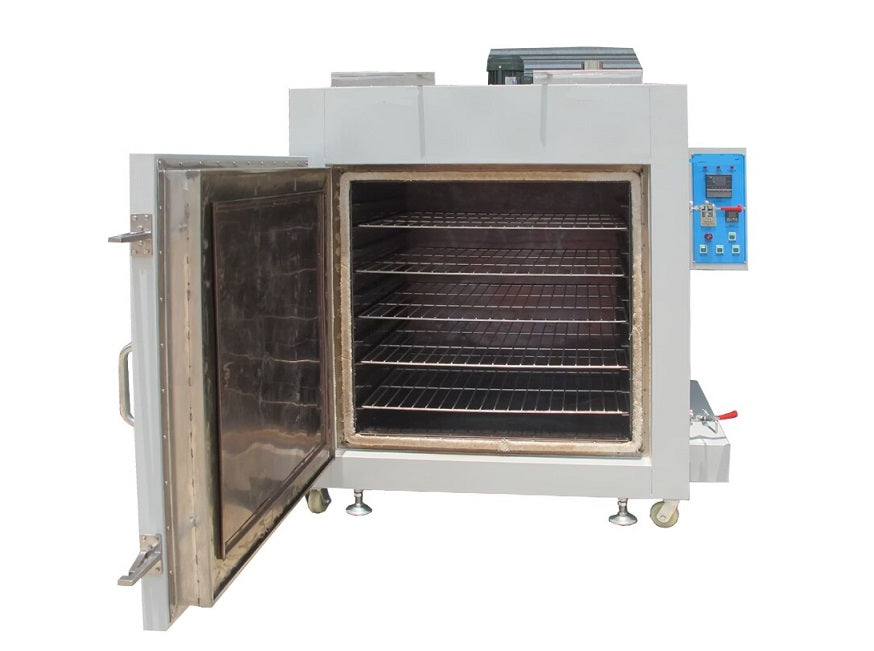

Chamber

 Stainless steel inner chamber with refractory fibrous thermal insulation
Dimensions: 1000 mm (L) x 1000 mm (W) x 1200mm (H)     ( 39"x39"x47"H
Volume: 1200 L
Exhaust port:  1" diameter on top of the oven
5 stainless steel shelves with a maximum loading of 8 kg per shelf.
Thermocouple K type
Dimensions 1680 (L) ×1550(W) × 1650 (H)  mm
Compliance

 CE Certificate
NRTL or CSA Certificate is available upon request at extra cost.
Warranty One Year limited warranty with lifetime support (except for consumable O-rings)
Operation Demo Video
Net Weight 155 kg (342 lbs)
Shipping Weight about 500 lbs
Shipping Dimensions N/A
