500°C (18x18x18, 91 Liter) Large Vacuum Oven with Vacuum Pump & Water Chiller - DZF-6090-HT

MTI

DZF-6090-HT is a 500ºC high-temperature vacuum & atmosphere oven.  The oven is equipped with two heating zones inside the heating chamber. Each heating mechanism is controlled by a discrete programmable temperature controller.

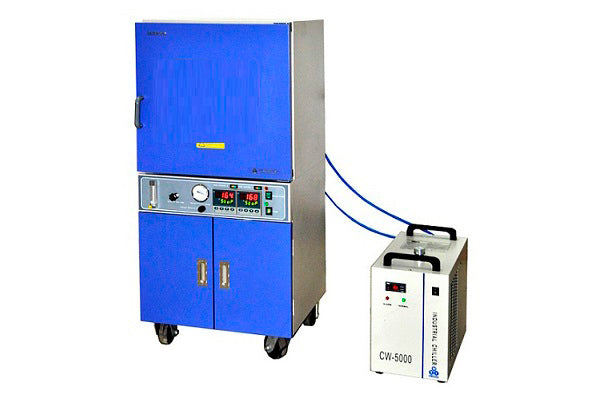

This floor-stand oven integrates a vacuum pump, recirculating water chiller, and gas flowmeter together for immediate use.  Vacuum oven lowers dry temperature, prevents oxidation, and protects organic materials. It is the ideal oven for drying and annealing material as well as nanomaterial preparation.

SPECIFICATIONS
Power
  • Single Phase 208~240 VAC 50/60 Hz.
  • 2600 W with 20A breaker required
Structure

  • The chamber is structured with stainless steel and welded to bracing pieces.
  • Two racks of SS304 heating plate inside the vacuum chamber, which directly heat heats the chamber
    • Warning: never directly put samples on the heating plate, please use a ceramic sheet or stainless tray to contain sample
  • Chamber material: 1Cr18Ni9Ti stainless steel
  • Chamber size  18x18x18", , 460x460x460 mm,  91 Liter,  3.4 Cubic Feet
    • Height of upper heating zone: ~170mm, see pic on the left
    • Height of lower heating zone: ~170mm, see pic on the left
Temperature Control
  • Two programming temperature controls are equipped for discrete control on each heater
  • 30 segments programmable with ± 1ºC accuracy
  • Continuous working temperature:  50 - 500 ºC
  • Max. working temperature:  550 ºC f < 2 hours
  • The maximum temperature difference between the two zones:  100ºC.
  • Temperature Uniformity: ±5°C in 12x12x12" chamber center zone.
  • The software and PC interface module is available at extra cost.
Vacuum Pump & Floating-Meter
vacuum pump
Water Cooling
  • One Digital controlled Recirculating Water Chiller EQ-KJ5000 is included. (click Pic. left to see details)
    • Refrigeration range: 5~35°C
    • Flowing range: 16L/minute
    • Coolant tank capacity: 6 Liter
    • Use anti-corrosion coolant for the best performance.
Warranty
One-year limit warranty and lifetime support
Certificate
  • CE Certification
  • NRTL or CSA Certification is available upon request at extra cost.
  •

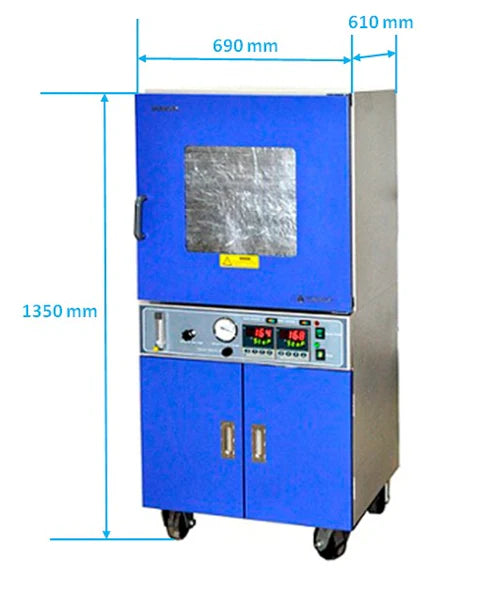

Product Dimensions
  610 x 690 x 1350 mm (24" x 27" x 53")
Shipping Weight & Dimensions
  • 610 lbs
  • 48"x40"x65"
Operation Manual

Application Notes
  • For accurate temperature measurement, you may do calibration by using the temperature calibrating kit.
  • For more information on how to calibrate the oven temperature, please read the document How to calibrate the oven.
Attention
After heating the oven to a high temperature, the chamber will be dulled and discolored. They are normal phenomena and will not affect the performance of the oven. All samples inside the chamber should not have any contact with the chamber wall.
