MTI  |  SKU: DHG9000JB

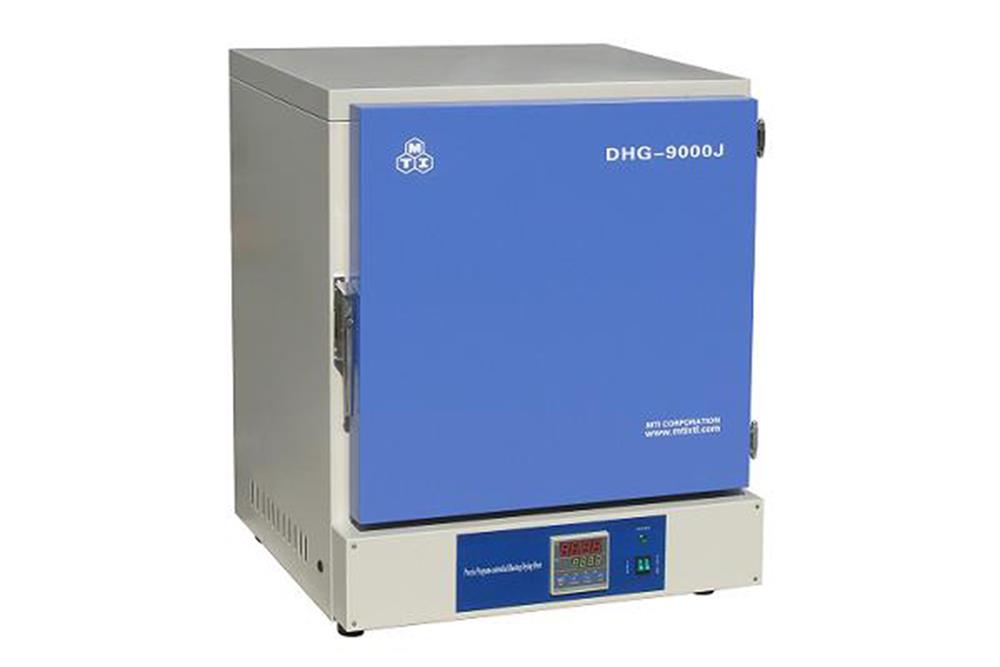

400°C 43L Convection Oven (14"x14"x14", 43L) with 28 Segments Programmable Controller - EQ-DHG-9000JB

€4.597,70

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

400°C 43L Convection Oven (14"x14"x14", 43L) with 28 Segments Programmable Controller - EQ-DHG-9000JB

MTI

EQ-DHG-9000JB is a Mechanical Convection Ovens combine forced-air circulation to achieve dependable, uniform conditions for a variety of laboratory applications like drying, storing, wax-melting and sterilization. It is an ideal heating equipment for material R&D laboratories.
Update: Since Apr. 2015  The UL/CSA ready version is available.

SPECIFICATIONS:
Working Voltage 208-240V AC
Max. Power Consumption 2200W
Max. Operating Temperature 400°C
Temperature control
  • Digital programmable temperature controll with 28 segement with +/- 1oC accuracy
  • Heating rate:  0.5oC/ minute - 5 oC minute programmable
  • Max. Heating Rate:  7°C/min (5°C/min is recommended)
  • Chamber Temperature Uniformity:  ±5°C
Chamber
  • Interior Material: Stainless Steel and Fibrous Refractory Shell
  • Dimensions: 14"(L) x 14"(W) x 14"(H)
  • Volume: 43L
Exhaust pipe Port 30mm
Thermocouple Type PT100
Sensor Overheat protection sensor automatically cuts power if over-heated
Shelves 2 stainless steel shelves were included for immediate use,  and max loading of 8 Kg per shelf
Product Dimensions 23"(L) x 31"(W) x 24"(H)
Compliance

 CE certified only
 NRTL or CSA certification is available at the extra cost
Warranty One Year limited warranty with lifetime support (except for consumable O-rings)
Operation  Demo Video
Shipping Weight 275 lbs
Shipping Dimensions 48"(L) x 40"(W) x 47"(H)
