MTI  |  SKU: BPG7032V110

30L NTRL/CSA Certified Convection Oven (13x12x12, 250C) w/ Digital Temperature Controller - BPG-7032

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

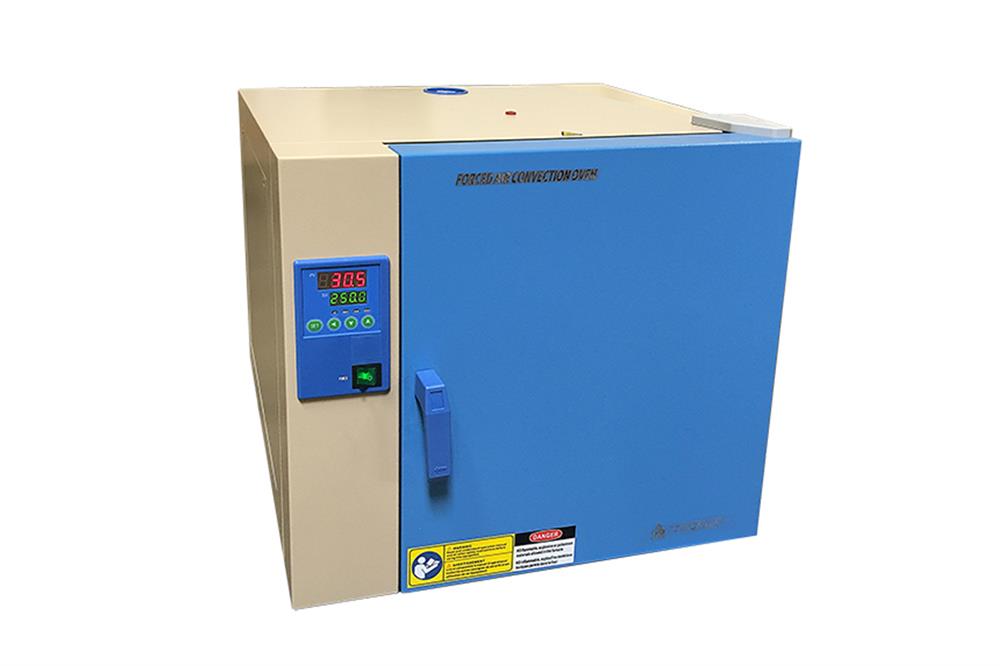

30L NTRL/CSA Certified Convection Oven (13x12x12, 250C) w/ Digital Temperature Controller - BPG-7032

MTI

BPG-7032 is an NTRL Certified  (CSA Certified)  Forced Air Drying Oven with 30L capacity and 250oC Max. working temperature.  This radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, and plating applications. It is an ideal heating equipment for material R&D laboratories.

SPECIFICATIONS:
Working Voltage 110/220 VAC selectable
Max. Power Consumption 850W
Max. Operating Temperature 250°C
Chamber
  • Interior Material: 304 Stainless Steel
  • Dimensions: 13"(L) x 12"(W) x 12"(H) (340 mm x 320 mm x 320 mm)
  • Volume: 30L
  • Dia. 5 mm Small window on the roof for additional thermocouple probe.
  • 2 removable steel rack shelves, and max loading of 8 Kg per shelf
Temperature Controller
  • Single point setting temperature controller with +/- 1°C accuracy. Build-in over-temperature, thermocouple failure protection alarm.
  • Build-in over-temperature, thermocouple failure protection alarm.
  • Secondary over-temperature protection and auto power cut-off for the heating elements.
Insulation 3" (7.6 cm) glass wool insulation prevents heat loss from the working chamber
Ventilation
  • Two hot air ventilation on the back of the oven
  • One ventilation adjustment on the top of the oven
  • One 5 mm Dia. slot on the top for an additional thermocouple probe
  • Venting port 1.5'' diameter
Door Glass Protected by Exclusive Polycarbonate Safety Shield
Airtightness Enhanced by Silicone Door Gasket and Positive Latch Door

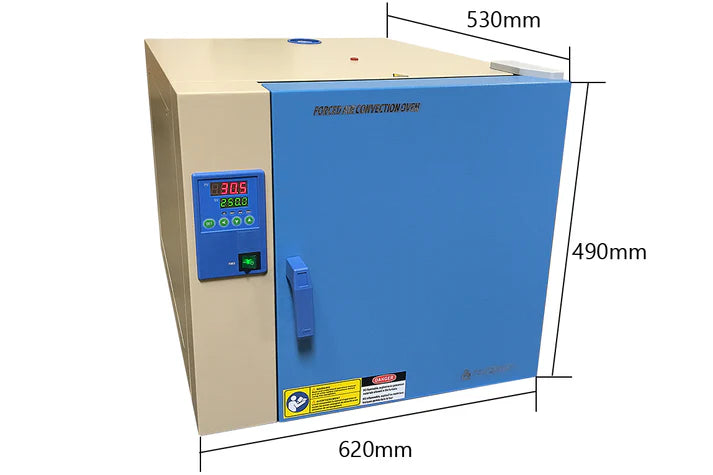

Product Dimensions

 620mm(L) x 530mm(W) x 490mm(H) (25" x 21" x 20")
Compliance     CSA-US Certificated for both USA & Canada (for 110V version only)
  CE Certificated (for both 110V and 220V)
Warranty One Year limited warranty with lifetime support
Operation Manual  ( for existing customers only )
Application Notes
Shipping Weight 160 lb
Shipping Dimensions 48"(L) x 40"(W) x 35"(H)
