1100°C Max. Muffle Furnace (12x12x12") w/ Alloy Chamber for Debinding - KSL1200X-M-F

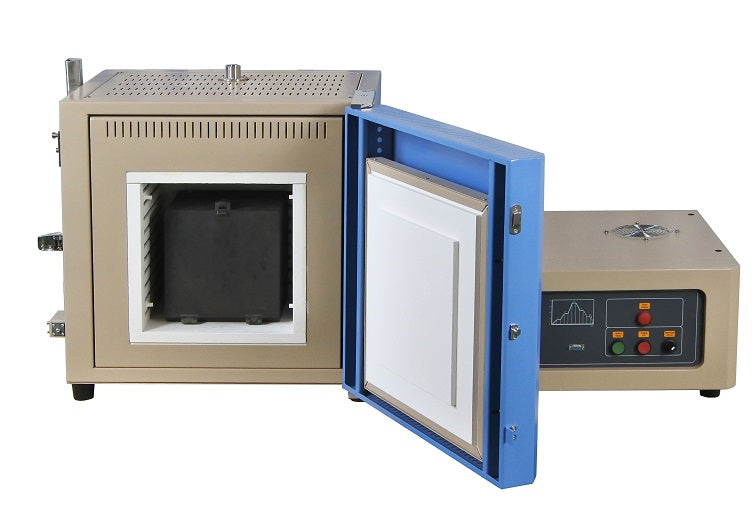

KSL1200X-M-F is a muffle furnace with a 310S alloy chamber and a working temperature of 1100°C. The 9x9x10" refractory alloy chamber has a gas inlet and outlet which can remove bender or glue to prepare porous materials or fill inert gas for sintering oxygen-sensitive materials. The programmable temperature controller is separated from the furnace for safe operation.

SPECIFICATIONS

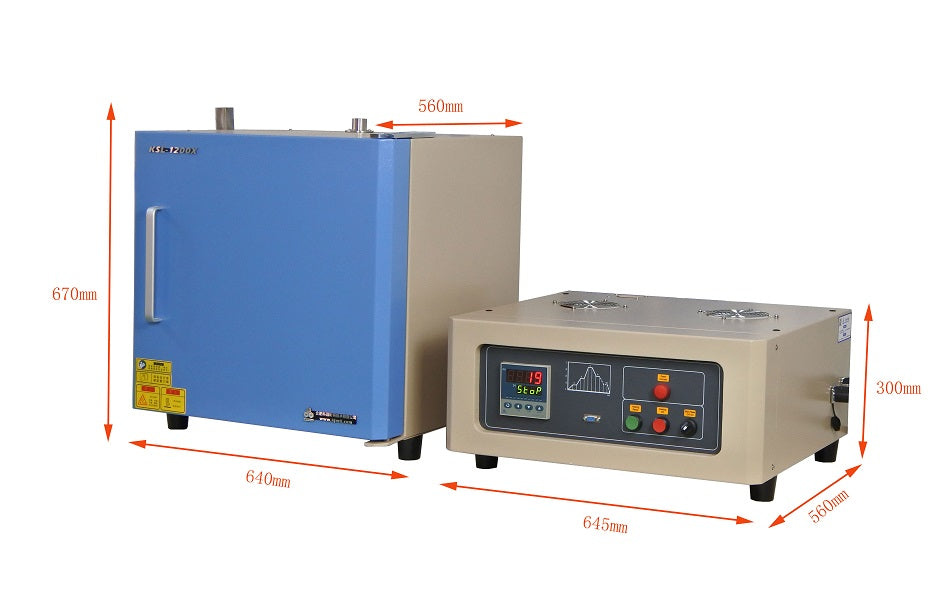

Heating Chamber	Size: 12" x 12" x 12" ( 304 x 304 x 304 mm) Capacity: 27 liters  Heating element: Ni-Cr-Al wire inserted a high purity fibrous alumina Three sides heating Max. Temperature: 1200 °C

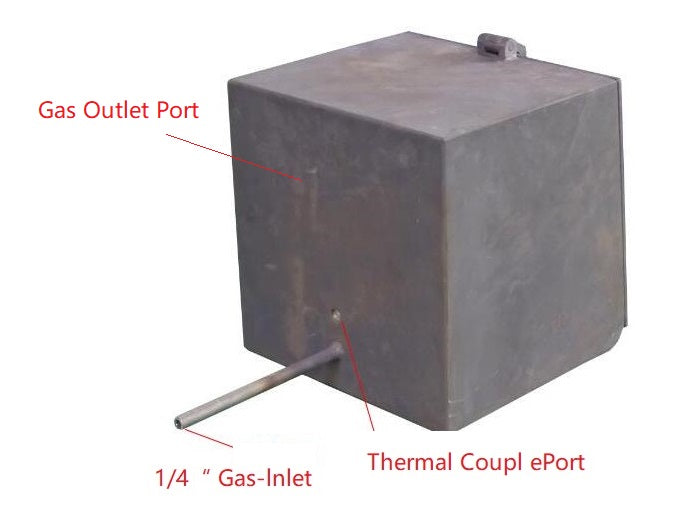

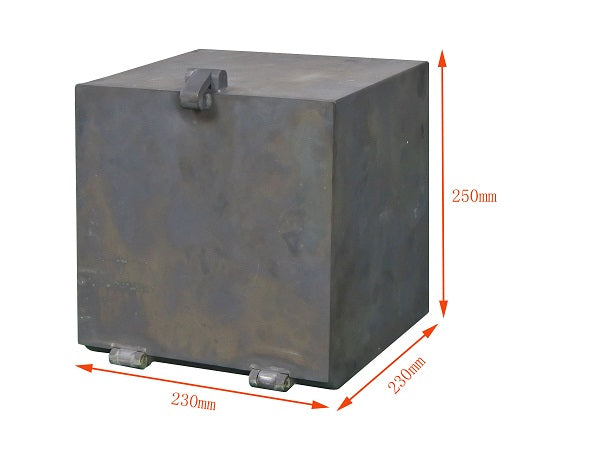

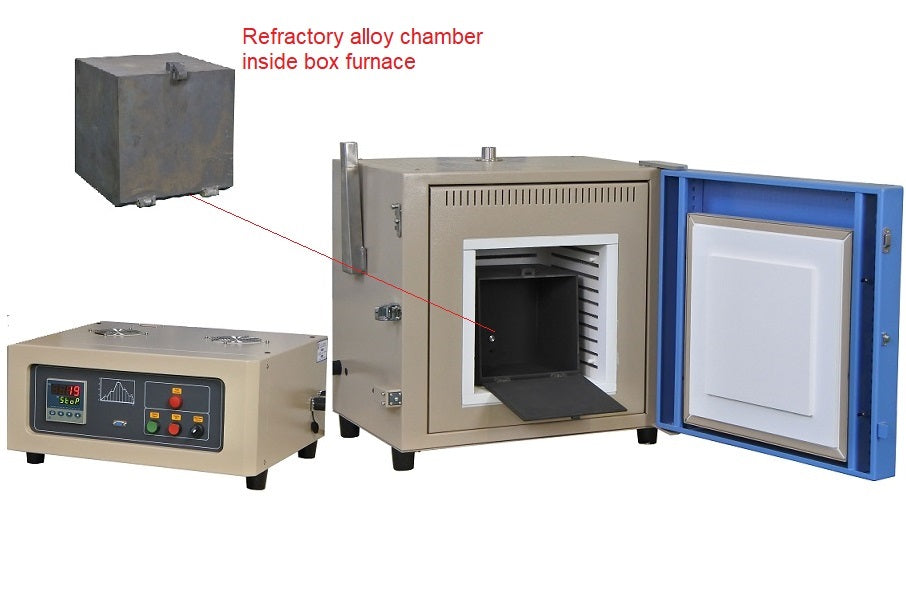

Refractory Alloy Chamber	310S alloy chamber with hinged type door is placed inside the heating chamber Size: 9"x9"x10" ( 230x230 x 250 mm ) Capacity: ( ~13.2 Liter )  8 mm ID gas inlet tube is put to the back of the furnace 8 mm ID" gas outlet tube is connected to the top of the furnace K type thermal couple is inserted into the inside chamber for temperature control Max. working Temperature: 1000°C Note: This is not an airtight chamber, but it is enough to keep smoking leaking to damage the heating chamber For air-sensitive material, suggest use 5%H2 + 95% Ar to keep the sample from oxidation
Power	208~240V AC, Single phase, 50/60 Hz 12.5KW 60 A Breaker (installed) Note Power cable included, but without the plug. Please install a plug on your own
Max Operating Temperature	1000°C with refractory alloy chamber inside  1200 °C without refractory alloy chamber inside  Temperature Stability: ±1 °C Suggested heating Rate: 10 °C/min
Temperature Controller	The FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling, and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port with PC operation software included Eurotherm temperature controller with +/- 0.1 accuracies is available at the extra cost
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
