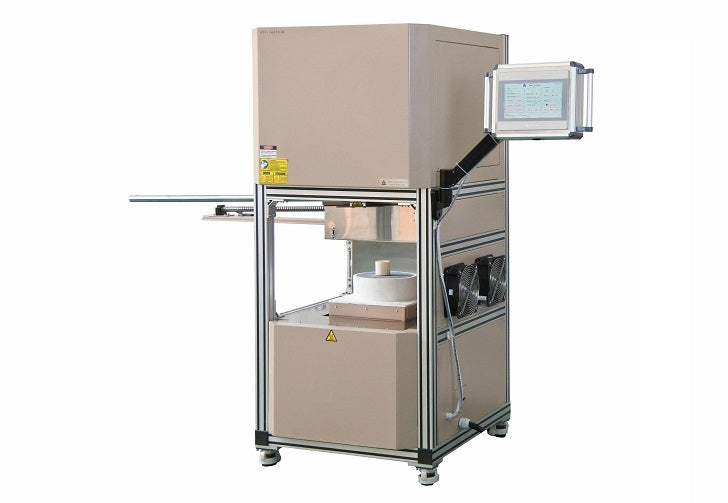

1600°C Automatic Bottom Loading Furnace (11"Dx12"H ) for Thermal Cycling Test - VBF-1600X-D2

Features

• Automatic bottom loading for easy operation
• Horizontal sliding baffle door for blocking thermal radiation
• Programmable temperature control up to 1600ºC with 24 segments
• Automatic thermal shock cycling is programmable up to 100 times
• • Close the baffle door to preheat the chamber, then loading the sample for fast heating
  • Open the baffle door to down-loading sample, then, close the door, and air blow the sample for fast cooling

Power

• Single-phase 220 VAC, 50/60Hz (20 A breaker required)
• 9 KW Max.
• 10-foot power cable is included, but without a plug

Heating Chamber @ Working Temperature

• Heating Chamber: 276 mm diameter x 300 mm H
• MoSiO2 heating elements
• 800°C - 1600°C continuously
• Recommended heating rate: ?10°C/min ( 800 - 1400°C ) and < 5°C /min ( 1400 - 1600°C)

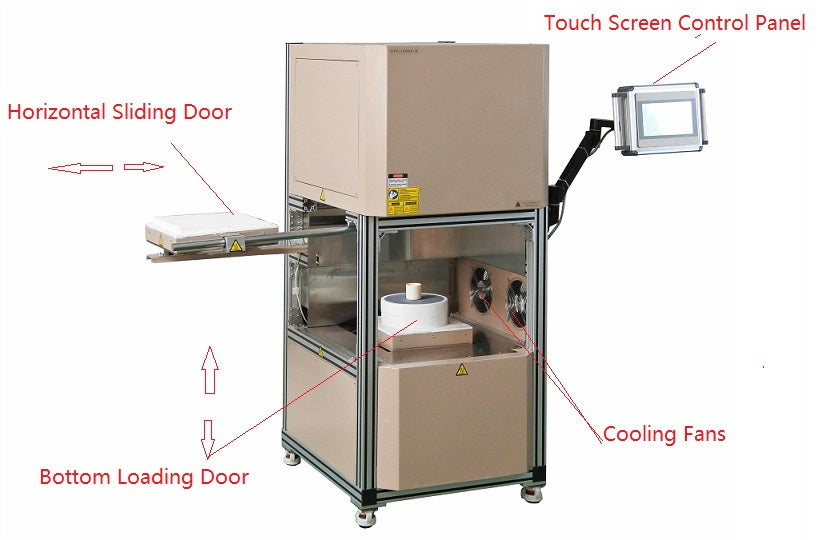

Bottom Load and Baffle Door


• The bottom loading stage is driven by an electric motor, which has a 276 mm diameter and 20 kg max. loading weight
• The sliding baffle door is driven by a DC motor

• Touch screen control panel for controlling temperature and thermal shock cycling
• Temperature control
• Eurotherm Temperature Controller inside
• 1 program, 24 segments programmed with ramping, cooling, and dwelling steps
• Built-in PID automatic control, Auto-Tune function with overheating & broken thermocouple protection
• +/- 0.1 ºC temperature accuracy
• B-type thermal couple
• Thermal shock cycling automatically via a program, as below
• Preheating chamber when closing the baffle door
• Open the door, loading the sample to the top chamber for fast heating at an ideal time
• Open door, load the heated sample down, then blow it by cooling fans
• Repeat the above procedure by setting the cycling time
• RS485 port is built-in for PC operation  ( software is included )

Overall Dimensions

Click the picture to see the details

Net Weight

500 kg

Warranty

• One-year limited warranty with lifetime support (consumable parts such as processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below.)

• ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty

Compliance

• CE Certified
• NRTL / CSA Certification is available upon request at an extra cost

Operation Demo Video
