1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72

MTI

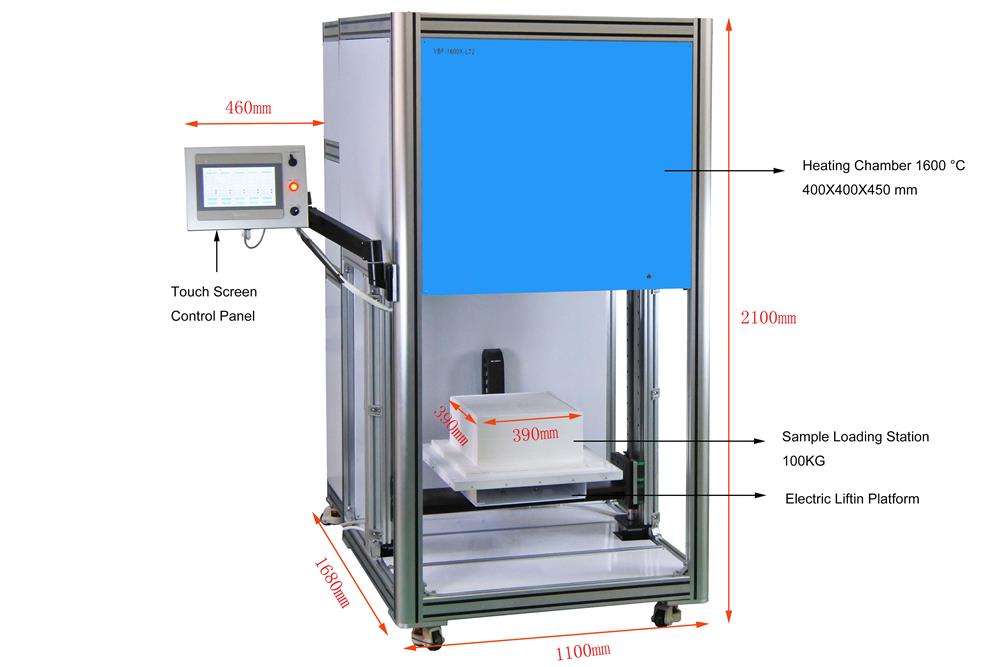

VBF-1600X-L72 is a bottom loading box furnace with a 40x40x45 cm heating chamber for rapid thermal process and fast cooling procedure, which uses 27 pieces of  MoSi2 heating elements with 3 heating zone for working up to 1600ºC continuously with 30x30x30 cm  Unform space within +/- 3ºC.  The sample loading platform is driven by an electric motor for easy operation.

SPECIFICATIONS


Furnace Features
  • Two-layer steel casing with air colling gap.
  • 40x40x45 cm heating chamber with 30x30x30 cm uniform heating space within +/- 5 °C
  • Electric bottom loading for Rapid thermal heating and cooling process.
  • High purity thermal insulation material for better energy-saving
  • Touch screen panel for easy and safe operation.
Power
  • 220 VAC, 50/60 Hz three-phase
  • Max. Power: ~ 45 kW
Working Temperature
  • 1600 °C, continuously
  • 1700 °C, < 1 hr

Heating Chamber
  • 400L x  400 W x 450 (H), mm      (  ~16" H x 16"D x 18"H)
  • Nominal Capacity: ~  72 L
  • Heating Element: 1800oC grade MoSi2, 27 pcs 3 zones heating with 3 thermal couples (B)
  • Uniform Heating Space:              300 x 300 x300 mm within +/- 3ºC
  • Max. Heating Rate:                    ? 10 °C/min (Recommended)
  • Electric bottom loading station: 390 x 390 mm with 100 Kg max.
  • Gas Flow Ports    1/2" gas inlet and  ~1" gas outlet  on the top


Control Panel
  • Touchscreen control panel with PLC
  • Eurotherm 3000 series Temperature Controller with10 programs  ( 24 segments)
  • ± 0.1 ºC temperature accuracy
  • Overheat alarm, Deviation alarm, broken thermocouple alarm
  • RS 485 communication port for remote control.
  • PC software and interface are included
  • Bottom loading control

Overall Dimension
  • 1680L x 1560W x 2100 H  (mm)

Net Weight

  • 1000 KG

Warranty
  • One-year limited warranty (Consumable parts such as heating elements, processing tubes, and o-rings are not covered by the warranty, please order the replacement at related products below.)

Compliance
  • CE Certified
  • NRTL  (UL61010)  or CSA certification is available upon request at extra cost.
