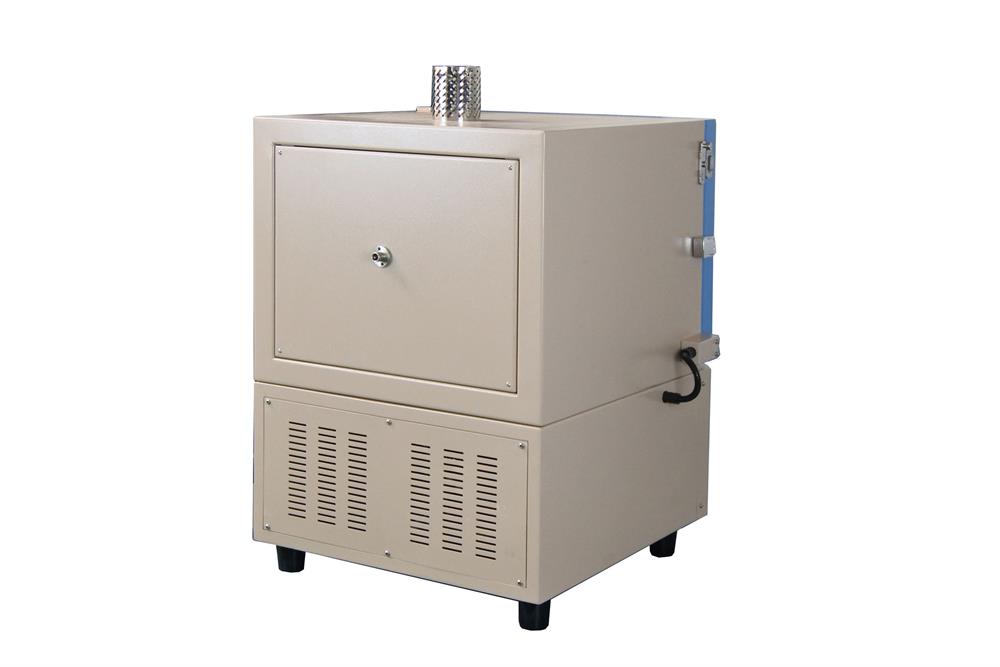

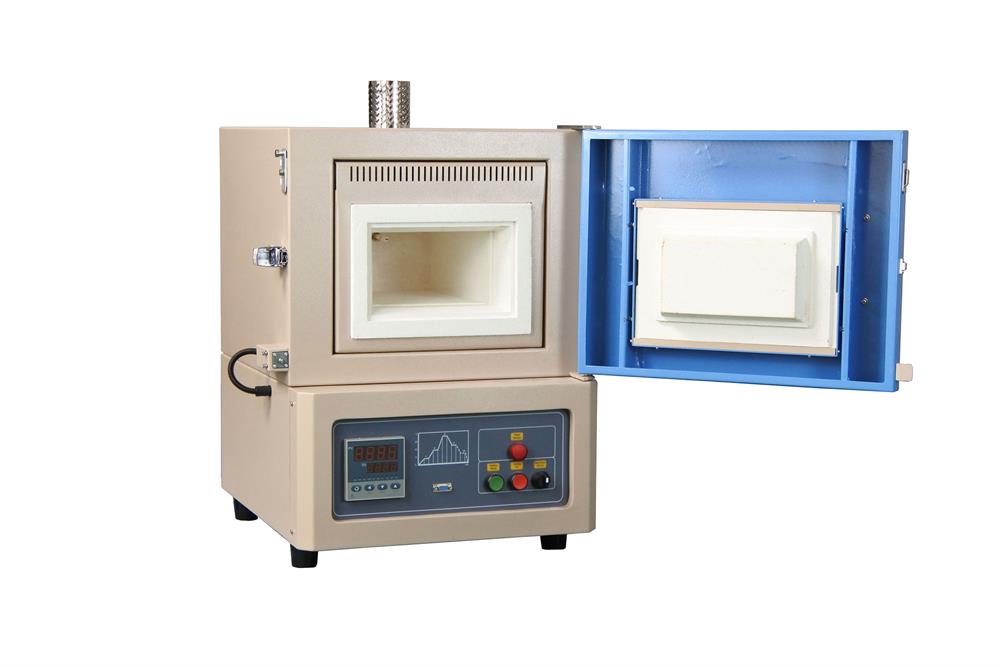

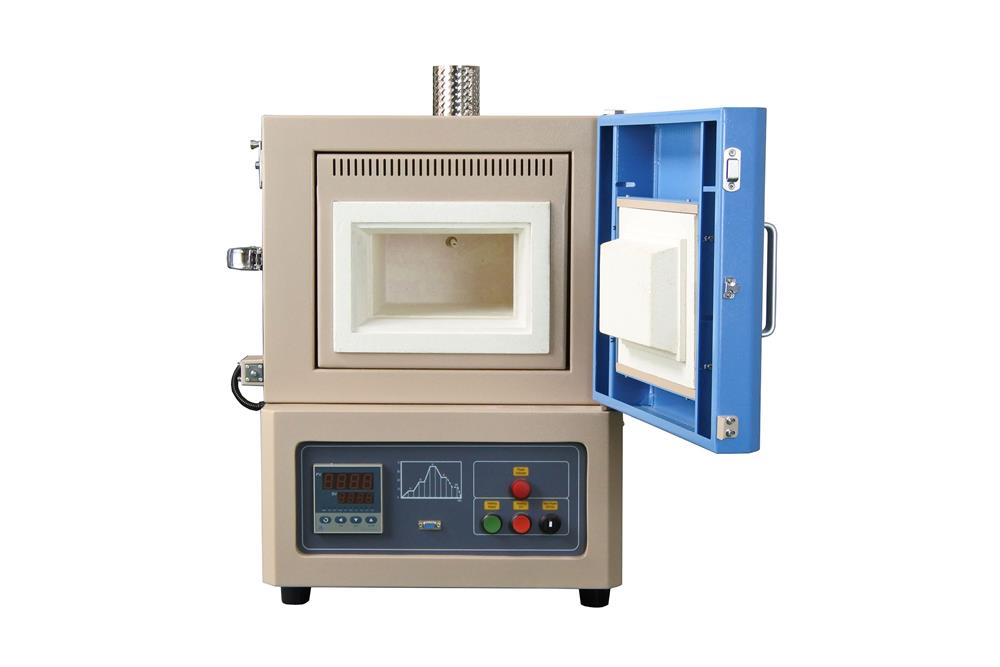

1050°C Anti-Corrosive Muffle Furnace with Ceramic Chamber (12" x 8" x 5", 7.2L) - KSL-1000X

• Double-layer structure with a cooling fan to keep furnace exteriors safe to touch
• Heavy-duty heating corundum chamber where the heating coil is inserted inside
• One venting port is built on top of the furnace
• Can processing corrosive material

• Material: sintered corundum
• Dimensions: 12" D x 8" W x 5" H
• Heating element: FeCrAl coil inserted inside the chamber
• Three sides heating: left, right & bottom.
• K type thermal couple with alumina protection sleeve
• Venting port of alumina on the top of the chamber

Power

• 4 kW
• AC 208V-240V single phase, 50/60 Hz
• Note: Power cable is included without a plug. Please install a plug by yourself or click the link below the picture to choose a plug according to your country or your lab requirement

Working Temperature

• Max. 1050°C ? 2 hours
• 1000°C continuously
• Temperature Accuracy: +/- 1° C
• Heating Rate: ? 10°C / min

• FA-YD518P-AG temperature controller is included
• Proportional–integral–derivative control (PID control) and auto-tune function
• 30 segments programmed with ramping, cooling, and dwelling steps
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• Default RS485 PC communication port
• Thermocouple: K Type

• Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) .
• Labview-Based Temperature Control System (EQ-MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
• Note: The software is only compatible with MTI’s Temperature Controller

Shipping Weight & Dimensions

• 262 lbs
• 48" x 40" x 40"

Warranty

• One-year limited warranty with lifetime support.  (Consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below.)
• ATTENTION: Any damages caused by the use of corrosive and acidic gases are not under the coverage of MTI One Year Limited Warranty.

• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at an extra cost

Application Notes

• For preserving the longevity of the furnace life, we recommend the heating rate not to exceed 10°C /minThe cooling rate shall also not exceed 10 °C /min
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
