MTI  |  SKU: EQ-KSL-1200X-BF6

1000°C Seven Zones Conveyer Belt Furnace (W150x L2000 mm) w/ Temperature Control - EQ-KSL-1200X-BF6

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1000°C Seven Zones Conveyer Belt Furnace (W150x L2000 mm) w/ Temperature Control - EQ-KSL-1200X-BF6

MTI

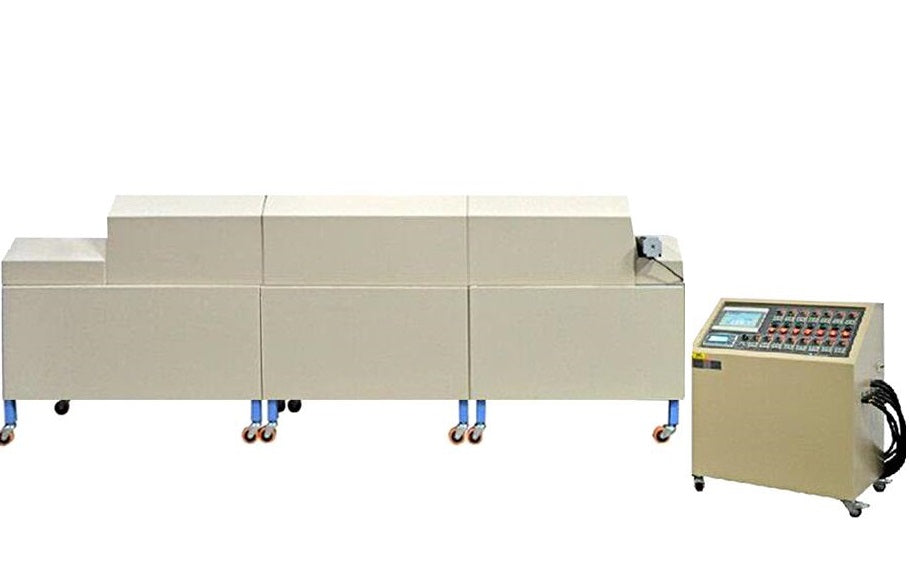

The EQ-KSL-1200X-BF6 is a 6'' wide conveyor belt furnace with the concept of a continuous process of various materials. It is a perfect pilot-scale manufacturing tool for thick film, the electronic component firing process, photovoltaic cells pre/post-fabrications, and sintering of ceramics & metals materials. Working pieces are carried directly on a mesh type belt and been heat treated/process through the heating modules under a protective gas atmosphere.




SPECIFICATIONS:

Main Features
  • Max. Working Temperatures to 1000°C
  • The highest quality Kanthal  heating wire and Omega thermal couple
  • Automatic feed loading and product unloading
  • A large touch screen temperature controller provides individual temperature programming for the seven heating zones
  • Dual thermocouple temperature monitoring & control mechanism
  • Easy to install the three modules

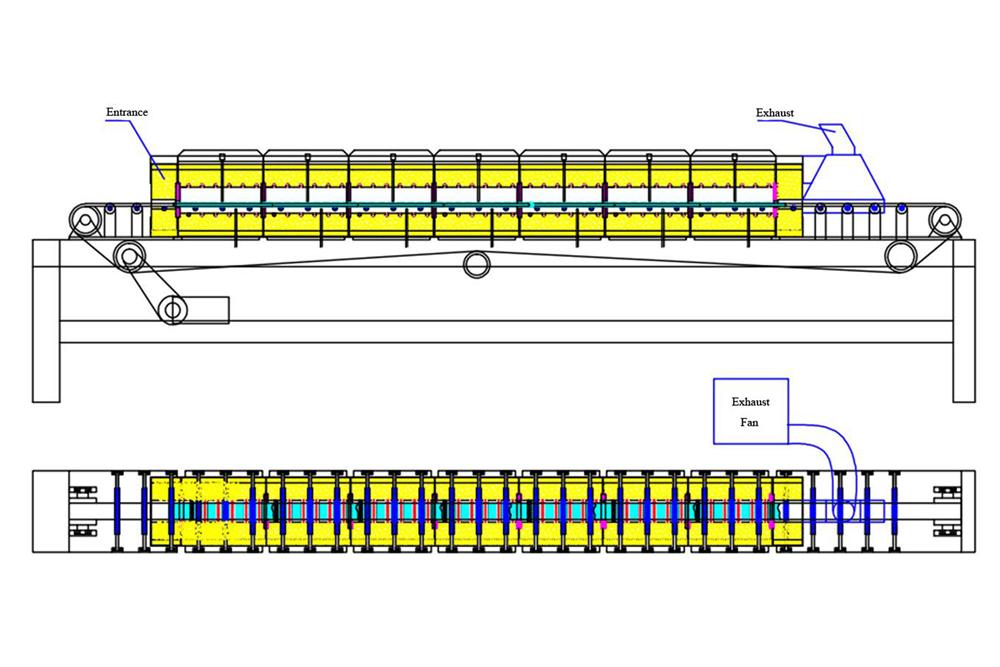

Furnace structure
  • Total of seven heating modules.
  • High purity fibrous alumina insulating systems between each module for the max energy saving
  • Dual-layer insulation design ensures a casing surface temperature < 70C
  • 300mm Long cooling section is integrated at the end section of the furnace
  • Mesh type belt is supported in the furnace by a series of quartz supports.
 Power
  • AC 208-240V Three Phase, 50/60 Hz,
  • Current: ~50A for each phase.
  • 19 KW  Max. (~3KW for each zone)
  • The power cord is included without a plug.


Temperature Control
  • Independent temperature control unit which allows a remote operation
  • Touch Screen Controller allows individual temperature control for the seven zones
  • Max. Working Temperature: 1050°C
  • Continuous Working Temperature: 900°C
  • The heating Rate is up to 10/min
  • 15 pcs K Type Thermocouples are installed ( 7 T/C for control and 8 T/C for the monitor )
  • Temp. Control Accuracy: +/-1
Heating Zone
  • Seven independent heating zones, each heating zone length 300 mm ( 11.8")
  • Total zone length: 2100 mm ( 82.7'' )
  • Heating Zone width: 8" ( 200 mm )
 Max. Sample Size allowed 6'' W x 1'' H
Conveyor Belt and Main Entrance
  • Mesh type conveyor belt, 130mm Wide X10 mm Thick X 6200mm Long
  • 6'' Wide x 2" Height Entrance (Can be increased to 12'' Wide upon request)
  • Conveyor Speed:  10 - 100 mm/second variable
 Furnace Dimension Furnace: 3200mm L X 700mm W X 1500mm H
Power Supply: 1000mm L X 600mm W X 800mm H
Warranty One year limited warranty for electrical parts. (Consumable parts such as processing tubes, O-rings, and heating elements are not covered by the warranty, please order the replacement at related products below.)
Compliance
  • CE Certified
  • NRTL / CSA Certification is available upon request, additional charges will apply

Application Notes


Furnace in operation
  • Metal and ceramic sintering
  • The thick film firing process
  • Fast drying and curing
  • Calcination
  • Carbonization
  • Gas-solid reaction
  • Purification
  • Metallization process of solar cell fabrication
  • Customizations Available:
    • Heating models are modulized, 300mm ~2100mm L is available upon request.
    • Heating zone width can be increased up to 12''
