1200oC Electrolytic Furnace with Electrodes for Molten Salts - VEF-1200

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1200oC Electrolytic Furnace with Electrodes for Molten Salts - VEF-1200

MTI

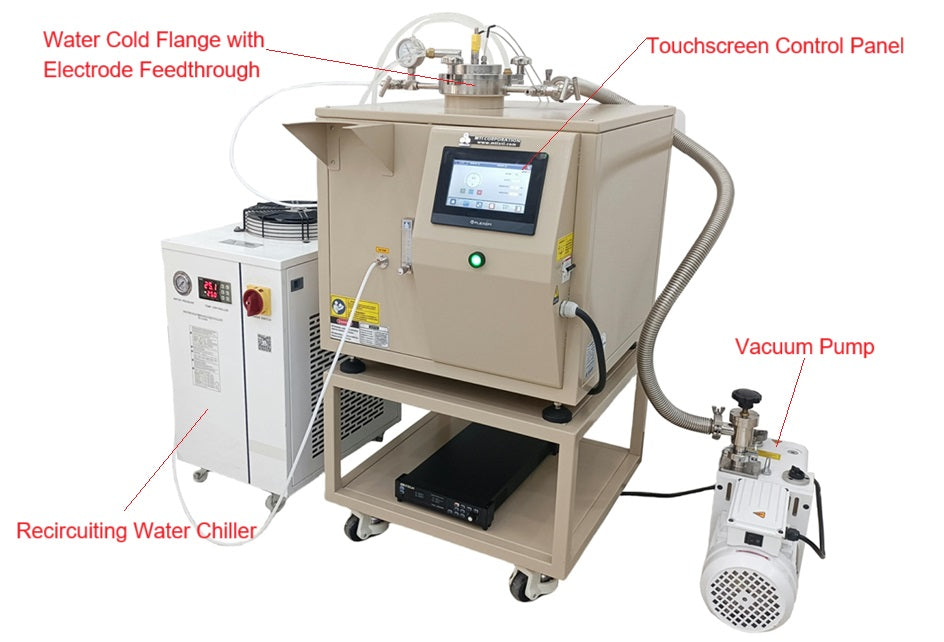

VEF-1200 is an electrolytic furnace for molten salts with maximum working temperature.

SPECIFICATION:

 Features

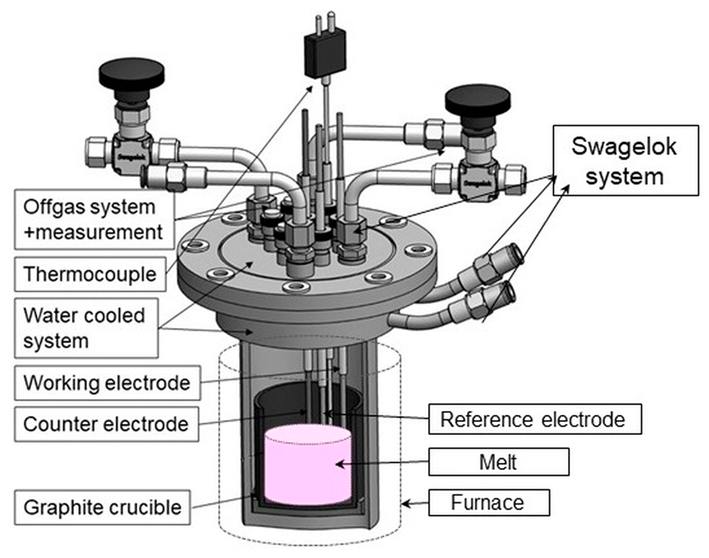

  • The electrolytic furnace is designed based on the concept in the picture below.

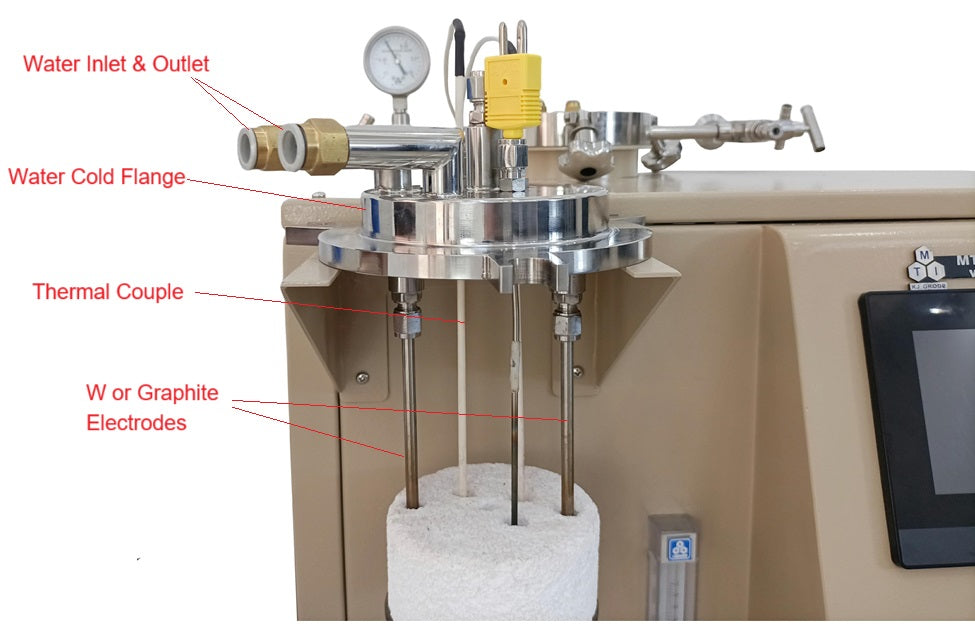

  • Three graphite electrodes ( 6 mm diameter, airtight) are built on top of the flange with water-cooling
  • Tungsten electrodes are available upon request





Box Furnace
  • Power :
    • AC220V 50/60HZ
    • 4kW Max
  • Specifications
    • Continues temperature: 1100℃
    • Heating rate: ≤10℃/min
    • Chamber size: Ф240 * 245mm
    • Single-ended quartz tube: Ф200 * 425mm
  • Temperature controller
    • PID automatic control and auto-tune function
    • ±1℃ accuracy
    • 50 programmable segments for precise process
    • Built-in protection for over-heated and broken Thermal couple.
Optional Water Chiller
    Click for details
  • Water cooling is required to cool the vacuum flange.
  • Please click the picture left to order a recirculating water chiller
Certificate
  • CE Certified
  • NRTL Certification is available upon request, additional charges will apply
Optional Vacuum Pump
  • Limited by the vacuum pump (Clicking the pictures to order)
    • 50 m-torr can be achieved by the mechanical pump
    • 10^-5 torr can be reached by the turbopump
Mechanical  Turbo-pimp
Optional Water Chiller
    Click for details
  • Water cooling is required for cooling the vacuum flange.
  • Please click the picture left to order a recirculating water chiller
DC Power Supply (Optional)
  • A programmable DC power supply is optional up to 30V DC, and 70A Max
