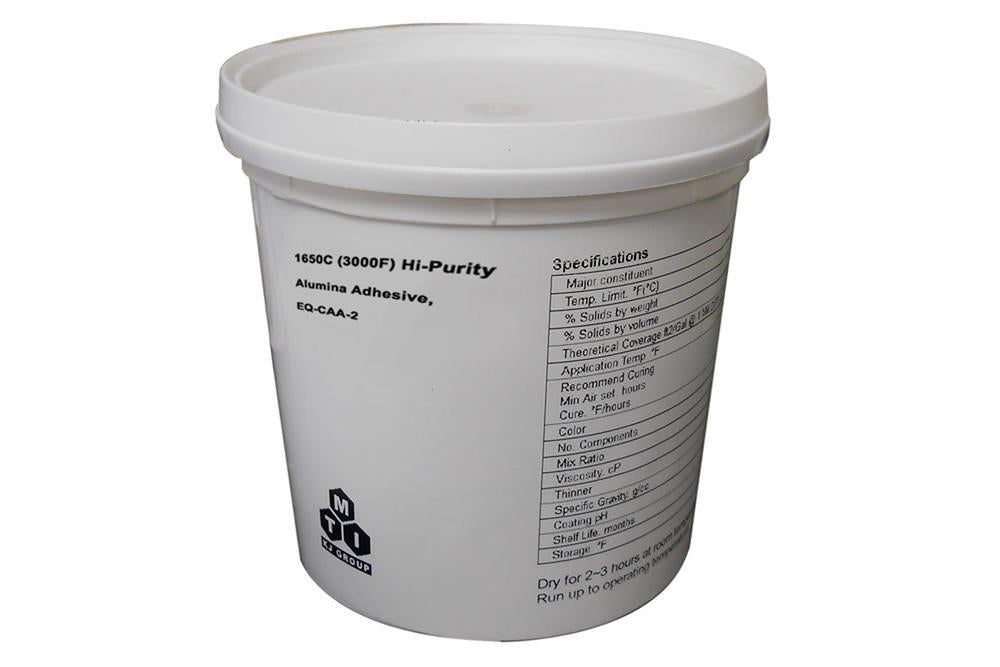

1650°C (3000F) Hi-Purity Alumina Adhesive for Bonding and Repairing High Temperature Furnace - EQ-CAA-2-LD

How to use

1. Stir and mix thoroughly.
2. Apply for bonding and protecting thermocouples, heat sensors, critical heating elements, laminating, coating at elevated temperature.
3. Offer high bond strength, solvent and electrical resistance.
4. Bonding alumina, metals, ceramics, graphite, and glass.
5. Air dry 4 hours minimum.
6. Post cure 2 hours at 150^oF (65^oC) followed by 4 hours at 392^oF (200^oC) for additional moisture resistance.
7. It is excellent for repairing inside the chamber of MTI Box furnances.

• This product is pre-mixed. No additional thinner and hardener is necessary
• Please don't use it as refractory coating for fibrous ceramic board, which may cause surface cracking
• For coating please choose 1760C (3200F) Hi-Purity Alumina Coating at the related products below
• Routine stir is necessary after opening the box
• Shelf life: 6 months at room temperature

Physical Properties

• Max. Use Temp.: 3000°F (1650°C)
• Base Al2O3
• Compressive Strength: 3,000 psi
• Flexural Strength: 1,100 psi
• Dielectric Strength: 200 volts/mil
• Specific Heat: 0.24 BTU / # oF
• Volume Resistance: 10^8
• Thermal Conductivity: 15.0 BTU in/hr. oF ft.2
• Thermal Expansion: 4.5 x 10-6/ F
• Color: White
• Consistency: Creamy Paint
