Induction Melting System in Glovebox with Gas Purification (1PPM) - SP-MGB

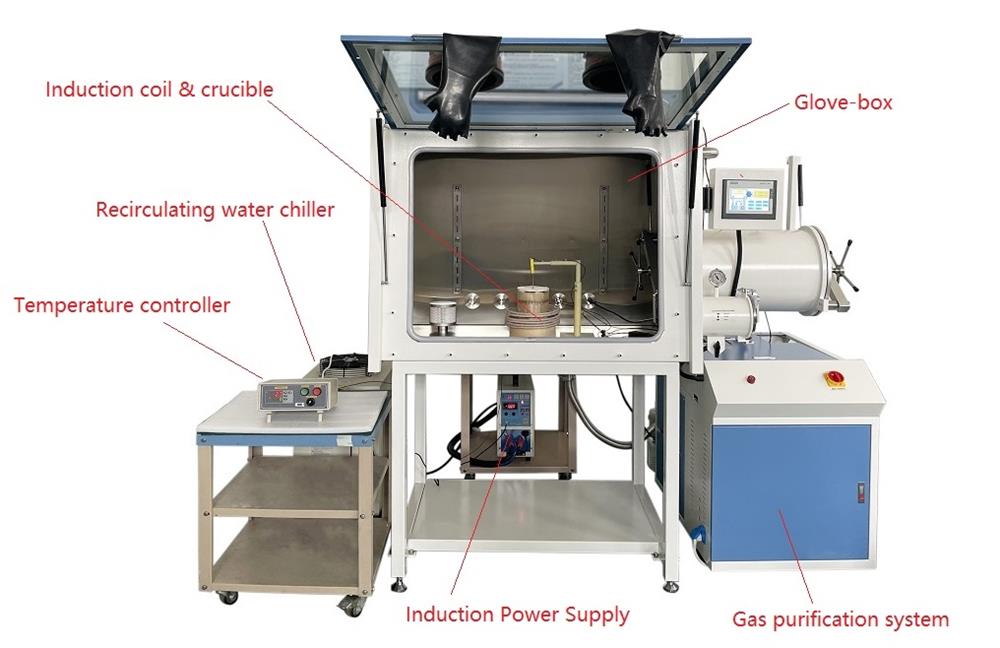

SP-MGB is an induction meting system in the standard glovebox with gas purification (O2 & H2O < 1 PPM) and a programmable temperature controller. It is excellent for melting air-sensitive alloys, such as Al, Mg, and Li, etc. Its melting temperature range can reach from 750ºC to 1700ºC by choosing different induction power supplies and thermal couples.

SPECIFICATIONS:

Induction Heaters   Pic. 1                      Pic.  2	Two options of induction power supply 80KHz, 7KW, 208- 240VAC, 50/60 Hz, single-phase, for max working temperature of 1200ºC                    Click Pic. 1 for detail specifications) 80KHz, 15KW, 208- 240VAC, 50/60 Hz, three-phase, for max working temperature of 2200ºC                                  Click Pic. 2 for detail specifications) Must inform us of your max. working temperature when you ask a quotation
Glovebox	Glovebox Case is made of stainless steel 304 with 3 mm thickness Chamber dimension: 1200 mm L x 740 mm W x 900 mm H Openable front window panel (tempered glass, 8 mm thick) Gas purification system with automatic purging and regeneration function  Gas purification: O2 < 1 ppm and H2O < 1 ppm Click Pic left to see detailed specification)
Induction Coil & Crucible	Water cold Induction coil with 200 mm ID is placed inside the glovebox via feedthrough (Pic. 1 & 2 ) Graphite crucible with the dimension of ?114 OD x ?100 ID x 142 H (mm) is included  (Pic. 3) A thermal couple with a support fixture is included for controlling the melting temperature 5" OD Quartz tube chamber is available for vacuum function at the extra cost (Pic. 4) K type T/C for 750ºC - 1200ºC B type T/C for 1200ºC - 1700ºC C type T/C for > 1700ºC , upto 2200ºC  Pic. 1   Pic. 2 Pic. 3 Pic. 4
Temperature Controller	Precision digital temperature controller with Automatic PID tuning 30 segments programmable for controlling heating and cooling rate as well as dwell time Overheating & thermocouple failure protection +/- 2 ºC temperature accuracy One the thermal couple is included and T/C type is dependent on max. melting temperature
Water Chiller	Temperature range: 5 - 30°C Water Flow Rate: 58 L/min Water Tank: 15 Liters made of stainless steel Note: It is recommended to use a specific coolant to get the best performance. It is normal to wait a couple of minutes for cooling down after several trials of heating Note: the input voltage for the water chiller is 220V
Warranty	One year limited warranty with lifetime support Consumable parts such as processing tubes, o-rings, and heating coil are not covered by the warranty
Compliance	NRTL or CSA Certification is available upon request at an extra cost
