MTI  |  SKU: NH20-25018536

20 pcs 2" Die / IC Tray (40 Pockets of 250x185x36 mil or 6.35x4.69x0.91 mm) - NH20-250-185-36

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (40 Pockets of 250x185x36 mil or 6.35x4.69x0.91 mm) - NH20-250-185-36

MTI

Specifications:

TYPE:                                                NH20-250*185-36
Material:                                  Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.):    109 - 1011
Temp. Limit:                             70 centigrade

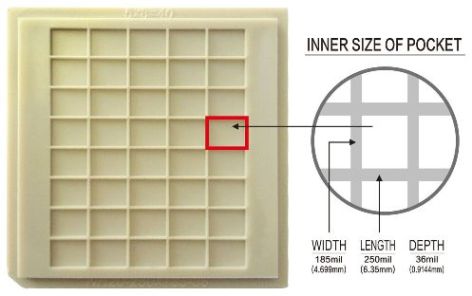

POCKET DETAILS:

Pocket Size(mil):    L250*W185*D36
Pocket Size(mm):   L6.35*W4.69*D0.91
Array (Capacity):    5*8=40
Package:              sold in 20 pcs per box

OVERALL TRAY SIZE
Size        = 50.67mm
Height     = 3.94mm
Flatness   = 0.30mm

Note:

  • This series provides a safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp , please see IC Tray & Plastic Box below
