MTI  |  SKU: NH20-10511028

20 pcs 2" Die / IC Tray (200 Pockets of 105x110x28 mil or 2.67x2.79x0.71 mm) - NH20-105-110-28

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (200 Pockets of 105x110x28 mil or 2.67x2.79x0.71 mm) - NH20-105-110-28

MTI

Specifications:

TYPE:                                     NH20-105*110-28
Material:                                 Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.)):  109 - 1011
Temp. Limit:                            70 centigrade

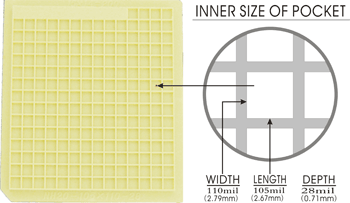

POCKET DETAILS:

Pocket Size(mil):   L105*W110*D28
Pocket Size(mm):  L2.67*W2.79*D0.71
Array (Capacity):  14*15=200.
Package:             sold in 20 pcs per box



OVERALL TRAY SIZE
Size = 50.67mm
Height = 3.94mm
Flatness = 0.30mm


Note:

  • This series provides a safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp,  please see related product below
