MTI  |  SKU: NH20-202015

20 pcs 2" Die / IC Tray (1600 Pockets of 20x20x15 mil or 0.51x0.51x0.38 mm) - NH20-20-20-15

€17,23

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

20 pcs 2" Die / IC Tray (1600 Pockets of 20x20x15 mil or 0.51x0.51x0.38 mm) - NH20-20-20-15

MTI

Specifications:
TYPE:                                      NH20-20*20-15
Material:                                   Natural ABS With ESD Coating
Surface Resistivity (ohms/sq.)):    109 - 1011
Temp. Limit:                              70 centigrade

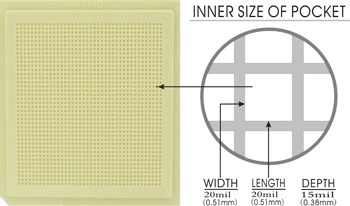

POCKET DETAILS:
Pocket Size(mil):         L20*W20*D15
Pocket Size(mm):        L0.51*W0.51*D0.38

Array (Capacity):       40*40 =1600

Package:              sold in 20 pcs per box


OVERALL TRAY SIZE
Size = 50.67mm
Height = 3.94mm
Flatness = 0.30mm

Note:

  • This series provides a kind of safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
  • For cover and clamp,  please see related product below
