20 pcs 2" Die / IC Tray (16 Pockets of 411x411x30 mil or 10.44 x10.44 x 0.76 mm) - NH20-411-411-30

• TYPE:                                         NH20-411*411-30
• Material:                                      Natural ABS With ESD Coating
• Surface Resistivity (ohms/sq.)):       10⁹ - 10¹¹
• Temp. Limit:                                 70 centigrade

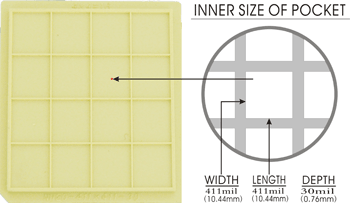

POCKET DETAILS:

• Pocket Size(mil):      L411*W411*D30
• Pocket Size(mm):     L10.44*W10.44*D0.76
• Array (Capacity):     4*4=16

• Size       = 50.67mm
• Height    =   3.94mm
• Flatness =   0.30mm

Packing:      20pcs per box


• This series provides a  safe and convenient packing and delivery solution for bare die, CSP, optoelectronics and other microelectronics devices.
• For cover and clamp, please click the picture below to order
•
