MTI | SKU: RC-SS50

High Pressure Reactor with PTFE lining Up to 220C & Max 3-10 Mpa for Rotary Oven with 50 or 100 ml option - RC-SS-XX

Name: High Pressure Reactor with PTFE lining Up to 220C & Max 3-10 Mpa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
Brand: MTI
SKU: RC-SS50
Price: 458.85 EUR
Availability: InStock

€458,85

Vessel Capacity

Product variants

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

High Pressure Reactor with PTFE lining Up to 220C & Max 3-10 Mpa for Rotary Oven with 50 or 100 ml option - RC-SS-XX

MTI

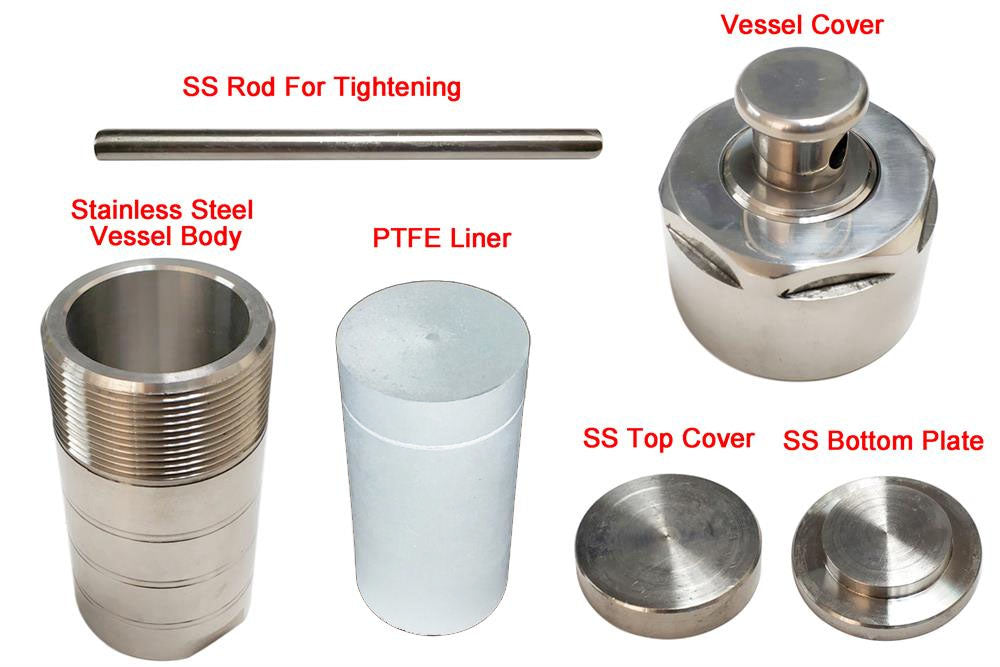

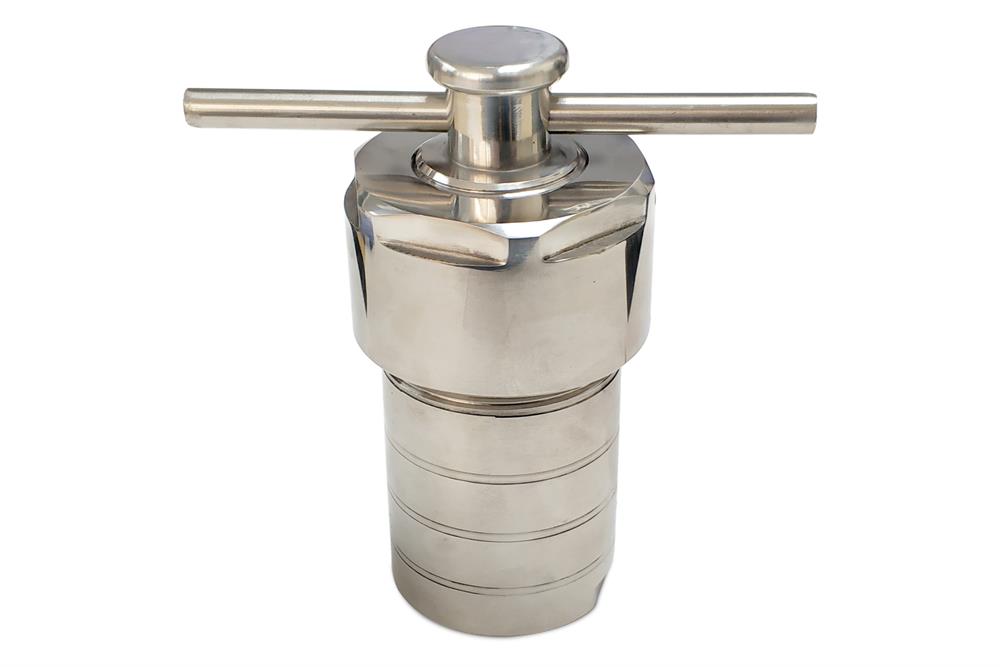

RC-SS-50 is one small Stainless Steel 304 high-pressure reactor with PTFE lining. It is designed for MTI multiple vessel rotary oven EQ-BGP-R8. It can reach a pressure up to 13 Mpa and a temperature of up to 200°C. It is used for homogeneous hydrothermal processing. The reactor size is 50ml. Please select the vessel capacity in the product options.

Specifications:

Material	The standard reactor is made of Stainless Steel 304 with PTFE lining SS 316 reactor is available upon request at extra cost

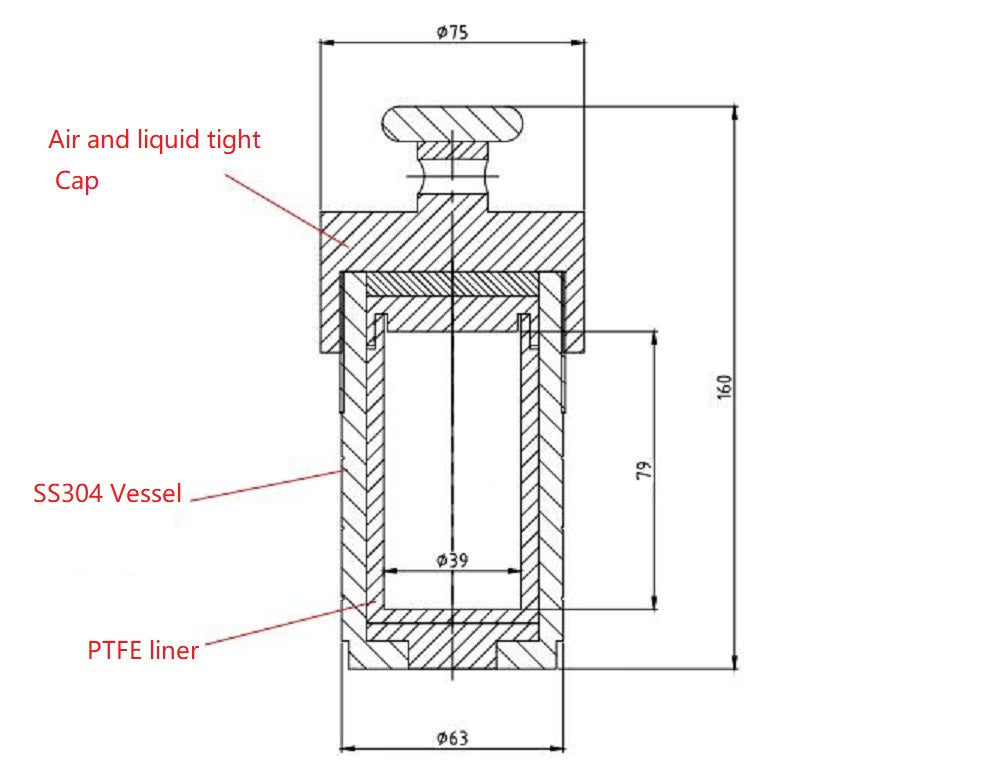

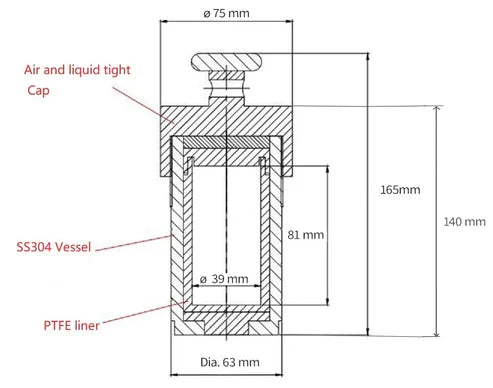

Capacity & Dimension	Three types of vessel capacities are available. Please click the product options bar to order 50 ml (3 mPa Max): 8 vessels max. in the rotary oven (Click on Pic. 1 below for the Reactor Drawing) Weight: approx. 1.65 kg (empty) 50 ml (10 mPa Max): 8 vessels max. in the rotary oven (Click on Pic. 1 below for the Reactor Drawing) Weight: approx. 2 kg (empty) 100 ml vessel for a customized 6 reactors rotary oven. ( Click Pic 2 for dimension drawing Pic. 1 (50 ml size) Pic. 2 ( 100 ml size )
Max. Working Temperature	RT - 200 °C Max
Working Pressure	13 MPa or 2000 PSI
Application Note	Due to the high-pressure gas output from the gas cylinder, it requires a high-pressure gas pressure regulator to reduce the output pressure, avoid overpressurizing the furnace chamber and ensure a safe operation. Click here to learn the installation of a gas regulator.
