MTI  |  SKU: HVF-1600X-12L

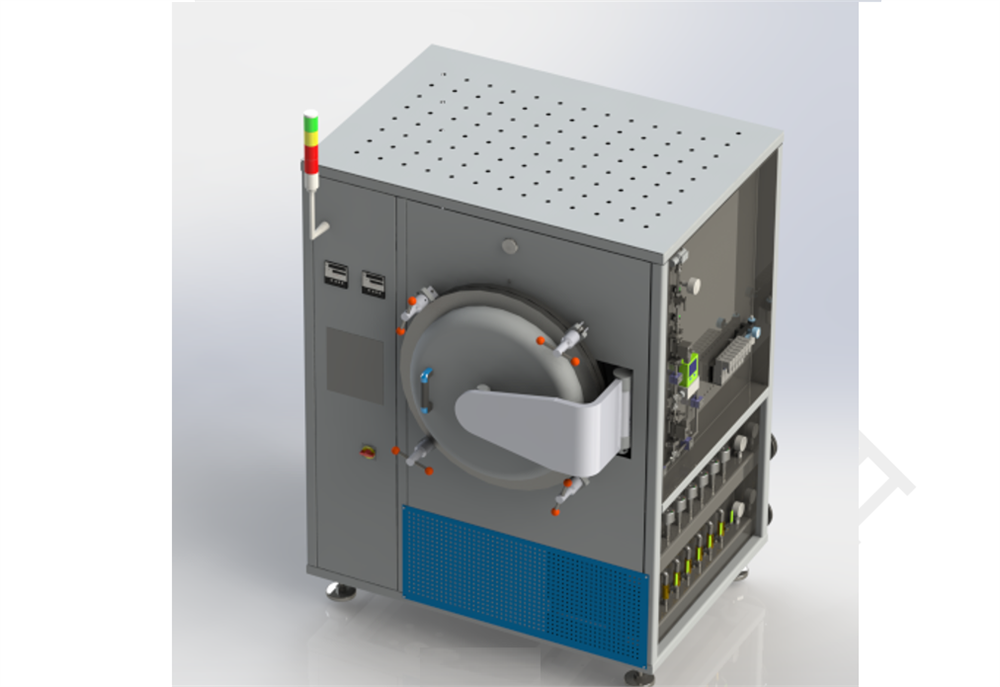

1600°C Cold-wall High Vacuum Furnace (Heating Area 200×200×300mm) - HVF-1600X-12L

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1600°C Cold-wall High Vacuum Furnace (Heating Area 200×200×300mm) - HVF-1600X-12L

MTI

HVF-1600X-12 is a cold-wall front-loading high vacuum furnace up to 1600 with all metallic components inside the vacuum chamber. It provides a clean and well-defined high vacuum condition for sintering. The furnace is resistance heated by molybdenum coils inside a water-cooled stainless steel vacuum chamber. The effective heating area is 200×200×300 mm for vacuum and inert conditions. The system can also be modified for hydrogen gas upon request.

SPECIFICATIONS:
  Power
  • 480VAC, 60 Hz, 3p or 380VAC, 50 Hz, 3p
  • 60 KW Max.
  • 10-foot power cable is included without a plug
             Vacuum chamber
            • 304 SS water-cooled vacuum chamber
            • ISO100-K vacuum port for vacuum generation.
            • Vacuum level:  <1e-6 torr at room temperature.
            • 1/4 gas inlet and outlet with valves
            • Two float flowmeters.

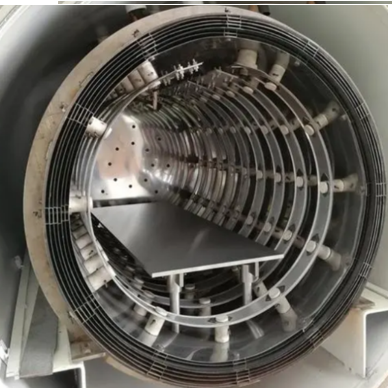

             Heating chamber

            • 1 set of Mo heating coils
            • Multilayer thermal reflection layer made of refractory alloy
            • Effective heating zone: 200x200x200 mm (12 L)
            • One sliding sample stage
            • Mo heating coils can only be used under high vacuum (<1e-4 torr) or Ar ambient.
             Temperature control

            • Eurotherm 3000 programmable temperature controller with over-temperature protection
            • Touch screen control panel for easy setup and recording of the temperature profile
            • B type of thermal couples
            • Temperature accuracy: +/- 0.1 °C
            • Max. working temperature 1600°C
            • Max. heating rate: 20°C / minute
            • RS 485 port for PC remote control via iTools software.

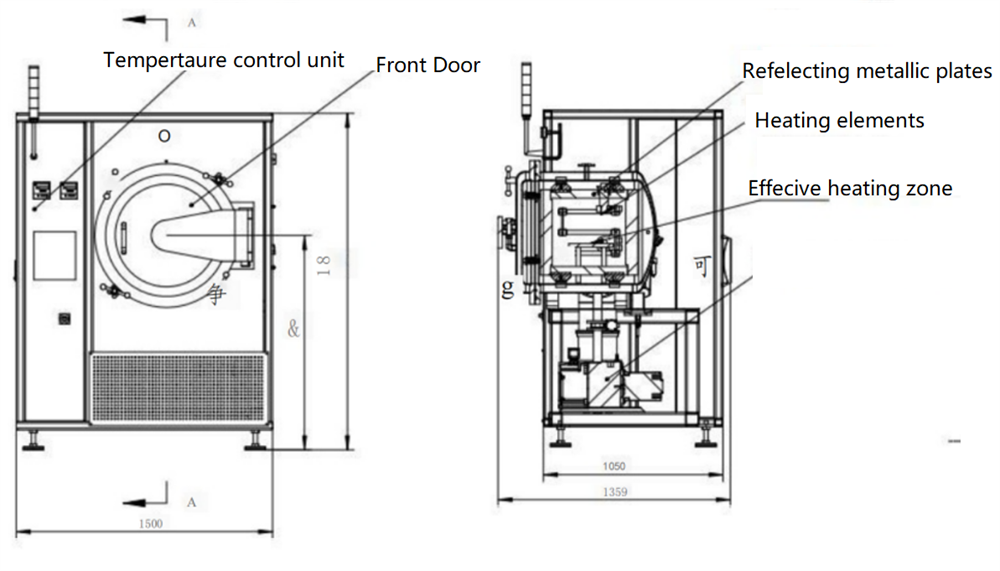

             Dimension
              Water Chiller

            • KJ6300 water chiller
            • Temperature range: 5 - 30°C
            • Water Flow Rate: 116 L/min
            • Water Tank: 45 Liters made of stainless steel
              Vacuum Pump (optional)

            • 260L/s turbo pump with ISO100 port
             Hydrogen Disposal (optional)
            • The furnace can be used as a hydrogen furnace  with MTI hydrogen burning and leak detection system
            • Click the picture left to order at the extra cost.
            • Without a safe hydrogen protection system, you can not run the furnace under hydrogen gas
             Compliance
            • CE certified
            • NRTL or CSA certification is available upon request at the extra cost
             Warranty
            • One-year limited warranty with lifetime support
