1500°C High Vacuum Tube Furnace w/ 110mm ID Tube - GSL-1500X-120

Name: 1500°C High Vacuum Tube Furnace w/ 110mm ID Tube - GSL-1500X-120
Brand: MTI
SKU: GSL-1500X-120
Availability: InStock

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1500°C High Vacuum Tube Furnace w/ 110mm ID Tube - GSL-1500X-120

MTI

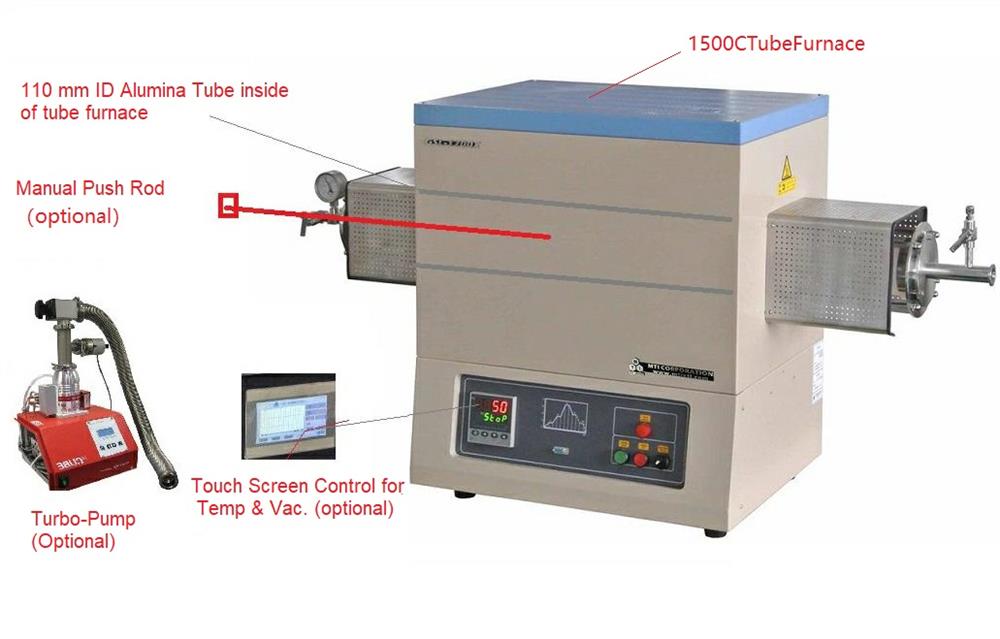

GSL-1500X-120 is a bench-top 110mm ID. tube furnace with SiC Heating Elements. A pair of vacuum sealing assemblies is installed to achieve 10-6 torr vacuum. It is controlled by a 30-segment programmable digital controller with an accuracy of +/-1 ^oC. This tube furnace has a max. working temperature up to 1500ºC.

SPECIFICATIONS

Furnace Structure

Double-layer steel casing with air cooling
Two cooling fans inside to keep case temperature < 55ºC
High purity Alumina refractory chamber
One piece of High purity Alumina tube is included with 120 OD x 110 ID x 1200mm L) A
The alumina tube is consumable and no warranty is covered. Please click the picture to order spare

Power

Max. 7 KW

Voltage

Single Phase, 220V AC, 50/60 Hz (40A breaker required)

Max. Working Temperature

1500ºC < 1 hour

Continuous Working Temperature

800-1400ºC

Max. Heating/ Cooling Rate

5ºC / min

Heating Zone

457 mm (18")

Constant Temperature Zone

150 mm (6") within +/- 1ºC

Heating Elements

SiC

Temperature Controller

Eurotherm 3000 Series optional

PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired
30 programmable segments for precise control of heating rate, cooling rate and dwell time
Please click here to learn why SCR is more accurate than SSC (Solid state relay)
Built-in over-temperature alarm and protection allow for operation without the attendant
+/- 1 ºC temperature accuracy
RS485 Communication Port
Optional:

The furnace may be operated by PC by installing a control module. Please order an MTS-02 control module at extra cost.
If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems. For more information please click here.
Eurotherm 3000 Series Programmable Temperature Controller is available at the extra cost with

1 program, 24 segments programmed with ramping, cooling, and dwelling steps
Temperature Accuracy: ± 0.1ºC

Sealing Flanges

One pair of sealing flanges with double silicone high-temperature O-rings is included
Right side: KF 25 vacuum port
Leftside: 1/4" NPS fitting
Two SS needle valves and one dial vacuum gauge are installed on flanges for immediate use

Vacuum Level

Limited by the vacuum pump

50 more can be achieved by the mechanical pump
10^-5 torr can be reached by a molecular pump

The vacuum pump is not included, please order separately at the related products section

Power Plug & Cable

10 feet long 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by clicking the picture below-left
The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store

Dimensions

590 L x 490 W x 760 H mm

Net Weight

168 kg (370 lbs)

Shipping Dimensions

52" L x 40" W x 50" H

Shipping Weight

530 lbs

Warranty

One year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below)

Optional

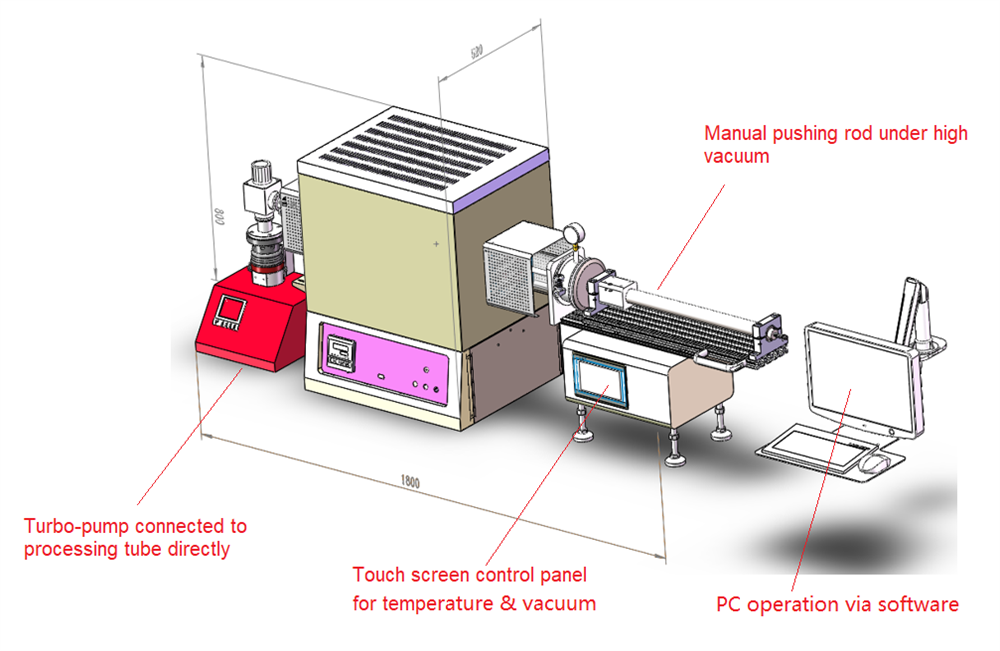

A manual push rod for moving the crucible to the hot zone under a high vacuum is available upon request
The touch screen control panel is available at the extra cost, which can integrate temperature control and vacuum control into one interface and record the processing profiles
Soft for PC is available uponrequest

Compliance

CE Certified
NRTL or CSA certification is available upon request at extra cost.

Application Notes

In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use, please click here to learn how.
Vacuum pressures may only be safely used up to 1500°C
The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 MPa (absolute pressure)
Attention: it is necessary to install the gas pressure regulator to reduce the output pressure 3 PSI, avoid overpressurizing the furnace chamber, and ensure safe operation. Click here to learn the installation of a gas regulator.
The flow rate for gases should be limited to < 200 ml/min) for reducing thermal shocks to the tube
Two fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube (Ceramic blocks must be fully inserted into the furnace chamber before heating).

Operation Video

How to set up the furnace video	Controller Operation Demo Video
	<
