MTI | SKU: UNIPOL300

Mini (3") Automatic Grinder/ Polisher with Complete Accessories - Unipol-300

Name: Mini (3") Automatic Grinder/ Polisher with Complete Accessories - Unipol-300
Brand: MTI
SKU: UNIPOL300
Price: 3379.65 EUR
Availability: InStock

€3.379,65

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Mini (3") Automatic Grinder/ Polisher with Complete Accessories - Unipol-300

MTI

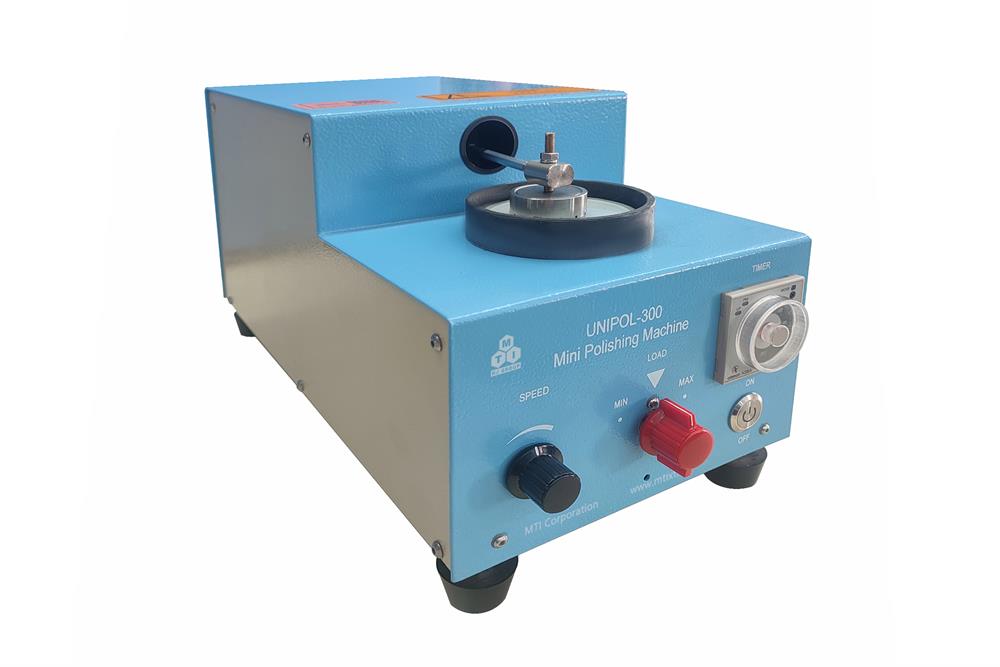

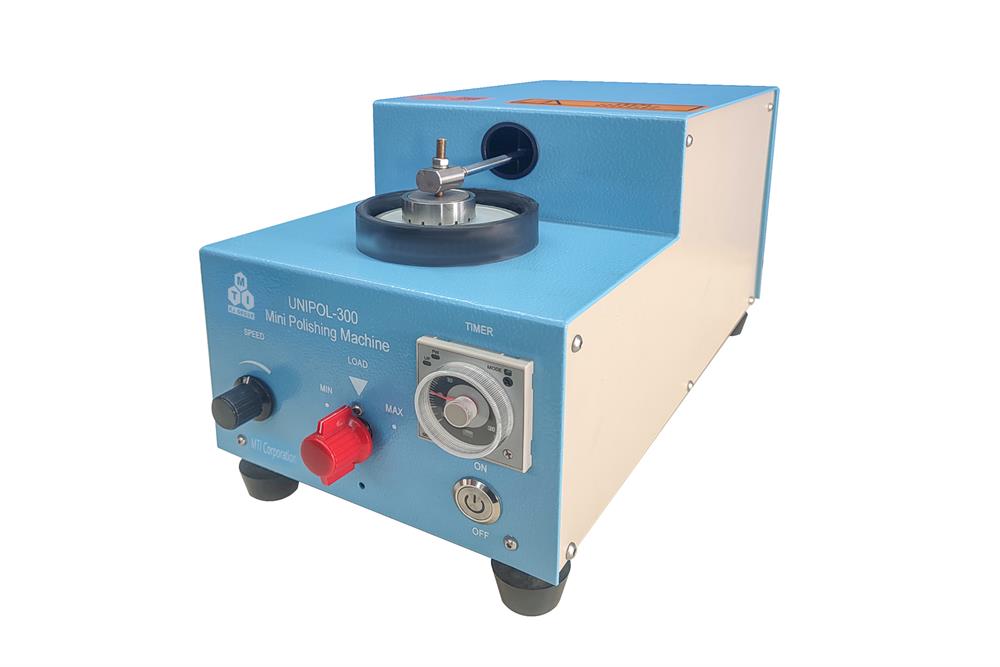

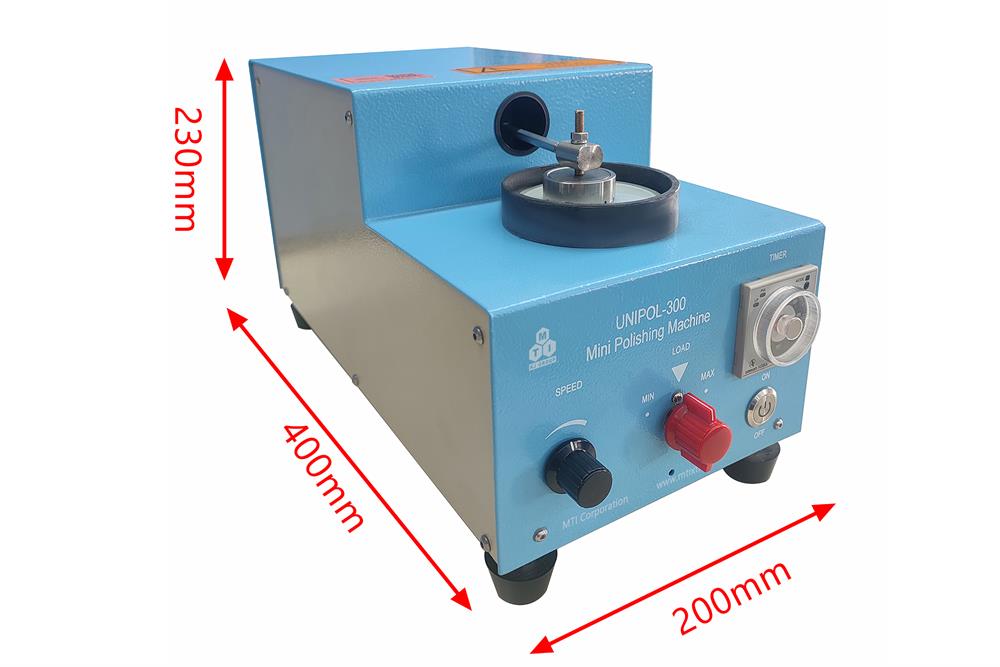

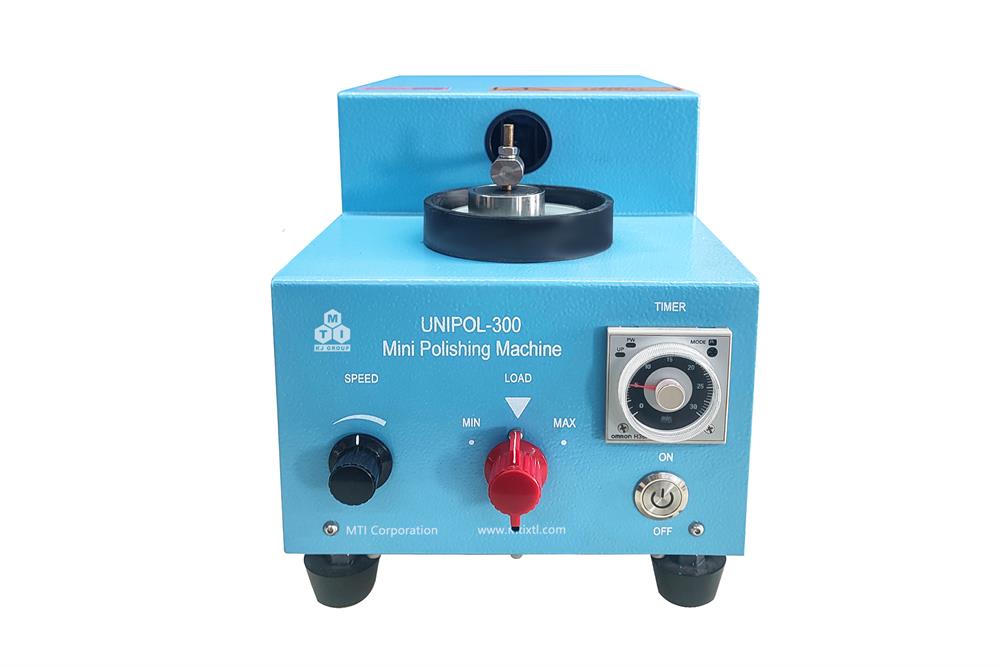

EQ-Unipol-300 is an automatic mini-grinder / polisher for preparing TEM, metallographic samples in a single mount. The machine equips with 3" fix lapping plate, variable sample moving speed, adjustable pressure load and selectable time switch to achieve attention free polishing.

Unipol 300 simulates human hand to grind and polish sample via randomly moving sample holder on top versus fixed 3" plate. It is very suitable for preparing < 1" Dia specimen in low volume laboratory for material research, failure analysis, and medical test. By combining our SYJ150 low-speed diamond saw, you can own a processing lab on one desk to prepare versatile specimen at an affordable budget.

SPECIFICATIONS

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Max. Moving Weight of Specimen	200g
Max. sample size	25 mm Dia. x 20 mm H
Features 3" glass lapping plate (front & back)	Easy to use and affordable Variable moving speed for the sample holder on top Adjustable pressure load by a spring inside from 0-5 Newton Automatic timer setting from 0 to 99 hours
Accessories	Two 1" Dia. sample holders: One holder is for the flat sampleas in the first picture shown below, and the other one is for inserting bulk samples ( Pic. 1 & 2) Compressing or cold mount sample can be used as sample holder (make a hole in round sample mount center, put the moving rod on the hole) One rubber polishing Collar with one 3" glass lapping plates is included. Extra rubber Collar and 3" glass lapping plate are available as options. See the 3rd and 4th pictures or Click Rubber Polishing Collar and 3" Glass Lapping Plate to order Three 3" Poromeric Polishing Pad (PSA) for Final polishing is shown in the 5th picture 1 set of 3 syringes (10g) diamond paste with 0.25, 1.0, and 3.0-micron grit. (Please click the 6th picture below to order extra.)
Compliance	CE Certified NRTL certification is NOT available temporarily.
Application Note	Combine with MTI 's MI Melter, low speed saw, you can build an integrity small metallographic lab at a low cost Melting Cutting Amounting Polishing Microscope

STANDARD PACKAGE

P/N	Item Name	Qty.
EQ-Unipol-300	EQ-Unipol-300 Grinding / Polishing Machine	1
UP-300-02	Rubber Polishing Collar	1
UP-300-03	3" Glass Lapping Plate	1
UP-300-04	1" dia. sample holder for flat sample	1
UP-300-05	1" dia. sample holder for inserting bulk sample	1
UP-300-06	3" Poromeric Polishing Pad (PSA) for Final polishing	3
UP-300-07	AC power cord	1
UP-300-08	Operation manual	1
UP-300-09	1 set of 3 syringes (10g) diamond paste with 0.25, 1.0, and 3.0 micron grit	1 set
