MTI  |  SKU: UNIPOL1500S16

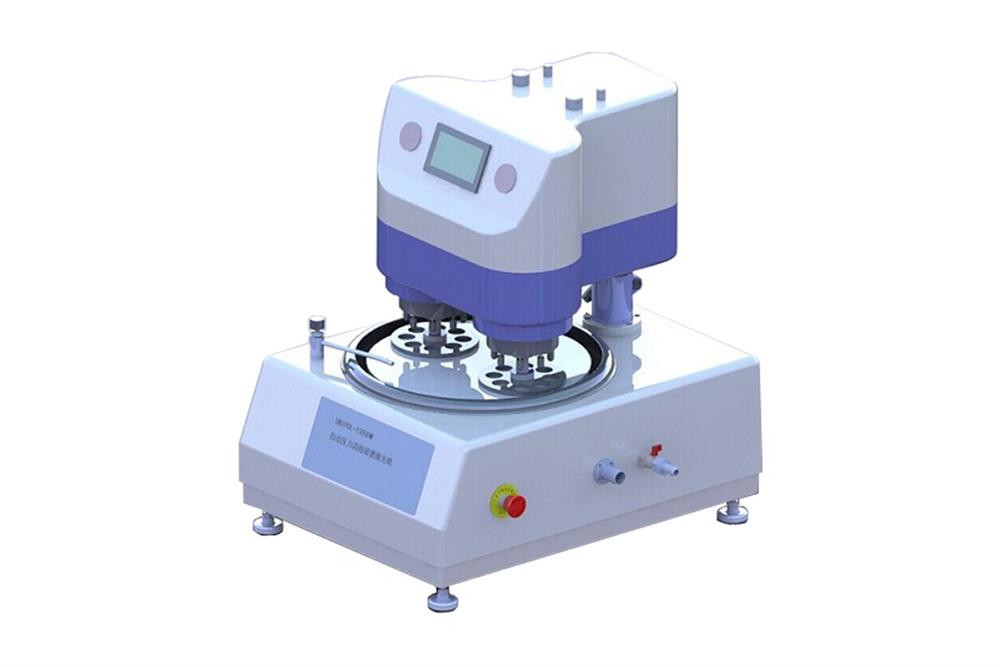

16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16

MTI

Unipol-1500-S is a 15" automatic pressure-controlled lapping and polishing machine with two sample holders which can polish 16 samples (1" diameter Max.) at one batch.  It is an excellent tool for the high-throughput research of alloy metallography. It can be used for lapping or polishing various material samples, such as metal, crystal, glass, ceramic, refractory, rocks, and polymers. The user can adjust the pressing force between the top-loading plate and the bottom mater lapping plate and set the polishing timer to achieve automatic alloy polishing.

SPECIFICATIONS
Features
  • One 15" Dia. mater lapping plate (bottom) and two sample plates (top), which can hold 16 pcs sample (<25 mm Dia.) at one batch
  • Color touch screen controller for polishing parameter settings
    • Adjustable the pressing force (0.5 - 20 kg force) for different polishing conditions and materials
    • Adjustable the speed for both sample loading plate and polishing plates
    • Adjustable the time for polishing
  • Automatic slurry feeding with controlled speed is available with an optional slurry feeder
Power
  • 208 - 240 VAC, 50 / 60 Hz
Power Consumption
  • 1500W Max.
Sample Loading Plate (Top)
  • Size: 150 mm Dia. x 2   ( 8 sample holders for each plate )
  • Speed: 10 - 80 rpm adjustable (10 - 50 rpm recommended)
  • Standard sample holder size 1“ diameter
  • Total  16 samples
Polishing Plate (Bottom)
  • Size: 380 mm Dia.
  • Speed: 20 - 240 rpm adjustable (10 rpm increment)
Pressing Force
  • 0.5 - 20 kgf (0.5 - 15 kgf recommended)
  • 0.5 kgf increment
Control Panel
  • Start menu (Pic #1), auto mode menu (Pic #2), manual mode menu (Pic #3)
    1 2 3
Optional
  • 4 channel automatic suspension slurry feeder is recommended
  • Automatic mounting press for metallographic sample preparation (Click Pic #2 for details)
  • Consumables for lapping/polishing, such as sandpaper discs (Pic #4), polishing pads (Pic #5), magnetic & buffer steel plates (Pic #6) and diamond polishing paste (Pic #7), can be ordered at MTI
1
 2
 3 4 5 6 7
Size
  • 660 mm L נ460 mm W נ760 mm H
Net Weight
  • 125 kg
Shipping Weight & Dimension
  • 156 kg (345 lbs), 1220 mm L x 1020 mm W x 1090 mm H (48" L x 40" W x 43" H)
Operation Demo Video

Compliance
  • CE Certified
  • NRTL certification is NOT available temporarily.

Warranty
  • One-year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty
  • Polishing machine applications
