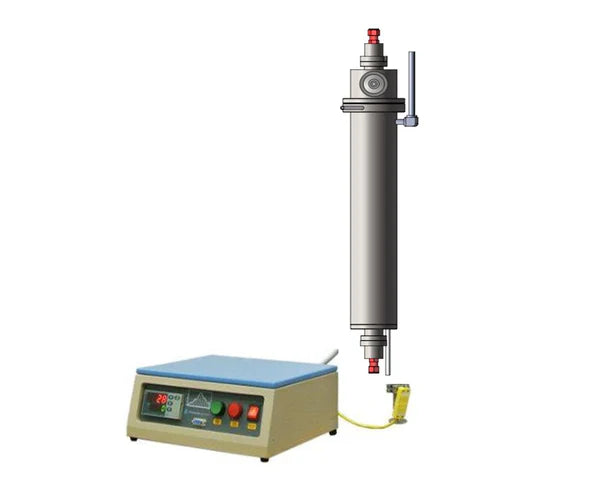

1100℃ Max. 100mm O.D Tube Furnace for High Magnetic Field - GSL-1200X-MH100

• 208 - 240VAV or 480VAC, 3 ph, 50/60Hz, 10 kW


 Working Temperature

• 1100 ℃, continuously
• Optional: 1400°C continuously with an alumina tube

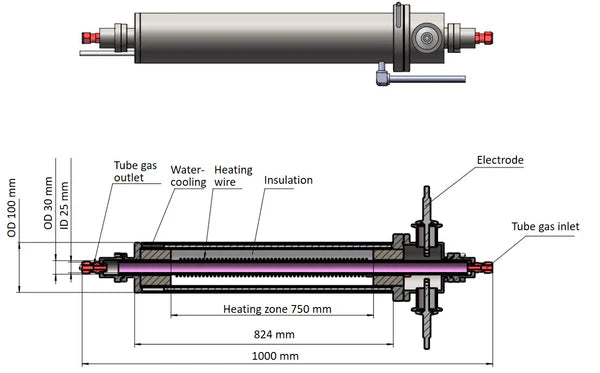

Heating Area

• 750 mm heating length
• 250 mm @ ±5 °C uniform heating zone

Heating Rate

• Heating rate: ≤ 10 ℃/min

Temperature Controller

• PID programmable temperature controller
• 50 programmable segments
• Overheating and TC failure alarm
• Temperature control accuracy: +/- 1 °C
• RS485 remote communication interface


Thermocouple

• S type thermocouple

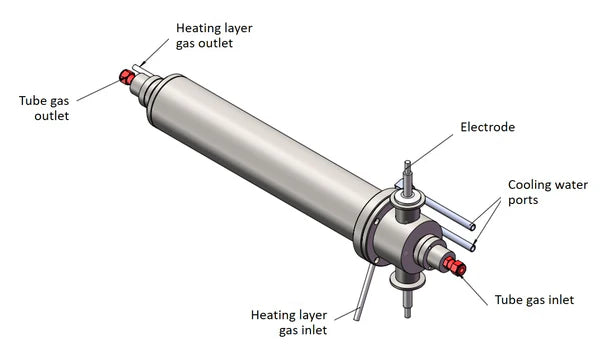

Processing Tube

• Ø30 × Ø25 × 1000 mm quartz tube

• A pair of SS316 flange for hermetic operation.
• 1/4" compression tube fittings (SS316) for gas inlet and outlet


• < 3 psig

DC Power Supply

• 10 kW DC programmable power supply
• Regulated power output 0-24VDC

Chilled Water

• Water cooling is required to keep the furnace surface temperature <25°C
• MTI highly recommend getting a KJ5300 recirculating water chiller or equivalent

 Vacuum Pump

 (Optional)

• Vacuum pump is optional to quickly evacuate residual air in the processing tube.
• 50 mtorr can be achieved by a mechanical pump

 Gas Plumbing

(Optional)

• Schematic gas diagram is recommended as below
• Gas plumbing system is optional.
•
  ,


• CE Certified
• NRTL certification is available upon request.
