2L Air-Tight Volumetric Feeder with Build-in Agitator & Stainless Steel Hopper- PF-1S

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

2L Air-Tight Volumetric Feeder with Build-in Agitator & Stainless Steel Hopper- PF-1S

MTI

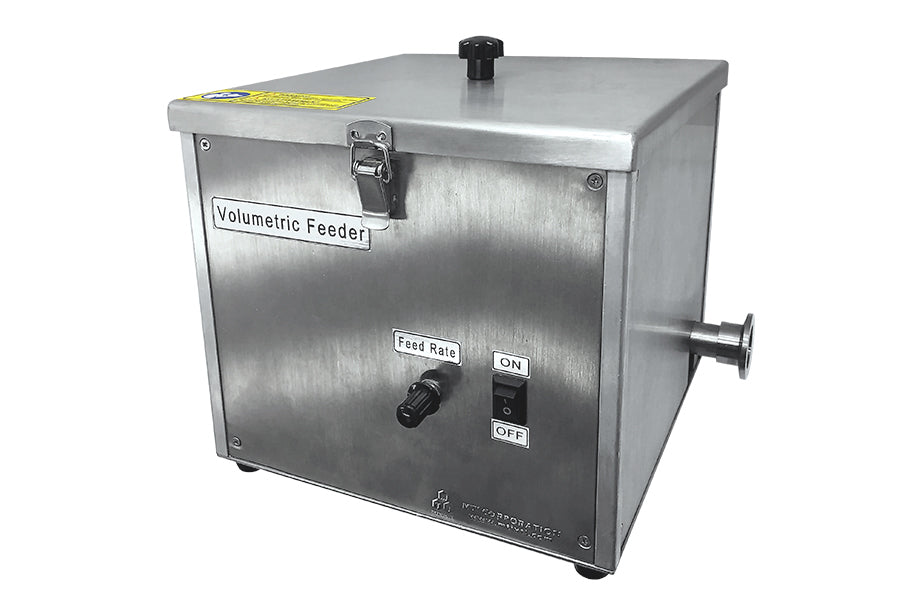

EQ-PF-1S is an air-tight automatic solid powder feeder that includes a motor-driven agitator and stainless steel hopper with a built-in vibrator. It is designed for feeding solid powder into a furnace for continuous firing/heat treating with air-tight. The material is conditioned to a uniform bulk density, evenly filling the flights of the feed screw, eliminating rat-holing and bridging which can cause clogging and buildup of materials.

Note: Upgraded feature - timing control for the external vibration device is added in June 2016.

Features

  • Stainless steel hopper with the vibrator.
  • Feed rate adjustable by the potential knob at the range  0 - 97 ml /min max.
  • 28'' long feed screw for efficient power delivery. Note: The customer may cut the feeding screw into a shorter length if needed.
  • KF25 material delivery port
  • Torque value: 4.45 N.m
  • Max. pressure: 1 psig  (High-pressure powder feeder up to 5 bar is available at the extra cost).

    Power
    • Single Phase 208~240VAC, 200W Max.
    • 24VDC motor driving.

    Dimension
    • Outside Dimensions: 220mm L x 220mm W x 202mm H
    • Hopper Opening: 180mm x 180mm
    • Normal capacity:   2 Liter

    Warranty
    • One year limited warranty
    • NRTL certification is available upon request.

    Shipping Weight & Dimensions
    • Two Packages
    • 3 lbs, 36"x5"x5"
    • 19 lbs, 18"x14"x14"

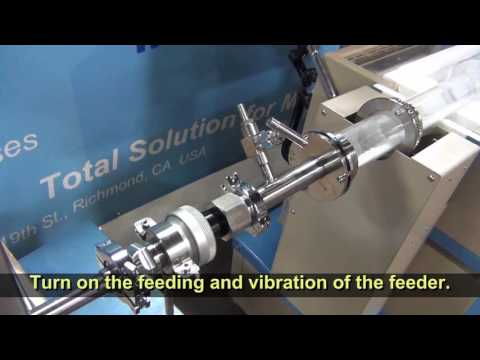

    Operation Demo Video



    Application Note

    Feeder-Tube Furnace Assembly
    • You may connect this feeder with a rotation furnace to achieve solid powder feeding automatically (pic.1).
    • In order to keep solid powder flow into the processing tube smoothly under a controlled atmosphere, you may need a tube flange with a KF25 opening (pic.2)
    • Powder grain size shall be around 200 mesh.
     Pic. 1  Pic. 2
