4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

4 Liters Precision Slurry Feeder with PROGRESSIVE CAVITY PUMP for R2R Slot Die Coating - MSK-156

MTI

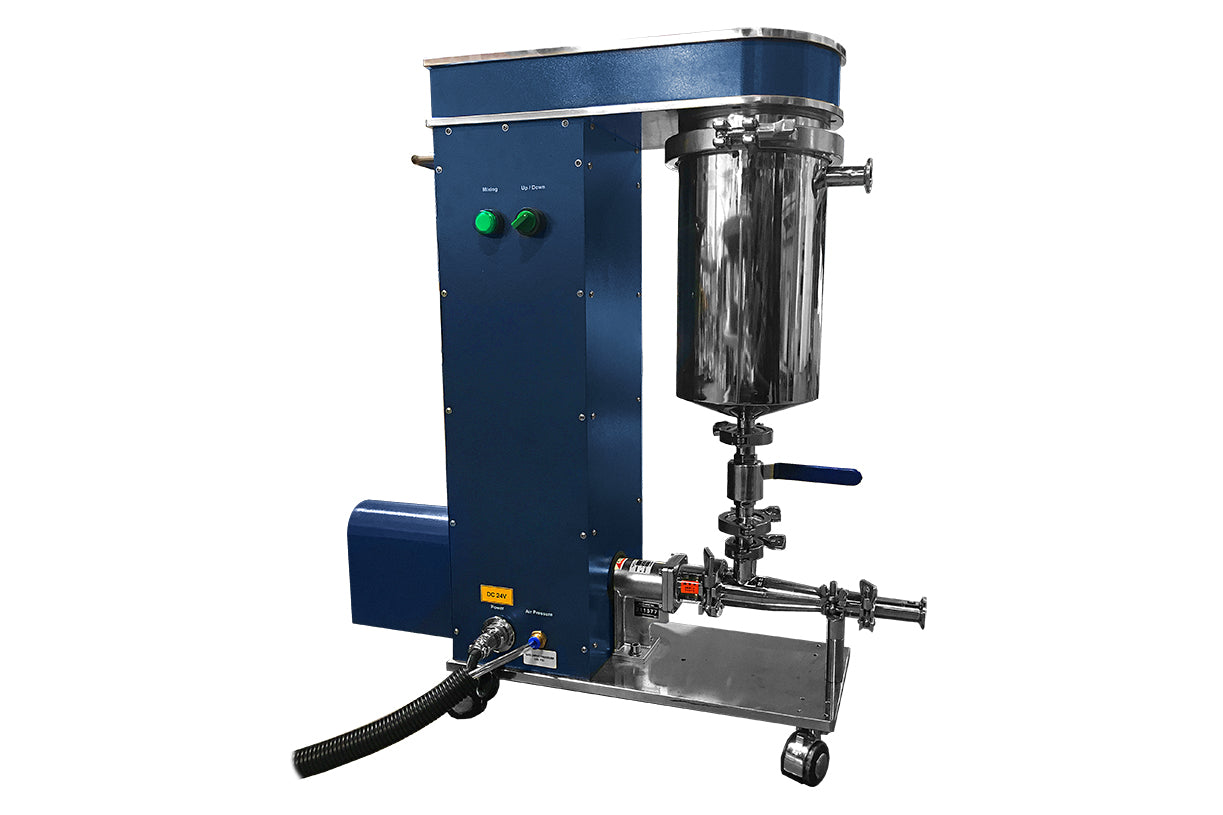

MSK-156 is an automatic slurry feeder with a screw pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coating system MSK-AFA-DS300 for the Li-ion battery electrode coating process.

Features
  • Screw pump for high viscosity slurry feeding.
  • Pneumatic airtight slurry reservoir.
  • Corrosion-resistant pipeline compatible with any acidic, alkaline slurries

Power Requirement
  • AC 220V +/- 10% Single phase
  • 500W Max.

Compressed Gas Requirement
  • 0.5~0.8MPa compress gas is required.

Feeding rate
  • 5.2 to 186 mL/min, adjustable
  • Stirring Speed: 27RPM Max

Slurry Reservoir
  • 4L Volume, 304 stainless steel
  • The stator is made of EPDM.
  • The rotor is made of SUS316

NMP Compatible
  • It is compatible with NMP

Application Note

 This slurry feeder is meant to be used with roll-to-roll web coaters MSK-AFA-DS300.
Please contact us to check its compatibility with other products.
Please click pic 1 below to see the vacuum mixing for roll to roll coating flow chart
