MTI  |  SKU: MSK155H

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

€5.284,25

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Auto Slurry Feeder w/ Two 2L Tanks and Optional Heating Function for Roll-to-Roll Coater - MSK-155

MTI

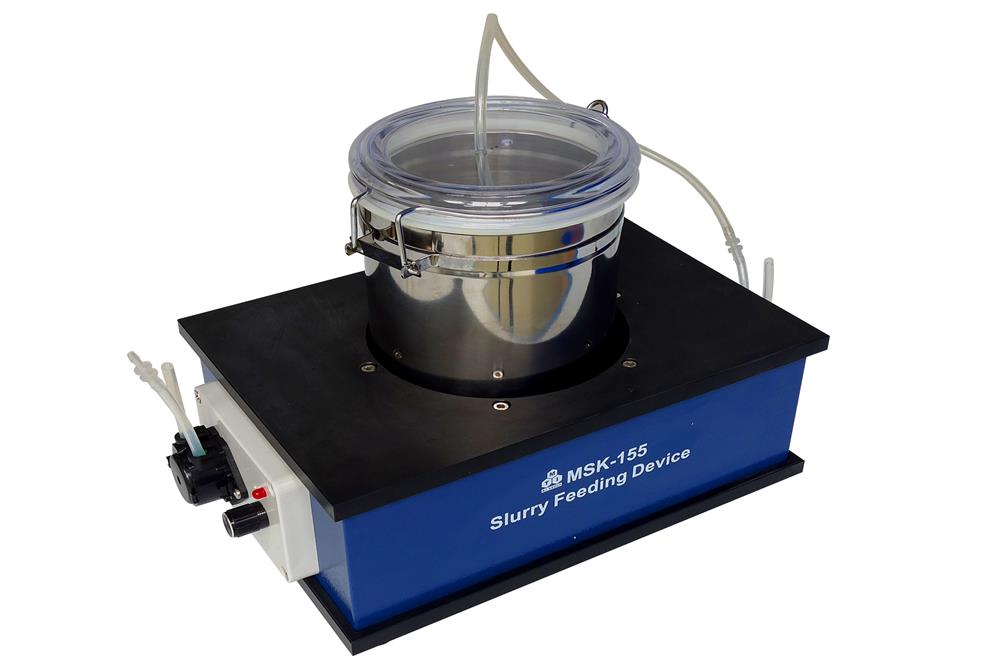

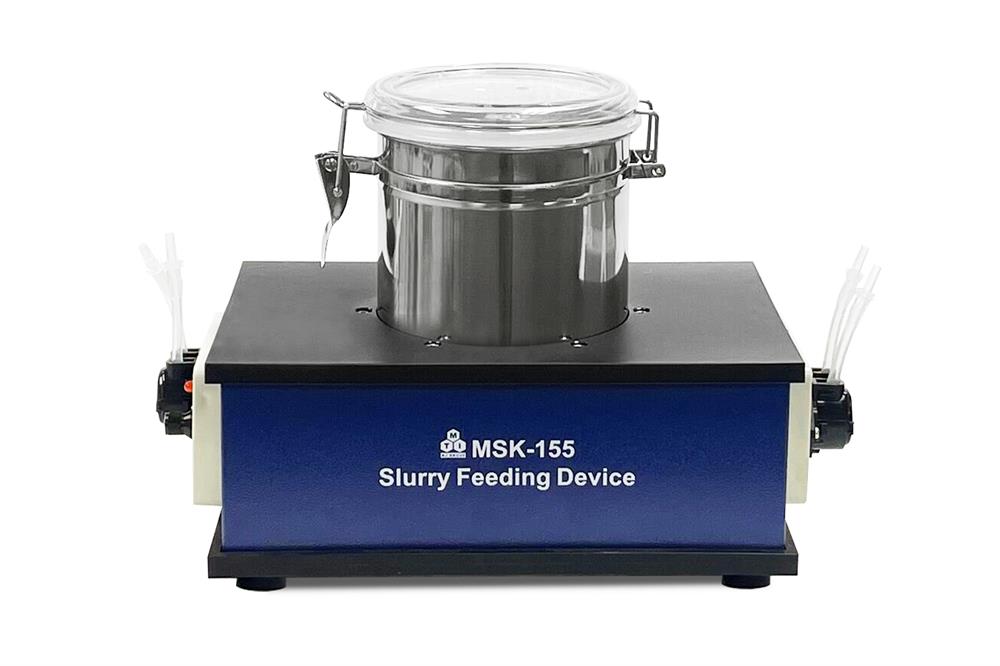

MSK-155 is an automatic slurry feeder with peristaltic pump and stainless steel reservoir. It is designed for use with MTI Roll-to-Roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 for Li-ion battery electrode coating process.

Features
  • Peristaltic pump for precise slurry feeding rate control.
  • Compact design with two sets of stainless steel reservoirs and peristaltic pumps prevent cross contaminations between cathode and anode slurries.
  • Corrosion resistant pipeline is compatible with any acidic, alkaline slurries

Power Requirement
  • 110~240VAC +/-10%, 50/60Hz
  • 100W Max.

peristaltic pump
  • Two sets of peristaltic pumps can delivery

Feeding rate
  • 1965ml/min, adjustable

Slurry Reservoir
  • 2L Volume, 304 stainless steel

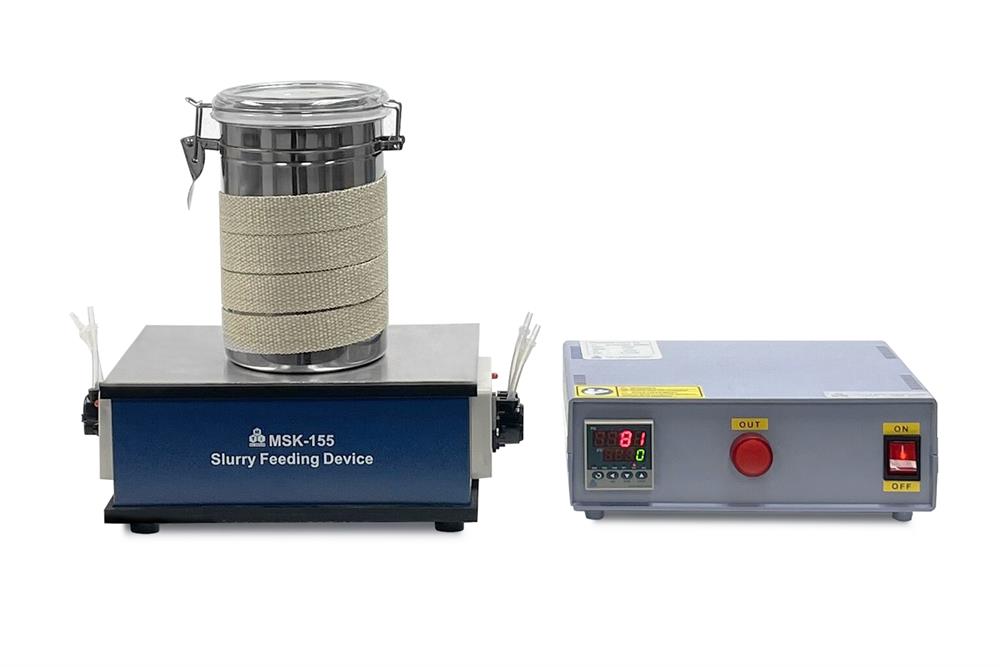

Temperature Controller (Optional)
  • The controller uses PID via SSR power control
  • Single-point setting controller
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.

Application Note

 Such a slurry feeder can be used with roll-to-roll web coaters such as MSK-AFA-E200 and MSK-AFA-EI300 to achieve higher product efficiency.
