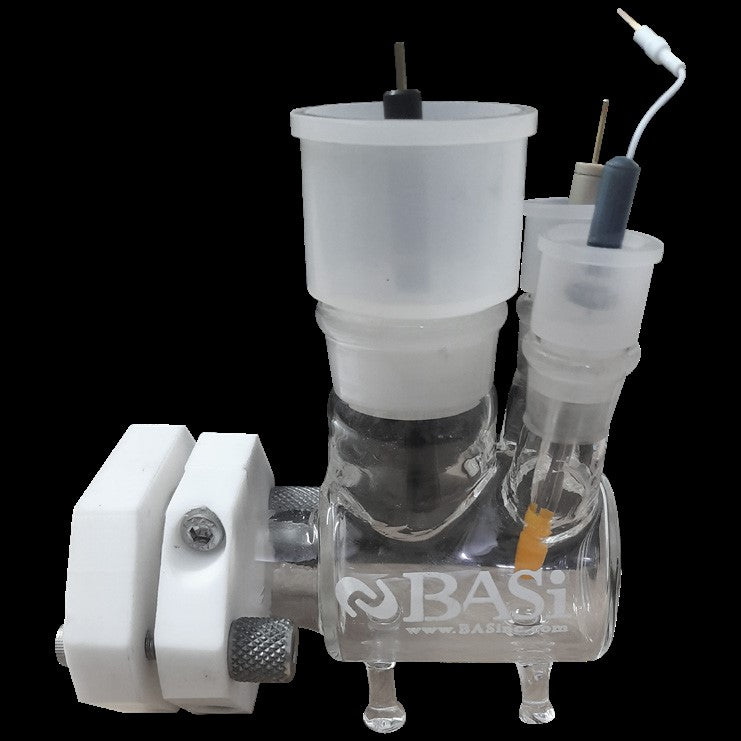

IP-PECUWC50_230298_Fully_Equipt+Photo-Electrochemical_Cell_Set-Ups

The IP-PECUWC50 is a fully equipped, horizontally mounted and a single
compartment kit with an additional quartz window (light input port diameter:
20 mm), water recirculation coil and black acrylic box with lid for studies in
photo-based electro-catalysis such as Hydrogen Evolution Reaction (HER), Each
compartment is capable to hold 50 mL of electrolyte.
Oxygen Evolution Reaction (OER), and more. The construction is gas-tight
having two separate chambers, each equipped with gas inlet and outlet. This
allows bubbling the solution and evacuating gases. Chambers can be separated
with an ion-exchange membrane (DuPont’s Nafion® membrane – not included in
the price), so the electrochemical products appearing at working and counter
electrode do not affect the opposite electrode. Set-up is compatible with a
power source meter or a Potentiostat / Galvanostat.

PDF Datasheet
