Dehumidification System & Water Chiller for Movable Dry Room of 45 SM - MSK-ADS-6000

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Dehumidification System & Water Chiller for Movable Dry Room of 45 SM - MSK-ADS-6000

MTI

The dehumidification system MSK-ADS-6000 and the water chiller SDA-3025 are designed for a customized dry room system with a 45 square meters maximum (3m*15m) area and a dew point < -40ºC ( Max. Three persons with protective cloth). The entire set of pouch/cylinder battery cell line would be launched in the dry room.

SPECIFICATIONS

Features
  • The dry room system consists of a dehumidifier, a recirculating chiller, and a sealed room modified by a greenhouse(ordered separately)
  • Can be installed without a construction contractor, and moveable by yourselves
  • Dew Point: -40ºC ? ~ 79 ppm) under the condition that has no de-gas or de-vapor equipment inside and measures in the center of the dry room with one operator.
  •  31.8 kW for dehumidifier / 23 kW for water chiller
  • The dry room shall be placed in an air-conditioned room with a temperature < 26oC, and humidity < 60%
  • Flexible to choose dehumidifier and water chill for DIY your own dry room
 Dry Room

  • 45 square meter or smaller dry room is available upon request

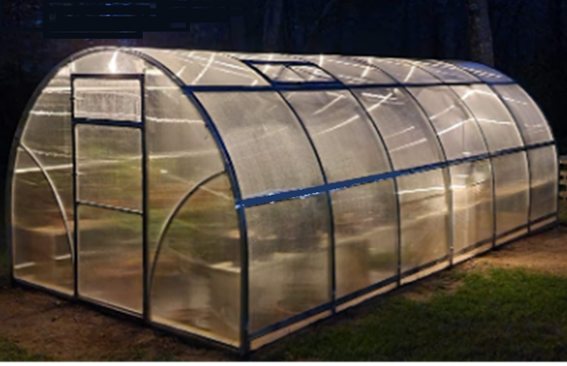

  • A greenhouse can be used to make a dry room by DIY. You can buy it from Amazon and modify it into a sealed room DIY
  • Dimension: W3,000 mm x L15,000mm* x H 2,100mm
  • Three gas inlet ports ( 8" diameter ) and outlet outs ( 6") are included

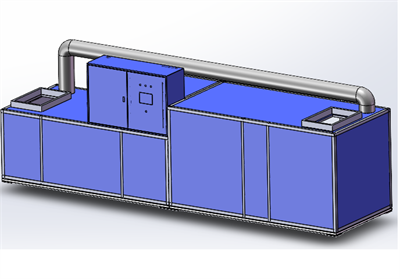

Dehumidifier
MSK-ADS-6000EP40S
Air flow volume: 6,000 cmh
Fresh dry die flow:  571 cmh
Dew point:   < -60 oC in empty room , < -40oC with three persons (protective cloths) within 30 minutes
Recirculating cooling water: ? 7oC required
Power consumption:  31.8 kW
Dimension:    L5,000mm * W1,400mm * H1,850mm
Weight? 2,200 kg
Water Chiller
SDA-3025

One recirculating water chiller is included

Refrigerating capacity? 61,920Kcal/h?72 kW?
Water flow rate:  800 liter/minute
Water tank capacity? 260L
Temperature range:  5 - 35oC  adjustable
Water pipe? 2” diameter
Dimension? L2,000 mm x W1,100 mm x H2,100 mm
Weight:    ~ 1,100Kg
Power Consumption:  23 kW
Power requirement
  • Dehumidifier MSK-ADS-6000EP40S: AC 220 V +/- 10%, 50/60Hz, Three phases(4 wires)
  • Water Chiller SDA-3025: AC 220V, 50/60 Hz, Three phases(4 wires)
  • 31.8 kW for dehumidifier / 23 kW for water chiller
Noise level
  • < 55 dB
Note and Warning
  • Must wear Clean room clothes to enter the dry room as shown in the picture left for quick recovery of dew point
  • Please keep the cloth inside the dry room to keep it dry.
  • Please allow 20 - 30 minutes to recover the dew point to -40 C when one person enters the dry room
