Ultrasonic Kneading Machine for Cylinder Cell 4680 - 46120 Current Collector - MSK-UM-2000W-RP

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

Ultrasonic Kneading Machine for Cylinder Cell 4680 - 46120 Current Collector - MSK-UM-2000W-RP

MTI

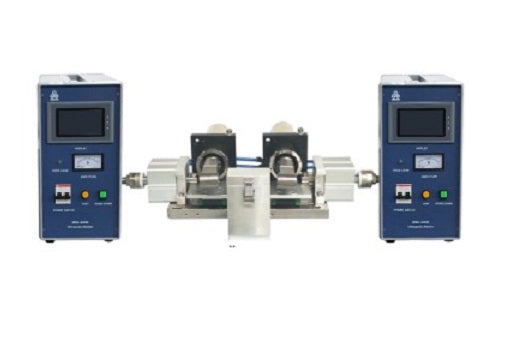

MSK-UM-2000W-RP is a CE Certified ultrasonic kneading machine. It is designed to blend the cylinder cell 4680 - 46120 current collectors after jelly roll winding. Once the current collectors become flat and smooth, it is good for the laser welding afterward.

SPECIFICATIONS:
Features
  • For the Cylinder Cell 4680 - 46120 jelly roll, the current collectors are still in the vertical position after the winding

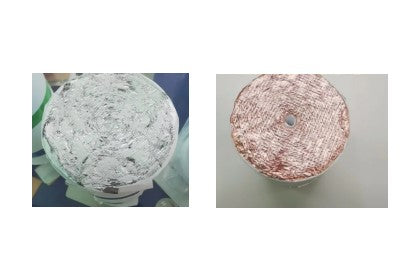

  • This ultrasonic kneading machine is used to blend the current collectors and make the current collector smooth and flat with the jelly roll holder
  • Current collector kneading is good for the laser welding
Input Voltage
  • AC 220V +/-10%, 50/60Hz
Max. Power Consumption
  • 2,000W * 2
Kneading Area
  • Diameter: 46 mm
Kneading Time
  • 0.01 - 1 second adjustable
Jelly Roll Holder
  • The Cylinder 4680 - 46120 Jelly Roll holder is included.
  • The size of the slot on the sample holder can be customed, please contact MTI for more information.
Ultrasonic Frequency
  • 20K Hz
Pneumatic Control (Not included)
  • Air pressure of 72-116 psi is required for the operation of the Compressor(Air Compressor is not included. Please click here to order)
  • Working pressure display on the machine: 15-101 psi
  • Attention: If a gas cylinder is used instead of the air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn about the installation of a gas regulator.
           pic1                pic2
Product Dimensions
  • Kneading Stage 1,200 mm (L) x 500 mm (W) x 370 mm (H)
  • Controllers: 400 mm (L) x 210 mm (W) x 550mm (H)
Net Weight
  • ~ 120 kg
Compliance
  • CE Certified
Warranty
  • One Year limited warranty with lifetime support
Operation Manual & Video
