MTI  |  SKU: LAOc101005S1

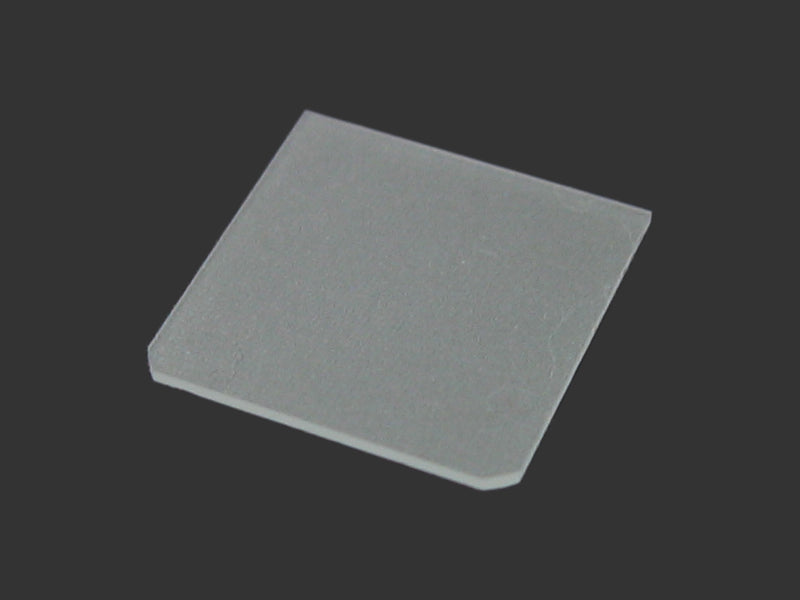

LaAlO3, (111) 10x10x0.5 mm substrate, 1 side Epi polished - LAOc101005S1

€75,69

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

LaAlO3, (111) 10x10x0.5 mm substrate, 1 side Epi polished - LAOc101005S1

MTI


Substrate Specifcations:

  • Wafer Size:     10 x 10 x  0.5 mm thickness +/-0.05 mm
  • Wafer Orientation:   (111) +/-0.5 Deg
  • Polishing:   One side CMP polished with free sub-surface damaged
  • Surface finish (RMS or Ra) :  < 10A
  • Package:    Under 1000 class clean room, and in 100 grade plastic bag in a wafer container.
  • Lattice Constant   a=3.792ŠPseudo cubic
  • Warning: LaAlO3 crystal  has a visible twin on a polished surface, which is normal nature .
