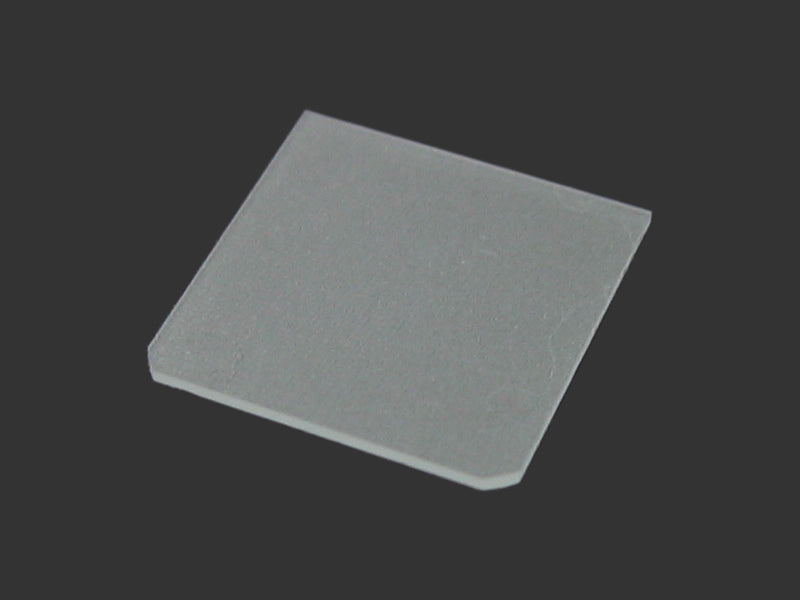

LaAlO3, (110) 5x5x0.5 mm substrate, two sides Epi polished

MTI


Substrate Specifcations:

  • Wafer Size:     5 x 5 x  0.5 mm thickness +/-0.05 mm
  • Wafer Orientation:   (110) +/-0.5 Deg
  • Polishing:   Two sides CMP polished with free sub-surface damaged
  • Surface finish (RMS or Ra) :  < 15A
  • Package:    Under 1000 class clean room, and in 100 grade plastic bag in a wafer container.
  • Lattice Constant   a=3.792ŠPseudo cubic
  • Warning: LaAlO3 crystal  has a visible twin on a polished surface, which is normal nature .
