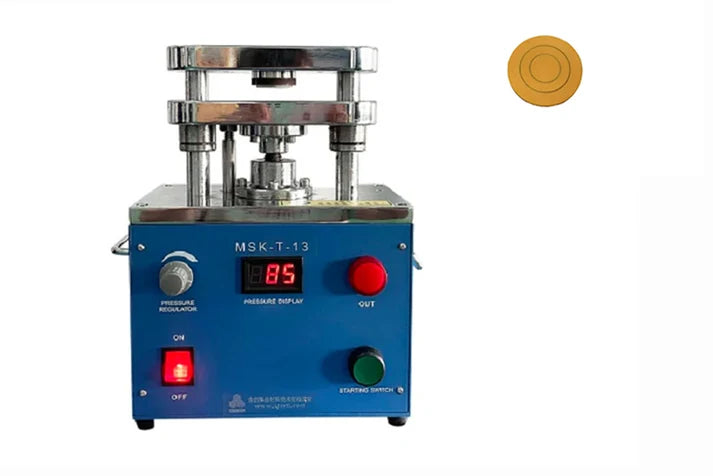

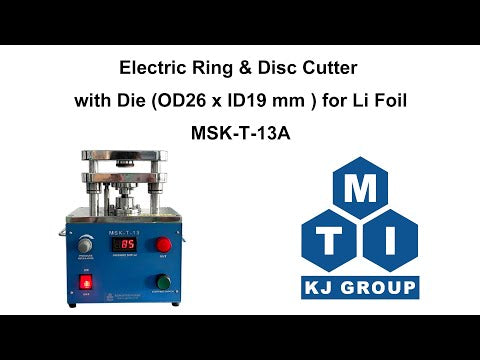

Ring & Disc Cutter with a Die (OD26 x ID19 mm ) for Li Foil w/ optional pouch Cell Die - MSK-T-13A

MSK-T-13 is a compact electric ring cutter, which is designed for cutting the ring from lithium foil to fit MTI Three-Electrode Split Test Cell. It also can cut round disc and rectangular type sheets from Li, Al, and copper foil with an optional cutting die. T-13 cutter is driven by DC motor and compatible with Ar gas environmental. , it is compact enough to be put into a glovebox through its Antechamber

SPECIFICATIONS:

Power	110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
Pressure	The cutting pressure is adjustable with a digital display Pressure 0 - 1400 kg Note: Display unit is %, not force value For cutting Li, copper, and Al only
Cutting Die	One ring type of cutting die is included for cutting ring with OD 26 mm x ID 19 mm The ring is fitted into MTI Three-Electrode Split Test Cell.  The customized die is available for cutting single or multi-discs and rectangular sheet at the extra cost         Round disc: ?60mm         Multi-disc cutting within 80x60 mm         Rectangular sheet within 80*60m
Compliance	CE certified NRTL or CSA certification is available at the extra cost
