MTI  |  SKU: CR2016KAP2S

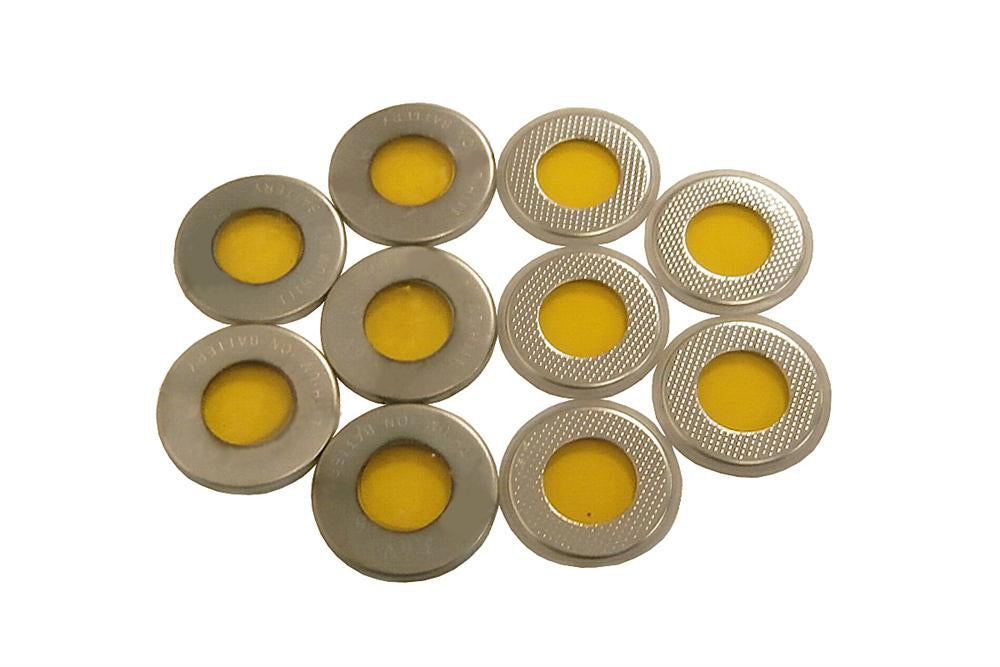

CR2016 Case with Two Sides Kapton Windows - 5 pairs/pkg-CR2016-Kapton-2s

€270,25

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

CR2016 Case with Two Sides Kapton Windows - 5 pairs/pkg-CR2016-Kapton-2s

MTI

EQ-CR2016-Kapton-2s is special CR-2016 coin cell casing with two sides of 10mm Kapton windows to achieve a full penetration of in-situ neutron diffraction This design creates the possiblity to analysis of battery material phase variations during charging and discharging.
  • 5 pairs of CR2016 casing per pakcage
  • Kapton windows (10mm dia.) in both sides of CR2016 battery casing to ensure a full X-Ray beam penetration.
  • PP (Polypropylene) sealing O-ring.
  • Compatible with MTI's MSK-110 crimper



Specifications
Kapton window thickness 0.18mm

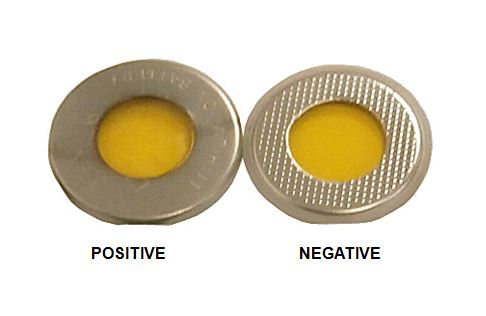

Coating Positive side of casing is coated with aluminum
Al coating thickness < 0.01mm
Cell Assembling Structure & Instruction Manual

Application note
  • In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, please use carbon-based substrate as current collector instead of Al or Cu foil.

  • You may use lab press and dry pressing die below to preparate a electrode pellet instead of using electrode coated Al or Cu foil.
