MTI  |  SKU: Corning7980FS10010010S2opt

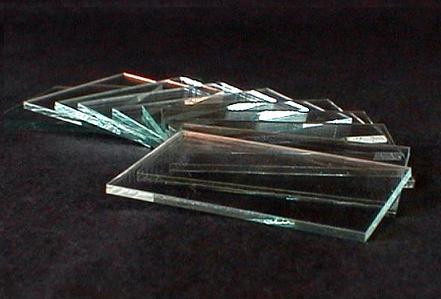

UV Grade Fused Silica Glass (Corning 0F 7980 HPFS) Substrate, 100.0 mm x100mmx 1.0 mm, 2 sides optical polished(60/40) - Corning7980FS10010010S2opt

€270,52

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

UV Grade Fused Silica Glass (Corning 0F 7980 HPFS) Substrate, 100.0 mm x100mmx 1.0 mm, 2 sides optical polished(60/40) - Corning7980FS10010010S2opt

MTI

  • UV Grade Fused Silica (Corning 0F 7980 HPFS)
  • Size:  100.0 (+/- 0.20) mm  x  100.0 (+/- 0.20) mm    x 1.0 (+/- 0.05) mm
  • Edge: Hand Seamed
  • Surface Quality: 60/40 or better
  • Clear Aperture: 90%
  • TTV: < 20 microns
  • Polishing:  Two sides optical polished
  • Surface Roughness:    =< 5 A
  • For the data of Corning 0F7980 HPFS,please click here.
