MTI  |  SKU: EQ-CC-NTA3

3mm Width Nickel Tab for Welding on Cylindrical Cell Electrode Strip, 50pcs/bag - EQ-CC-NTA3

€34,27

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

3mm Width Nickel Tab for Welding on Cylindrical Cell Electrode Strip, 50pcs/bag - EQ-CC-NTA3

MTI

3mm Width Nickel Tab as Negative Terminal for Welding on Cylindrical Cell Electrode, 50pcs/bag
 Material Nickel 99.99%

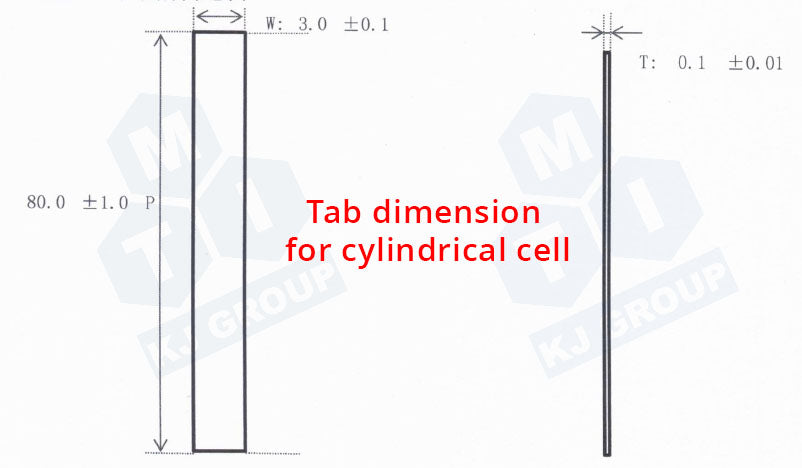

Length 80.0 ±1.0 mm
Width 3.0 ± 0.1 mm

Thickness

 0.1mm ±0.015 in Nickel Tab

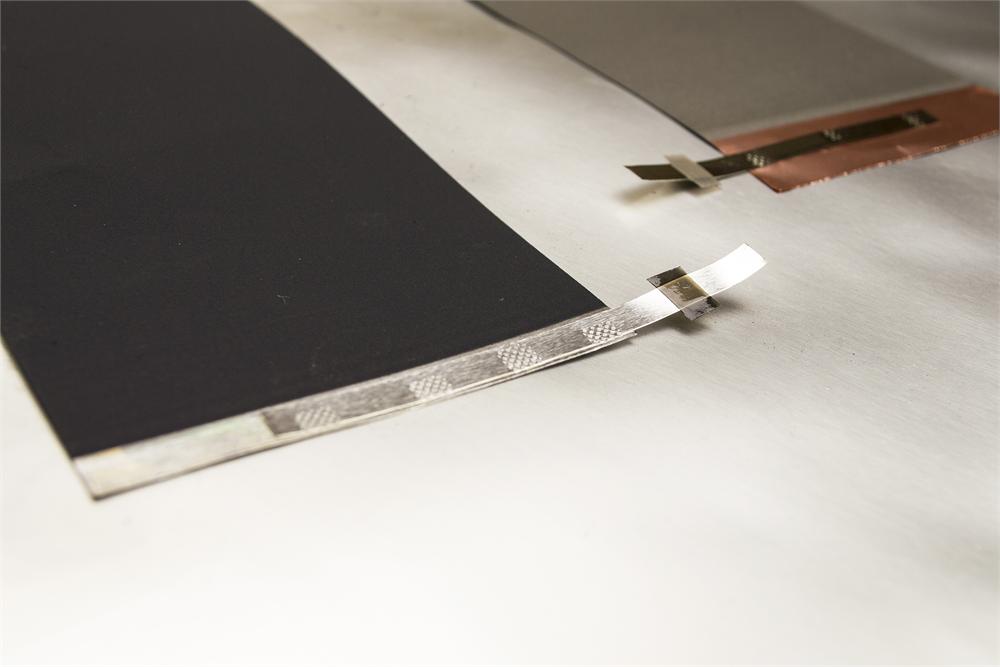

Application Weld on cathode current collector as battery negative terminal
Net Weight 160mg/pcs
Gross Weight 19.01g (Tabs with Bag)
Max. Loading Current 3A
