Programmable 1500 RPM Ultra Hi-Energy Ball Mill (Argon compatible) - MSK-SFM-3-F

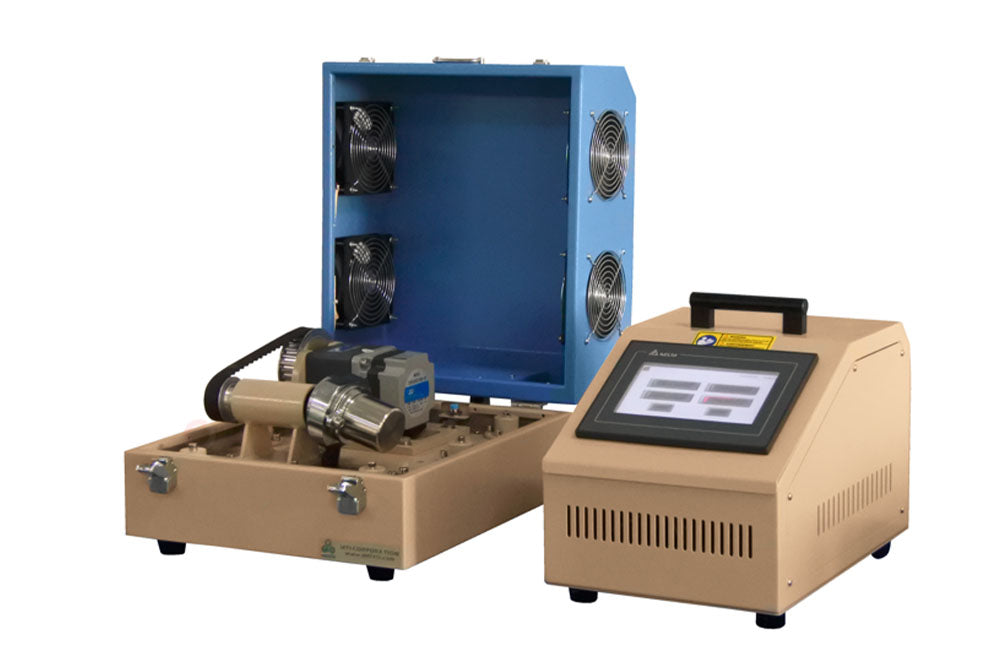

MSK-SFM-3-F is a high-energy 3D movement ball (rotation, vibration, and swing) mill with an adjustable speed of up to 1500 RPM and a maximum 75G centrifugal acceleration. This ball mill is driven by a DC motor and the control unit (program control) is separated from the main machine. (Glove box and Argon compatible

SPECIFICATIONS:

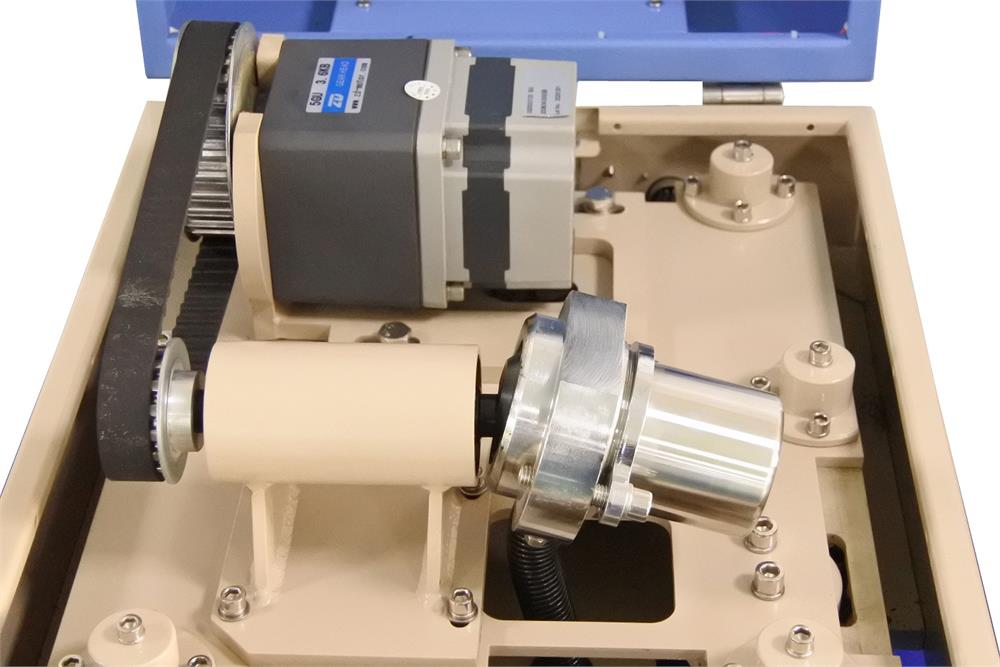

Features	The 24VDC motor allows use in an Ar gas environment.RPM with the separated control unit
Standard Milling Jars & Media	Two sets of the milling jars ( nylon & SS ) are included ( total 4 jars included ) One 80 ml nylon jar with Zirconia milling balls (5 pcs of ?10mm, 10 pcs of ?8mm, and 10 pcs of ?5mm) is included. ( click Pic. 1&2 to order spare ) One 80 ml Stainless Steel Jar with SS milling balls (5 pcs of ?10mm, 10 pcs of ?8mm, and 10 pcs of ?5mm) is included.  ( Pic. 3 &4) Option: High Throughput 4 Milling Cavities SS Mixing Jar is available as an option( click Pic. 5 to order) WC, Si3N4, and Zirconia  Jars also are available at an extra cost (Pic. 6 - 7 )             Pic. 1  Pic. 2  Pic. 3Pic. 4 Pic. 5Pic. 6 Pic. 7 Attention: Max. feeding capacity shall be: < 1/3 jar's volume, around 15 g for grinding sample
Power Input	Single-phase 110VAC or 240VAC 50/60Hz with The USA plug ( Change switch inside power supply ) Power consumption: 200 W
Control Unit	The separated control box for remote operation in a glove box or fume hood. ( If using inside the glove box, you need to order KF40 feedthrough at the extra cost) Speed control: 0 - 1500 rpm adjustable; Below 250 RPM may result in strong resonance frequency. Time control: 0 - 30 minutes adjustable  Five segments programmable via color touch screen for forwarding rotation, backward rotation, and running time                             The estimated acceleration gravity: ~ 75G
Feeding Granularity	? 1mm

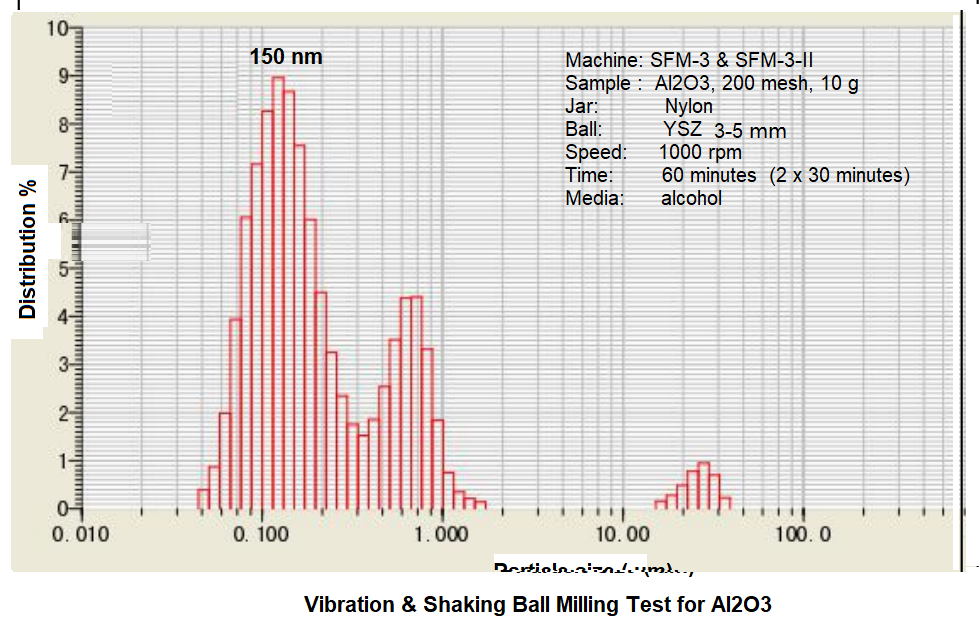

Discharging Granularity	0.1um minimum for oxide materials ( Mainly Al2O3 based on ceramic material )( See pic. left) Note: To achieve finer or desired particles via ball mill is a research project, which is dependent on the material to be milled, grinding time and speed, combination of grinding jar and milling ball, etc. It is the user's responsibility to find the best milling procedure based on the material. Buyers are welcomed to the MTI laboratory at California test before purchase.
Noise Level	87dBA
Optional Jars	Optional jar and grinding balls are available in the product options bar (click Pic below to order spares ) For a small amount of milling ( 1- 5 ml), pls use 4 cavity jar for hi-throughput milling
Compliance	CE Certified NRTI certification is available upon request at an extra cost

Accessories
Item No.	Descriptions	Qty	Picture
MSK-SFM-3-F	Main Machine	1 unit
EQ-MJ-80NL	80 ml Nylon Jar	2 ea
EQ-ZMball	Zirconia Mixing Balls (4 pcs of 11.5 mm, 10 pcs of 10 mm and 10 pcs of 8mm)	2 set
EQ-MJ-3-80SS	80 ml SS jar	2 ea
EQ-SS ball	SS balls (2pcs 20mm; 2pcs 15mm; 2pcs 12mm; 2pcs 10mm; 4pcs 8mm; 8pcs 6mm)	2 set
MTI-PJ-ACC#03	Sealing Gasket: OD 55mm, T 2.5mm	2 set
	Connection Cable with Feedthrough	1 ea
	M6 Hex Key	1 ea

   Consumables & Accessories (Click to view recommended spare parts list)
