MTI  |  SKU: HTVB50

Converting CO2 to Methane Atmosphere Controlled Vibration Ball Milling Reactor (500C @3 bar)- HTVB-50

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

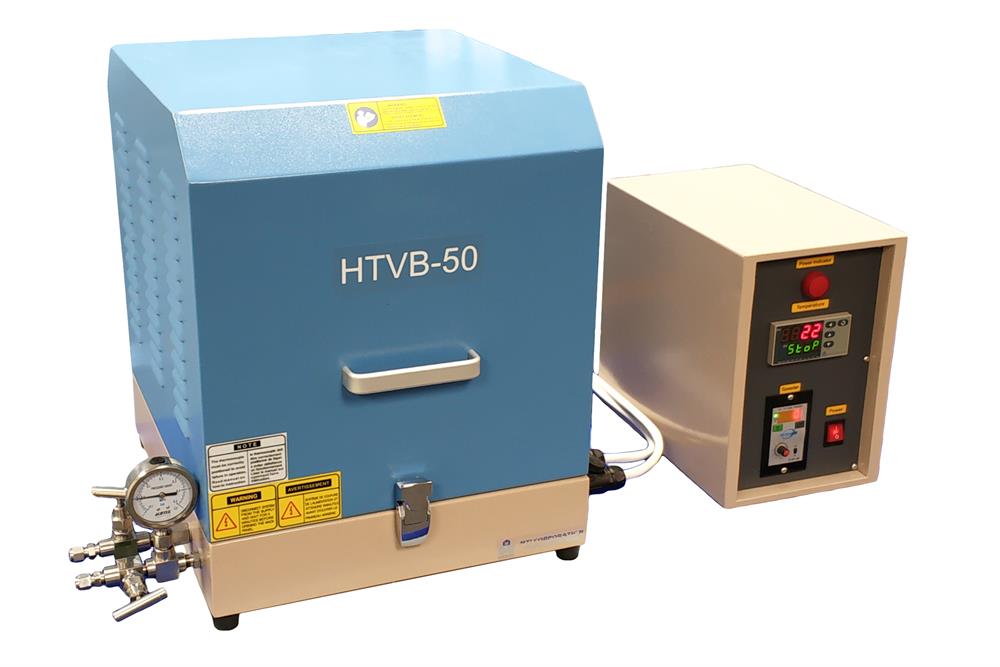

Converting CO2 to Methane Atmosphere Controlled Vibration Ball Milling Reactor (500C @3 bar)- HTVB-50

MTI

HTVB-50 is a compact high-temperature vibration ball mill with a gas delivery reactor, which can be heated up to 500ºC with a programmable temperature controller with accuracy +/- 1.0 ºC. It is an excellent tool for Mechanochemical activation of catalysts for CO2 methanation
For more applications using a ball mill, please review the article at https://doi.org/10.1002/anie.201810902

Specifications:
Power
  • 110 - 220 VAC, single phase 50/60 Hz
  • 1 kW max

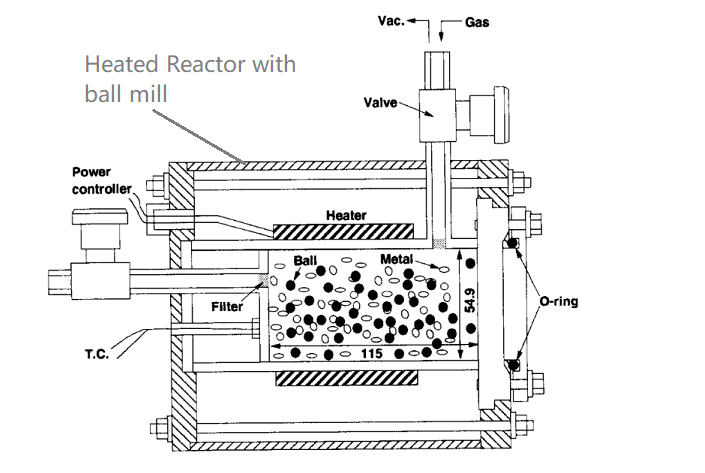

Heatable Reactor
(Milling Chamber)
  • The reactor is made of SS 304 with 55mm ID × 61mm OD × 100 mm Depth
  • Maximum material capacity: 200ml (Including balls and material)
  • The heating ring is on outside the reactor, which can be heated up to 500 ºC
  • Precision and programmable temperature control with +/- 1°C accuracy
  • Gas inlet and outlet (1/8") with valves are built into the reactor
  • A 1/4" thermocouple feedthrough is installed on the flange (Thermocouple is not included)
  • The reactor is installed on the vibration stage Max. The working pressure is 0.3 MPa. ( You must use a two-stage gas regulator to limit max. pressure from the gas cylinder )
  • Max gas flow rate: < 5L/minute
  • Flange connection: 8 - M8 x 18mm
  • Extra Copper Gaskets are available at the link below:
  • https://www.mtixtl.com/61mmO.DCopperGasketforConflatFlangeofOTF-1200X-HP-30A-EQ-ORing-Cu.aspx
Working Temp & Pressure
  • Standard: 3 bar Max. @ 500ºC Max.
  • Optional: 20 bar Max. @ 250ºC Max. at extra cost
  • 10 bar Max. @ 350ºC Max. at the extra cost

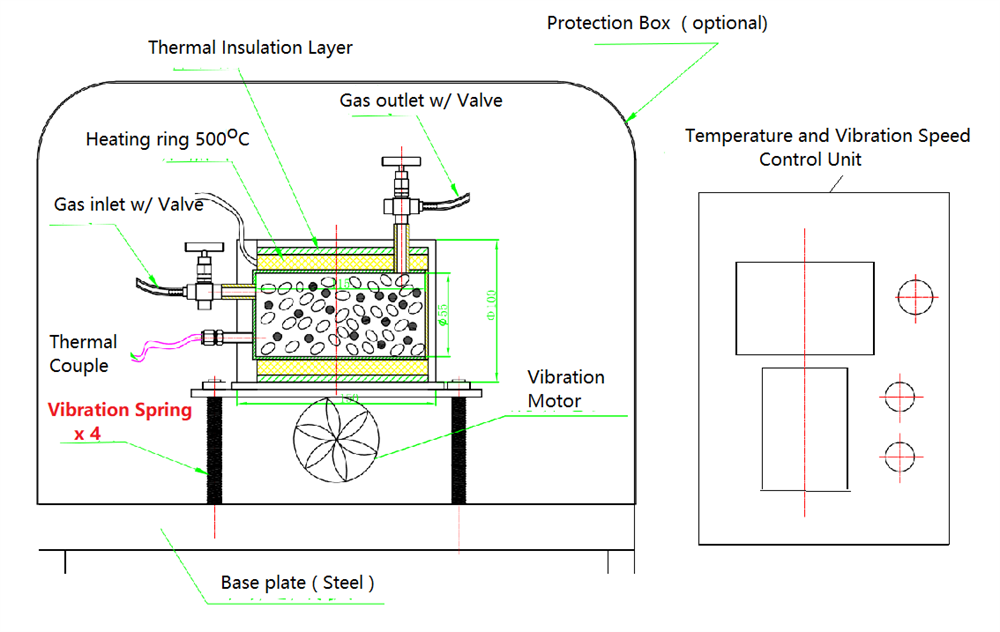

Vibration Stage
  • The vibration stage is driven by a 24V DC motor
  • The vibration speed is adjustable in terms of motor rotational speed 400 - 2000 RPM (6 - 33 Hz)
  • Max. Load: 20Kg
Milling Balls
  • A set of stainless steel milling balls (6 - 20 mm) is included.
  • Please click here to order additional stainless steel balls.
  • Please click here to order additional YSZ balls.
Control Unit
  • The control unit is separated from the reactor.
  • The unit controls both temperature and vibration speed.
Optional
  • The device can be operated inside a glovebox with Ar Gas.
  • If you plan to operate it in a glovebox, KF40 feedthrough may be needed to separate the control unit and reactor
Compliance
  • CE certified
  • NRTL certification is available upon request at the extra cost
Operation Video
Demo Video  Operation Video
