MTI  |  SKU: VBF-1700X-L8AX

1700 Max Automated Box Furnace / Bottom Loading ( 8 L) - VBF-1700X-L8AX

€0,00

Delivery and Shipping to EU

We will add in the quotation, the shipping, insurance, customs clearance costs.

1700 Max Automated Box Furnace / Bottom Loading ( 8 L) - VBF-1700X-L8AX

MTI

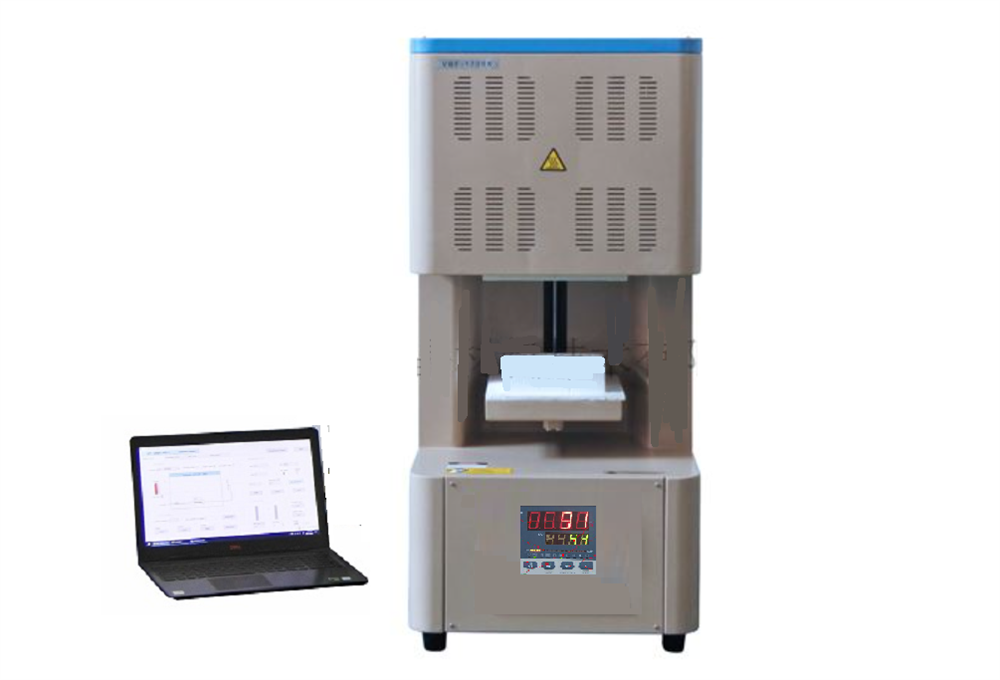

The VBF-1700X-L8AX is an automated bottom-loading muffle furnace with a maximum temperature of 1700, The furnace is operated by PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, and cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units up to 8 furnaces at the same time.

SPECIFICATIONS:

Furnace Structure
  • Dual-layer shell structure
  • High-purity alumina fiber material furnace chamber
  • One laptop computer is included for automatic operation
Power
  • Voltage: AC220V+/- 10% , 50/60 HZ
  • Power: 8 KW
  • A 3-meter power cable is included without a plug
Heating Chamber
  • 200 x200 x200 ( mm), ( ~ 8 x 8 x 8 ")
  • 8 Liter Capacity
  • Heating rate: ?10/min
  • Thermal couple: B type
  • Uniform zone: 150x150x150 mm in center within +/- 5oC

Working Temp.
  • Max. 1700oC < 60 minutes
  • Continuous Working Temperature 1600°C
  • Minimum temperature: 1100 °C
Temperature Control
  • PID automatic temperature control system
  • Intelligent 30-stage programmable control
  • Default DB9 PC communication connection port is built in for PC operation
  • Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation
  • One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, and cooling, and opening the door.
  • RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch

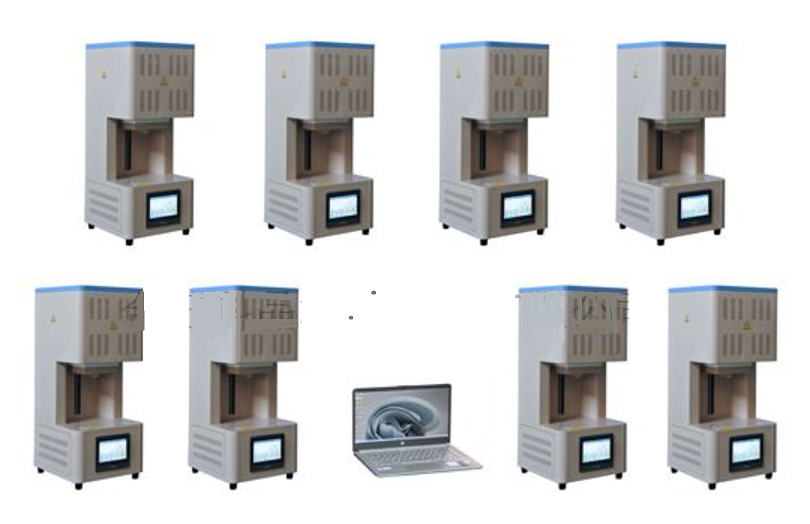

  • One computer can control multiple furnaces simultaneously
  • Equipped with ?6.35mm gas inlet (rear) and ?30mm outlet(top) ports which allow the introduction of inert gas into the chamber
Automation Collaborative Robot for sample loading
(optional)
  • Full automation with sample loading is optional via the integration with a robot arm.

Weight

 ~ 180 Kg

Compliance

 CE certified
NRTL or CSA certification is available upon request
